Range Of Motion - Brainlab Curve Dual Navigation Station System User's Manual

MONITOR CART
3.2.1

Range of Motion

Monitor Height
The monitors can be positioned:
• Approximately 1 - 1.5 m above the ground.
• With an rotation of 30° - 60° depending on the ideal height for the surgical set-up.
Cart Arms
• The lower arm can be rotated 330° around the Monitor Cart center joint with a restricted area
of 30° at the backside of the device.
• The upper arm, has a restricted area of approximately 90° between the two arms to prevent the
monitors from colliding, and to prevent possible user injury. Be aware that moving one arm may
also move the other arm when the restricted area is reached.
System User Guide Rev. 1.0 Curve Dual Navigation Station Ver. 1.2

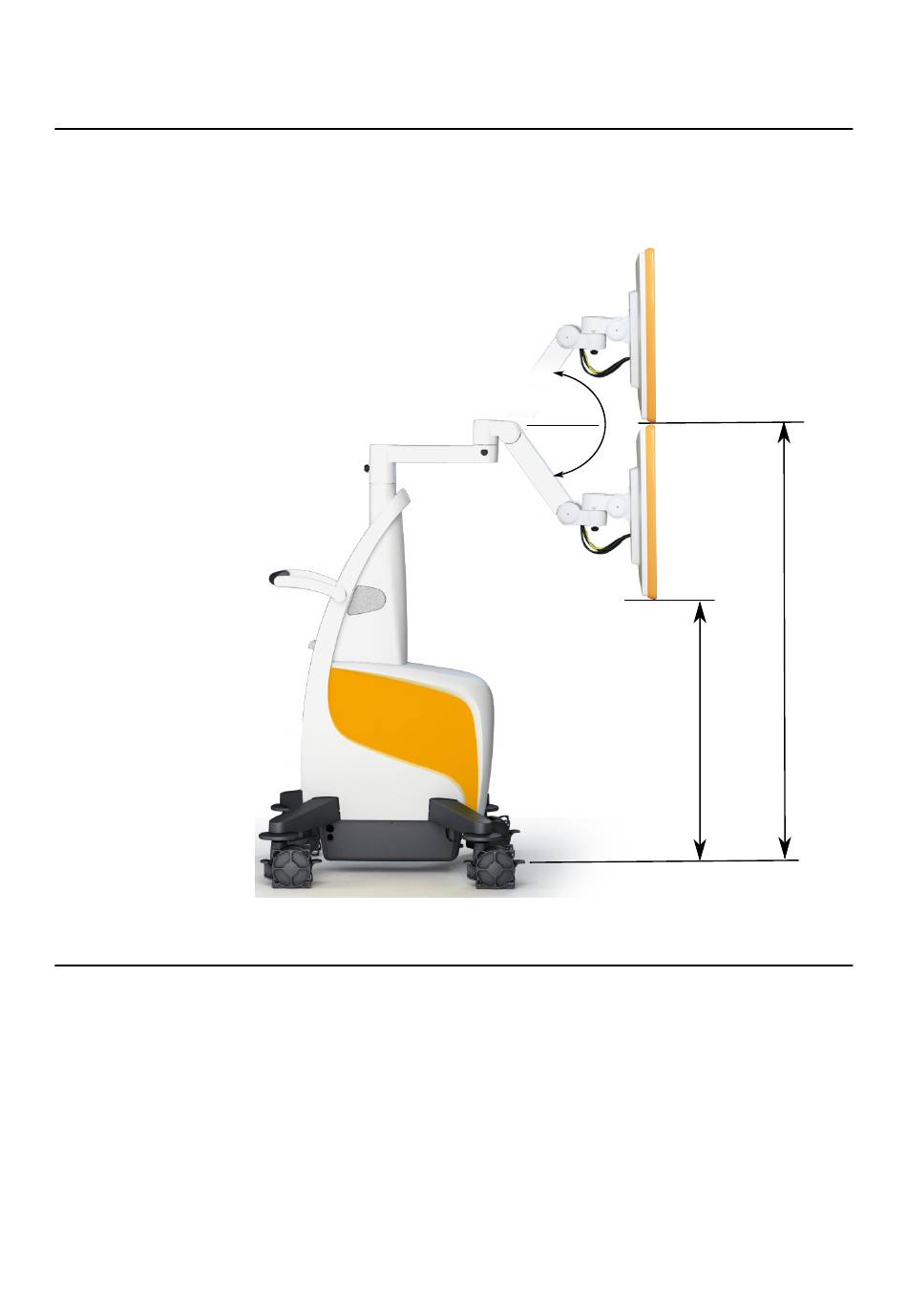

±50° (± 2°)
980 mm
Figure 9
1445 mm
