Parking and Storage
Steps
3.
4.
5.
6.
7.
8.

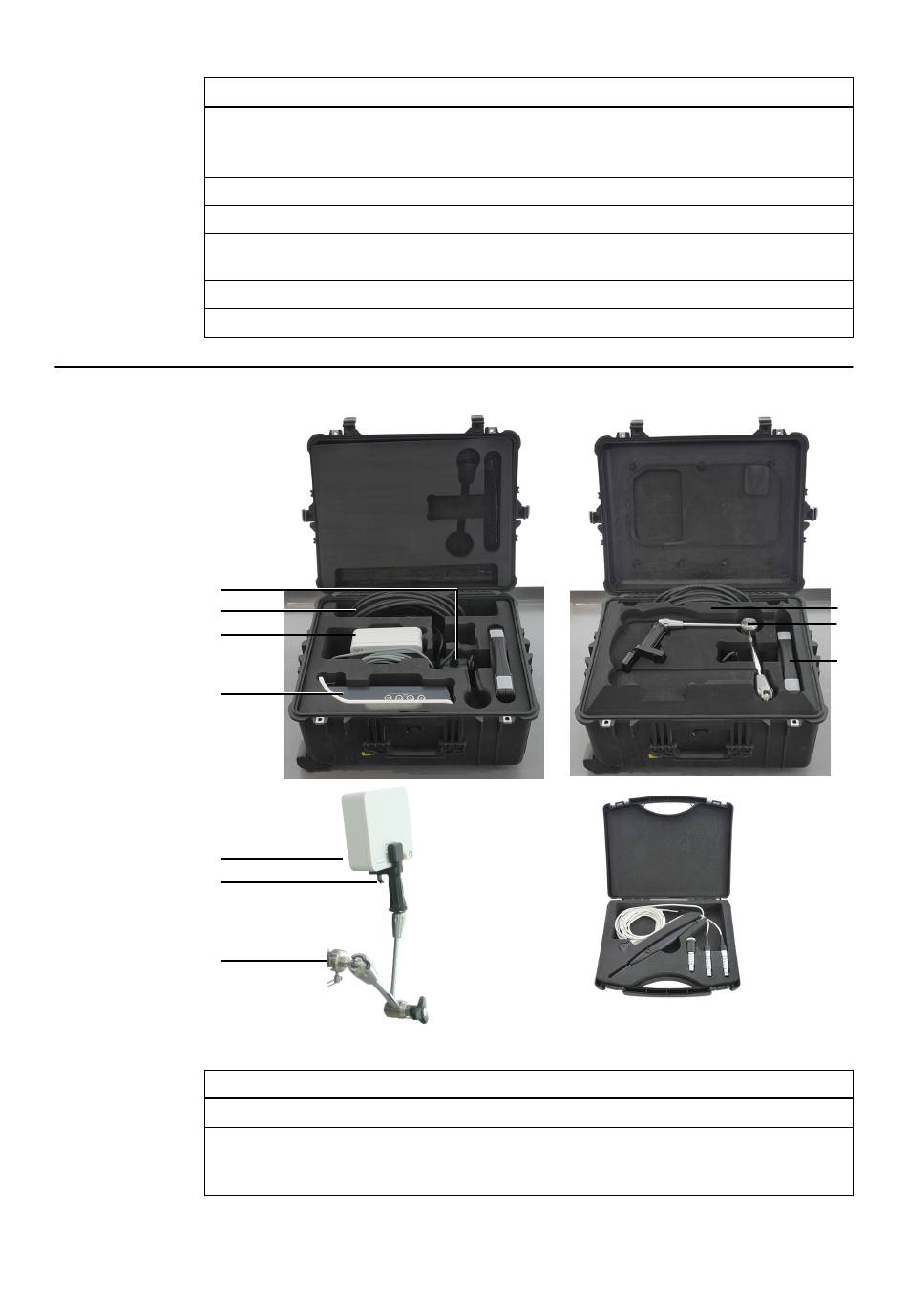

How to Pack the EM Tracking Unit with the Positioning Arm in Transport Cases
⑦
⑥
⑤
④
③
②
①
Steps
1.
2.
124
While holding onto EM Field Generator ③, pull the release mechanism ② on the EM
Field Generator Fixation Plate ① to separate EM Field Generator.
Store EM Field Generator in the bottom layer of the transport case ⑤.
Store all cabling in the bottom layer of the transport case ⑥.
Replace the top layer of the transport case ⑧.
Unfasten the Velcro straps of the EM Field Generator Fixation Plate and store in the top
layer of the transport case ⑨.
Put the unsterile instruments into the unsterile instrument case ⑪.
Place the unsterile instrument case ⑪ into the transport case ⑩.
Remove EM Base Station from the OR table.
Disconnect the EM Field Generator cable and both connectors of the EM cable from EM
Base Station.
Store EM Base Station in the bottom layer of the transport case ④.
Figure 61
System User Guide Rev. 1.0 Curve Dual Navigation Station Ver. 1.2
⑧
⑨
⑩
⑪
