Extron electronics TouchLink User Manual page 87

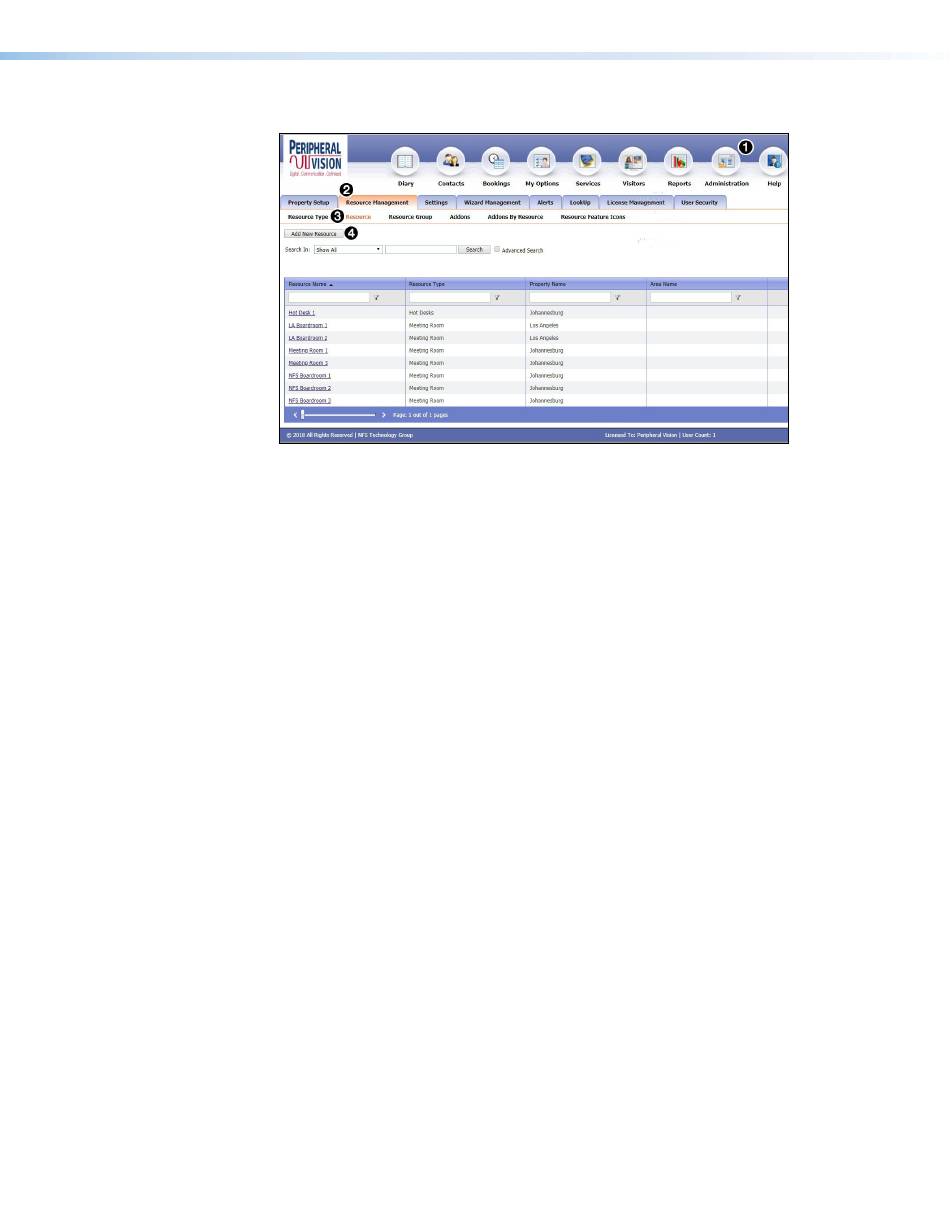

To add a new resource:
1. Log on to the NFS server.
2. Click Administration.
3. Select the Resource Management tab.
4. Select Resource.
5. Click Add New Resource.
6. Provide the required information.
Language — Select an option from the Language drop-down list (see
•
on page 87). By default, the language is English.
Languages
Button Sound — Select an option from the Button Sound drop-down list. The options
•
are Off and On. Button sound provides audible feedback when buttons are pressed on
the touchpanel. By default, it is on.
Panel Design— The layout of the panel can be configured using the Panel Design
•
tab. You can select one of the saved panel design files from this drop-down list.
Room Scheduling System • Rendezvous by NFS Setup
Supported
81
