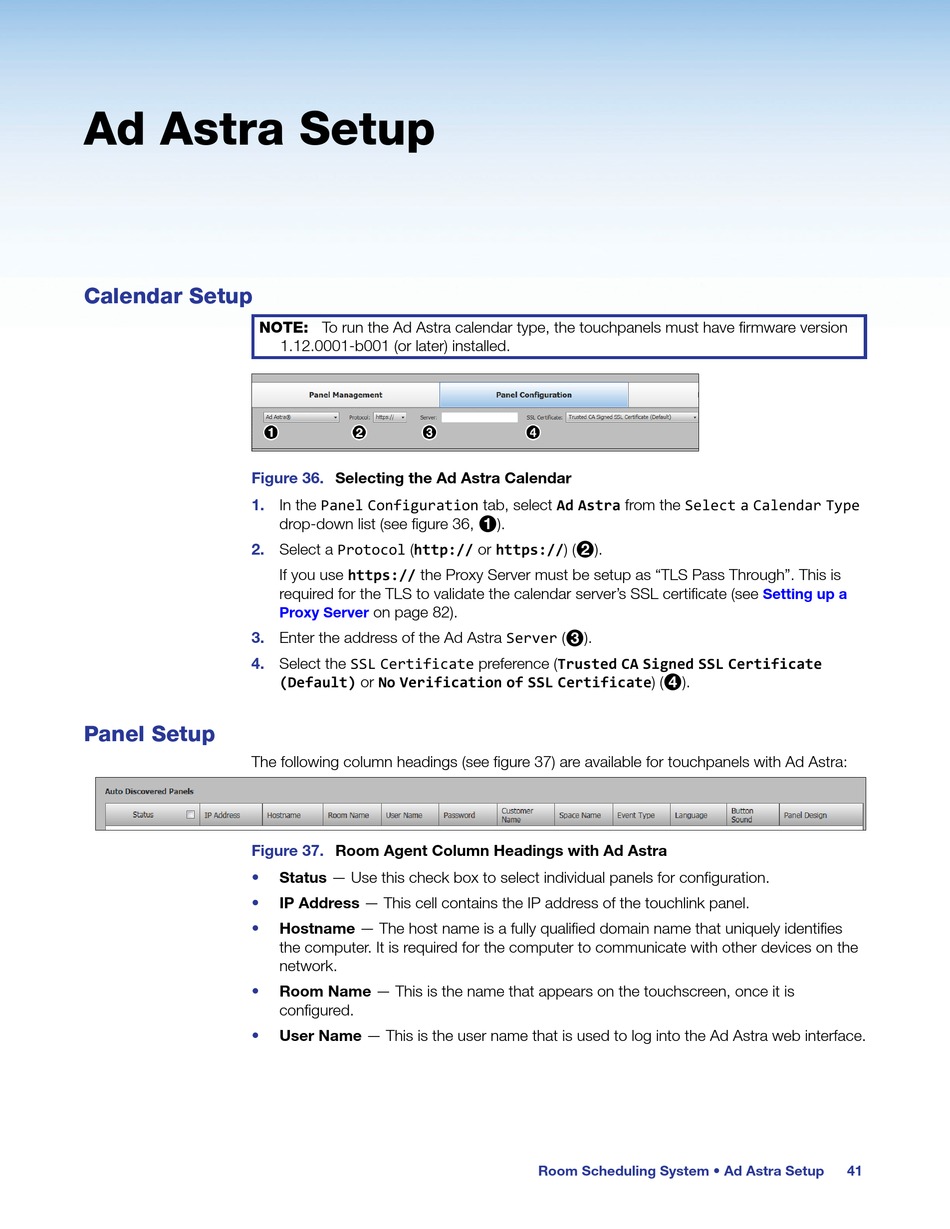

Ad Astra Setup

Calendar Setup

NOTE: To run the Ad Astra calendar type, the touchpanels must have firmware version
Figure 36.
1.
2.
3.
4.

Panel Setup

The following column headings (see figure 37) are available for touchpanels with Ad Astra:
Figure 37.
•
•
•
•
•
1.12.0001-b001 (or later) installed.
Selecting the Ad Astra Calendar
In the Panel Configuration tab, select Ad Astra from the Select a Calendar Type
drop-down list (see figure 36,
Select a Protocol (http:// or https://) (
If you use https:// the Proxy Server must be setup as "TLS Pass Through". This is
required for the TLS to validate the calendar server's SSL certificate (see
on page 82).
Proxy Server
Enter the address of the Ad Astra Server (
Select the SSL Certificate preference (Trusted CA Signed SSL Certificate
(Default) or No Verification of SSL Certificate) (
Room Agent Column Headings with Ad Astra
Status — Use this check box to select individual panels for configuration.
IP Address — This cell contains the IP address of the touchlink panel.
Hostname — The host name is a fully qualified domain name that uniquely identifies
the computer. It is required for the computer to communicate with other devices on the
network.
Room Name — This is the name that appears on the touchscreen, once it is
configured.
User Name — This is the user name that is used to log into the Ad Astra web interface.
).
1
).
2
).
3
Room Scheduling System • Ad Astra Setup
Setting up a
).
4
