Background image: (see
3
Change Image... button — Click to open a dialog box to assign a background
•
image (see figure 53 and the following procedure).
Remove button — Click to clear any assigned background image.
•
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

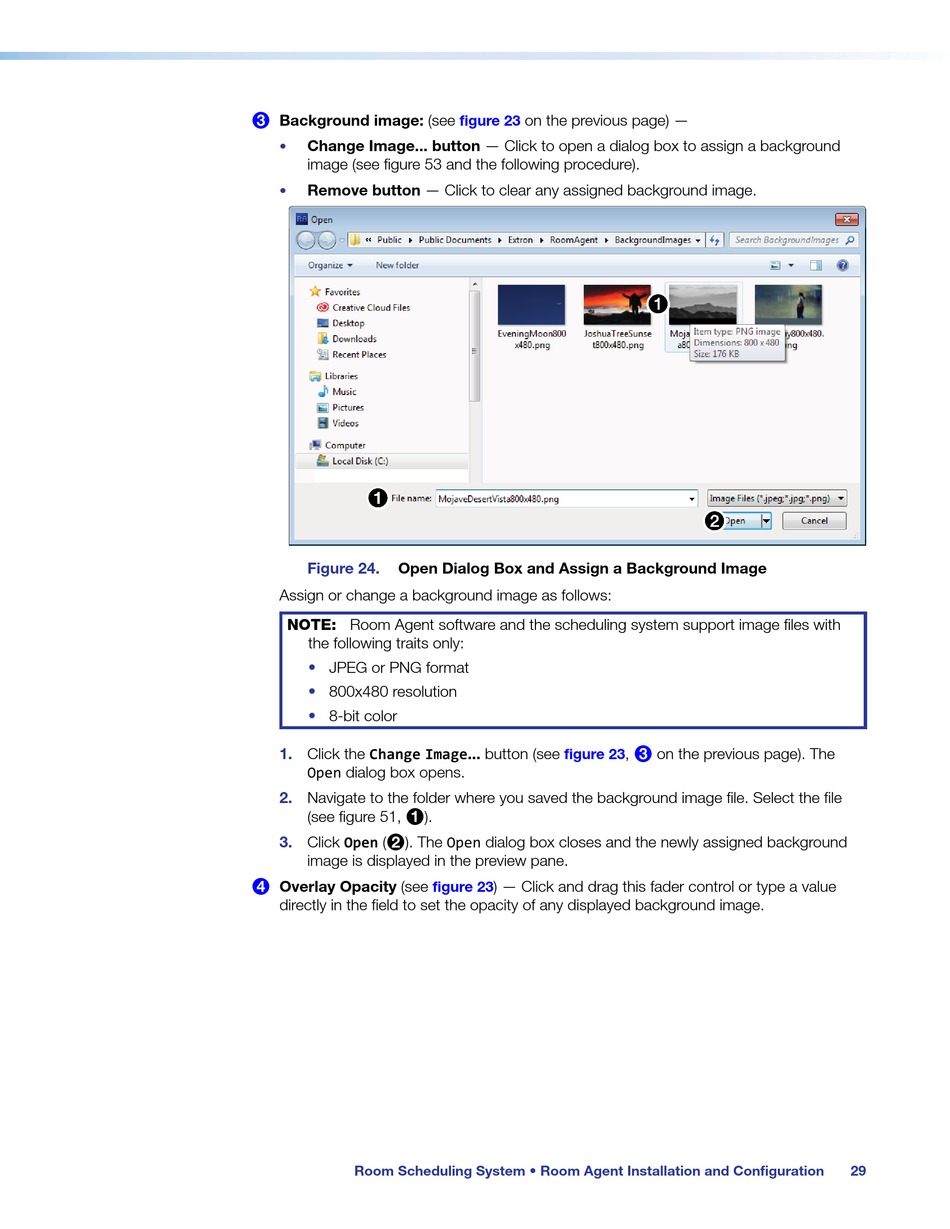

Figure 24. Open Dialog Box and Assign a Background Image
Assign or change a background image as follows:
NOTE: Room Agent software and the scheduling system support image files with
the following traits only:
• JPEG or PNG format
• 800x480 resolution
• 8-bit color
1. Click the Change Image... button (see
Open dialog box opens.
2. Navigate to the folder where you saved the background image file. Select the file
(see figure 51, ).
1
3. Click Open ( ). The Open dialog box closes and the newly assigned background
2
image is displayed in the preview pane.
Overlay Opacity (see
4
directly in the field to set the opacity of any displayed background image.
Room Scheduling System • Room Agent Installation and Configuration
on the previous page) —
figure 23
figure 23
figure 23 ) — Click and drag this fader control or type a value
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
, on the previous page). The
3
