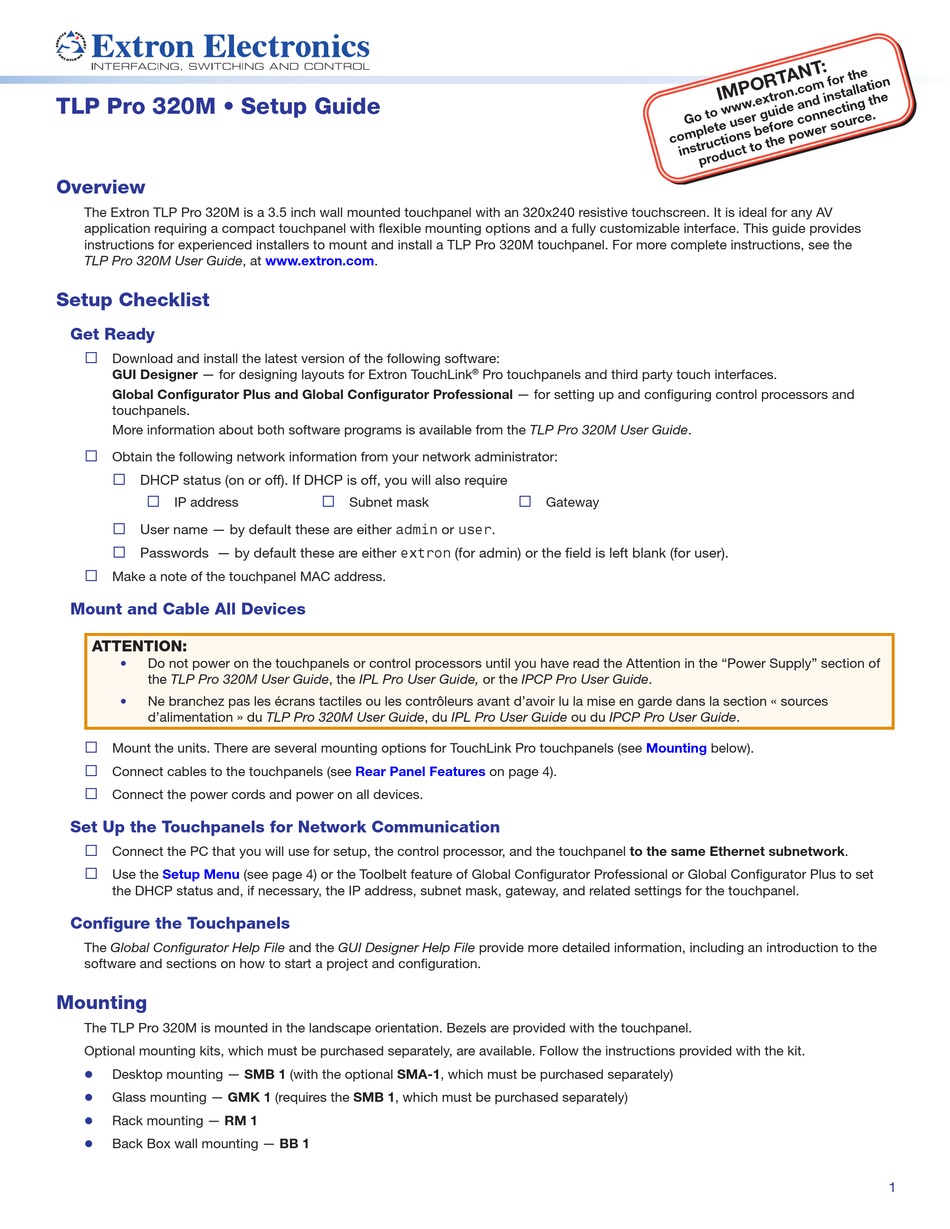

TLP Pro 320M • Setup Guide

Overview

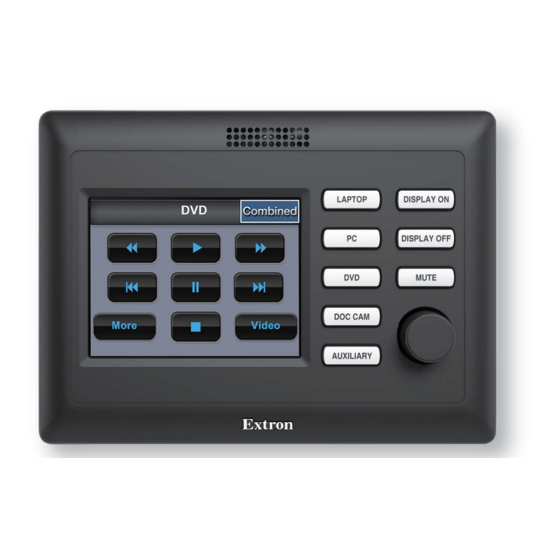

The Extron TLP Pro 320M is a 3.5 inch wall mounted touchpanel with an 320x240 resistive touchscreen. It is ideal for any AV
application requiring a compact touchpanel with flexible mounting options and a fully customizable interface. This guide provides
instructions for experienced installers to mount and install a TLP Pro 320M touchpanel. For more complete instructions, see the
TLP Pro 320M User Guide, at www.extron.com.

Setup Checklist

Get Ready
Download and install the latest version of the following software:
GUI Designer — for designing layouts for Extron TouchLink
Global Configurator Plus and Global Configurator Professional — for setting up and configuring control processors and
touchpanels.
More information about both software programs is available from the TLP Pro 320M User Guide.
Obtain the following network information from your network administrator:
DHCP status (on or off). If DHCP is off, you will also require
IP address
User name — by default these are either admin or user.
Passwords — by default these are either extron (for admin) or the field is left blank (for user).
Make a note of the touchpanel MAC address.

Mount and Cable All Devices

ATTENTION:
Do not power on the touchpanels or control processors until you have read the Attention in the "Power Supply" section of
the TLP Pro 320M User Guide, the IPL Pro User Guide, or the IPCP Pro User Guide.
Ne branchez pas les écrans tactiles ou les contrôleurs avant d'avoir lu la mise en garde dans la section « sources
d'alimentation » du TLP Pro 320M User Guide, du IPL Pro User Guide ou du IPCP Pro User Guide.
Mount the units. There are several mounting options for TouchLink Pro touchpanels (see
Connect cables to the touchpanels (see
Connect the power cords and power on all devices.

Set Up the Touchpanels for Network Communication

Connect the PC that you will use for setup, the control processor, and the touchpanel to the same Ethernet subnetwork.
Use the
Setup Menu
the DHCP status and, if necessary, the IP address, subnet mask, gateway, and related settings for the touchpanel.

Configure the Touchpanels

The Global Configurator Help File and the GUI Designer Help File provide more detailed information, including an introduction to the
software and sections on how to start a project and configuration.

Mounting

The TLP Pro 320M is mounted in the landscape orientation. Bezels are provided with the touchpanel.
Optional mounting kits, which must be purchased separately, are available. Follow the instructions provided with the kit.
Desktop mounting — SMB 1 (with the optional SMA-1, which must be purchased separately)
z
Glass mounting — GMK 1 (requires the SMB 1, which must be purchased separately)
z
Rack mounting — RM 1
z
Back Box wall mounting — BB 1
z
Subnet mask
Rear Panel Features
(see page 4) or the Toolbelt feature of Global Configurator Professional or Global Configurator Plus to set
Pro touchpanels and third party touch interfaces.
®
Gateway
Mounting
on page 4).
Product Category
below).
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TLP Pro 320M and is the answer not in the manual?

Questions and answers

Summary of Contents for Extron electronics TLP Pro 320M

  • Page 1 Overview The Extron TLP Pro 320M is a 3.5 inch wall mounted touchpanel with an 320x240 resistive touchscreen. It is ideal for any AV application requiring a compact touchpanel with flexible mounting options and a fully customizable interface. This guide provides instructions for experienced installers to mount and install a TLP Pro 320M touchpanel.
  • Page 2 Wall-Mounting or Furniture-Mounting The TLP Pro 320M can also be mounted directly to the wall or directly into furniture, such as a podium or table, without a kit. The following instructions describe how to mount directly into drywall. The procedure for furniture mounting is similar.
  • Page 3 Configurator Professional (see the Global Configurator Help File). Front Panel Features (Bezel Removed) To release the bezel from the TLP Pro 320M using the Extron removal tool: Insert the flat edge of the tool into either of the notches in the bottom surface of the bezel (see...
  • Page 4 • The TLP Pro 320M can use a 12 VDC desktop power supply and is also Power over Ethernet (PoE 802.3af, class 3) compliant. Do not connect either power supply before reading the Attention in the “Power Supply” section of the TLP Pro 320M User Guide.
