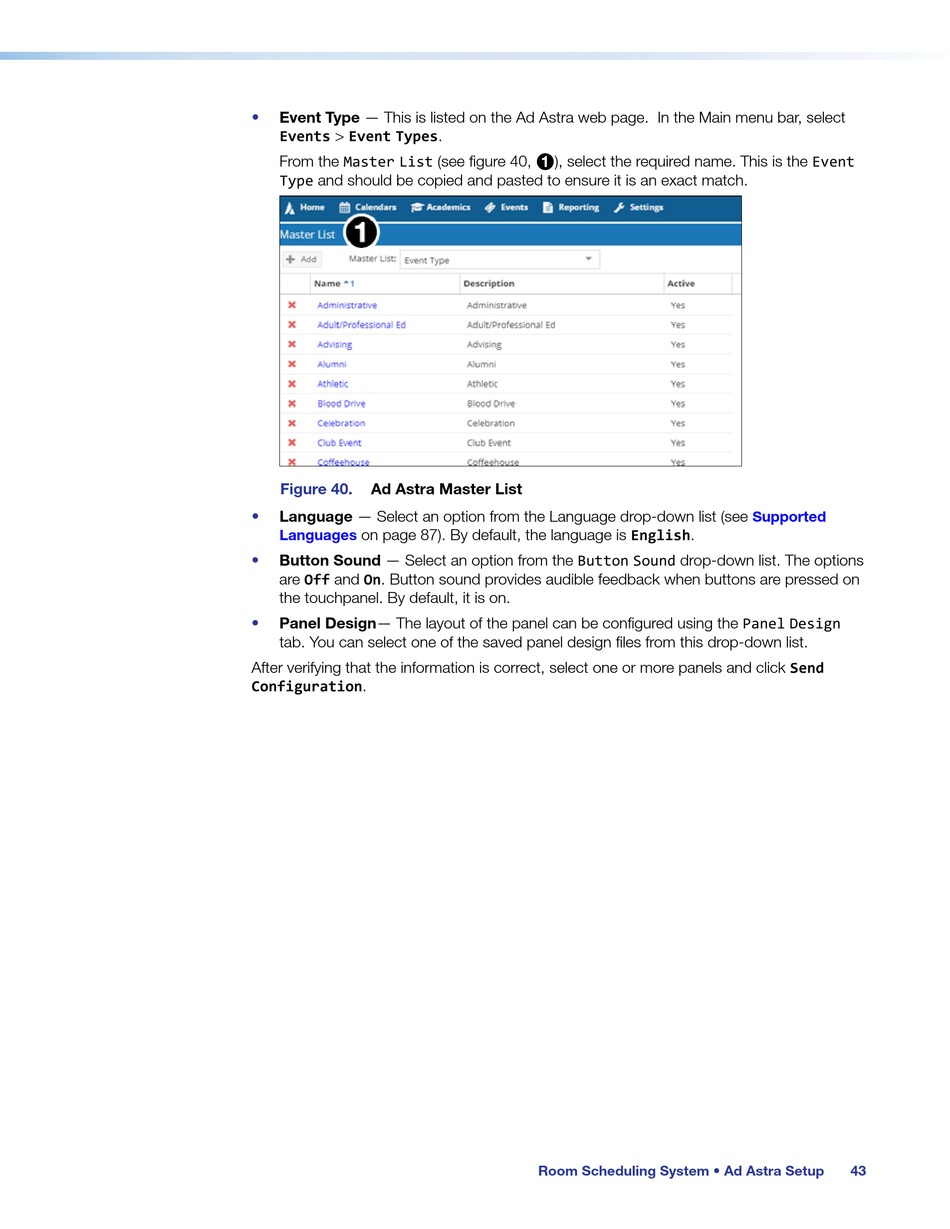

Event Type — This is listed on the Ad Astra web page. In the Main menu bar, select
•
Events > Event Types.
From the Master List (see figure 40,
Type and should be copied and pasted to ensure it is an exact match.
Figure 40. Ad Astra Master List
Language — Select an option from the Language drop-down list (see
•
on page 87). By default, the language is English.
Languages
Button Sound — Select an option from the Button Sound drop-down list. The options
•
are Off and On. Button sound provides audible feedback when buttons are pressed on
the touchpanel. By default, it is on.
Panel Design— The layout of the panel can be configured using the Panel Design
•
tab. You can select one of the saved panel design files from this drop-down list.
After verifying that the information is correct, select one or more panels and click Send
Configuration.
), select the required name. This is the Event
1
Room Scheduling System • Ad Astra Setup
