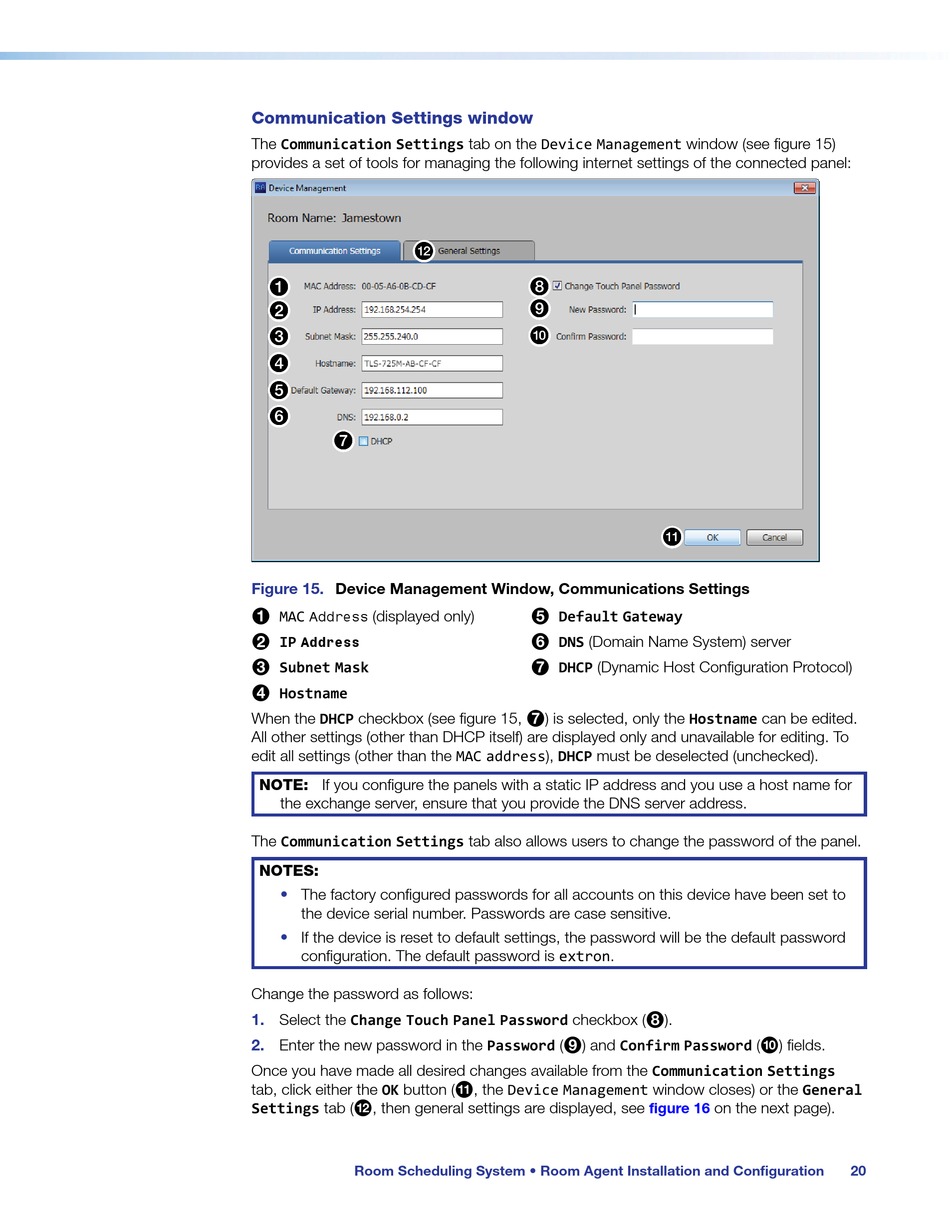

Extron electronics TouchLink User Manual page 26

Communication Settings window
The Communication Settings tab on the Device Management window (see figure 15)
provides a set of tools for managing the following internet settings of the connected panel:
¤ ¤ ¤ ¤ ¤ ¤ ¤ ¤ ¤ ¤ ¤ ¤ ¤ ¤ ¤ ¤ ¤ ¤
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3
4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4
5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5
6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6
7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7
Figure 15. Device Management Window, Communications Settings
MAC (displayed only)
1
Address
IP
2 Address
Subnet Mask
3
Hostname
4
When the DHCP checkbox (see figure 15,
All other settings (other than DHCP itself) are displayed only and unavailable for editing. To
edit all settings (other than the MAC address), DHCP must be deselected (unchecked).
NOTE: If you configure the panels with a static IP address and you use a host name for
the exchange server, ensure that you provide the DNS server address.
The Communication Settings tab also allows users to change the password of the panel.
NOTES:
• The factory configured passwords for all accounts on this device have been set to
the device serial number. Passwords are case sensitive.
• If the device is reset to default settings, the password will be the default password
configuration. The default password is extron.
Change the password as follows:
1. Select the Change Touch Panel Password checkbox (
2. Enter the new password in the Password (
Once you have made all desired changes available from the Communication Settings
tab, click either the OK button (
Settings tab ( , then general settings are displayed, see
¤
