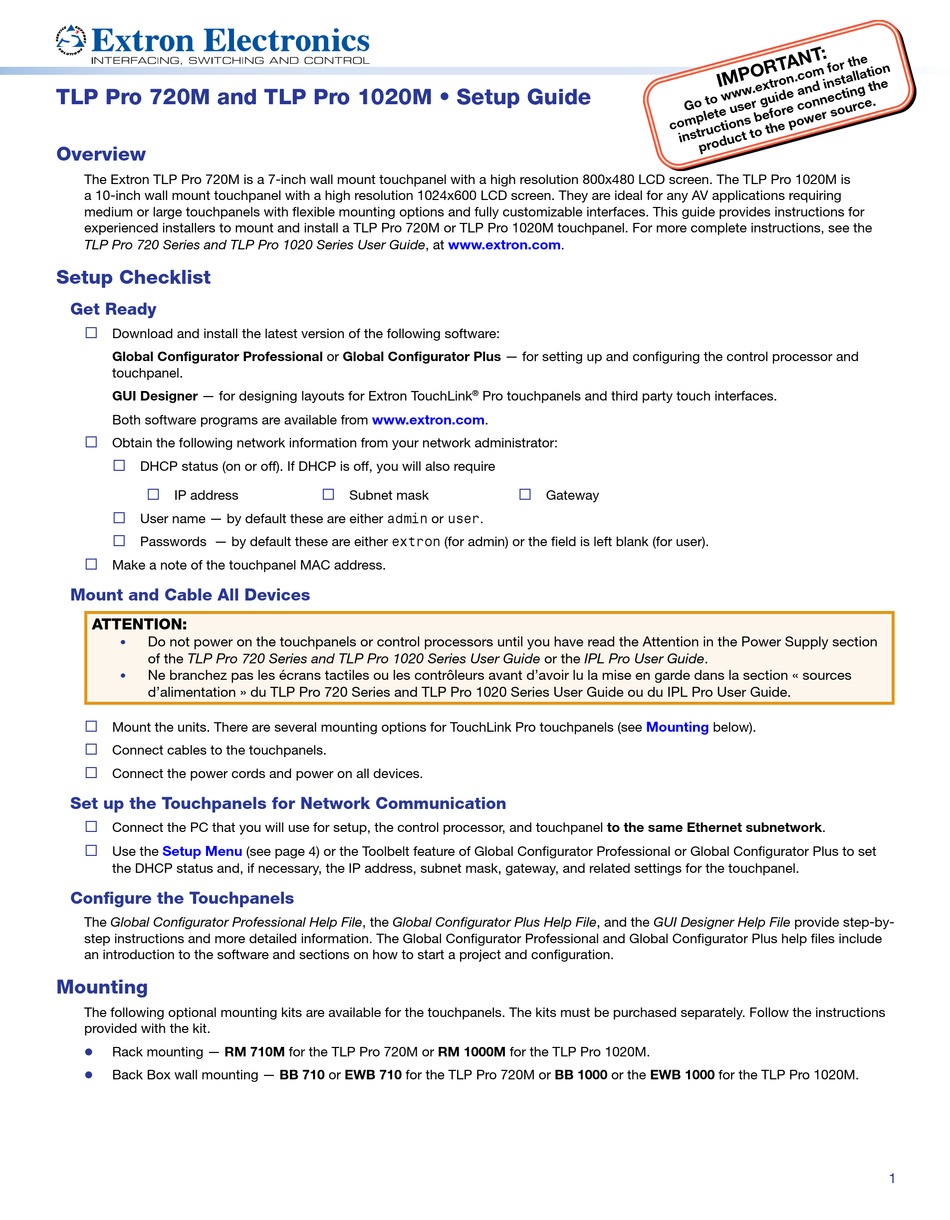

TLP Pro 720M and TLP Pro 1020M • Setup Guide

Overview

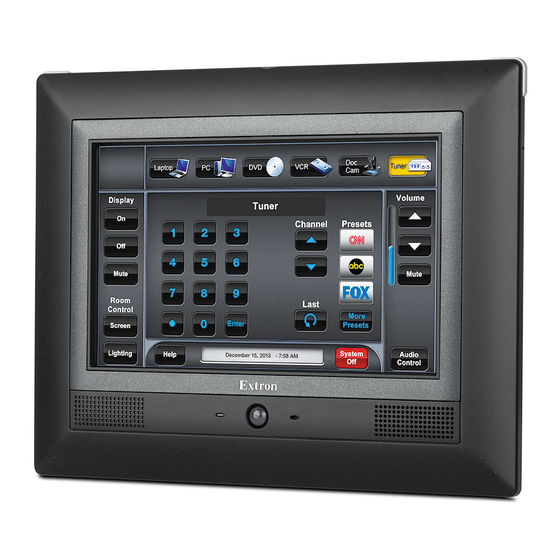

The Extron TLP Pro 720M is a 7-inch wall mount touchpanel with a high resolution 800x480 LCD screen. The TLP Pro 1020M is
a 10-inch wall mount touchpanel with a high resolution 1024x600 LCD screen. They are ideal for any AV applications requiring
medium or large touchpanels with flexible mounting options and fully customizable interfaces. This guide provides instructions for
experienced installers to mount and install a TLP Pro 720M or TLP Pro 1020M touchpanel. For more complete instructions, see the
TLP Pro 720 Series and TLP Pro 1020 Series User Guide, at

Setup Checklist

Get Ready
… Download and install the latest version of the following software:
Global Configurator Professional or Global Configurator Plus — for setting up and configuring the control processor and
touchpanel.
GUI Designer — for designing layouts for Extron TouchLink
Both software programs are available from
…
Obtain the following network information from your network administrator:
… DHCP status (on or off). If DHCP is off, you will also require
… IP address
… User name — by default these are either admin or user.
… Passwords — by default these are either extron (for admin) or the field is left blank (for user).
… Make a note of the touchpanel MAC address.

Mount and Cable All Devices

ATTENTION:
Do not power on the touchpanels or control processors until you have read the Attention in the Power Supply section
•
of the TLP Pro 720 Series and TLP Pro 1020 Series User Guide or the IPL Pro User Guide.
Ne branchez pas les écrans tactiles ou les contrôleurs avant d'avoir lu la mise en garde dans la section « sources
•
d'alimentation » du TLP Pro 720 Series and TLP Pro 1020 Series User Guide ou du IPL Pro User Guide.
…
Mount the units. There are several mounting options for TouchLink Pro touchpanels (see
… Connect cables to the touchpanels.
… Connect the power cords and power on all devices.

Set up the Touchpanels for Network Communication

… Connect the PC that you will use for setup, the control processor, and touchpanel to the same Ethernet subnetwork.
Setup Menu
… Use the
the DHCP status and, if necessary, the IP address, subnet mask, gateway, and related settings for the touchpanel.

Configure the Touchpanels

The Global Configurator Professional Help File, the Global Configurator Plus Help File, and the GUI Designer Help File provide step-by-
step instructions and more detailed information. The Global Configurator Professional and Global Configurator Plus help files include
an introduction to the software and sections on how to start a project and configuration.

Mounting

The following optional mounting kits are available for the touchpanels. The kits must be purchased separately. Follow the instructions
provided with the kit.
Rack mounting — RM 710M for the TLP Pro 720M or RM 1000M for the TLP Pro 1020M.
z
Back Box wall mounting — BB 710 or EWB 710 for the TLP Pro 720M or BB 1000 or the EWB 1000 for the TLP Pro 1020M.
z
www.extron.com
… Subnet mask
(see page 4) or the Toolbelt feature of Global Configurator Professional or Global Configurator Plus to set
www.extron.com .
Pro touchpanels and third party touch interfaces.
®
.
… Gateway
Product Category
Mounting
below).
