TLP Pro 725M • Setup Guide

Overview

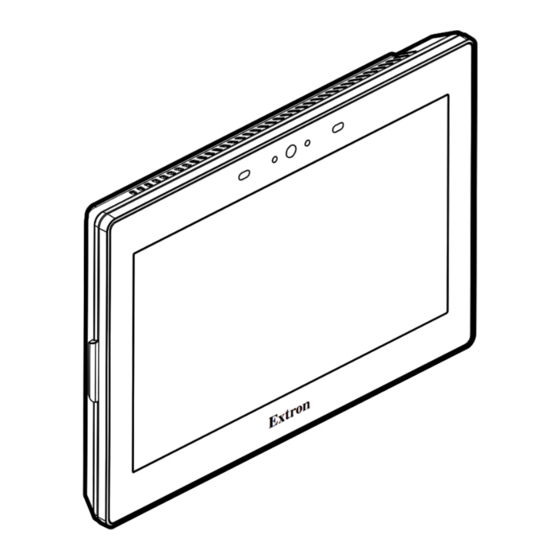

The Extron TLP Pro 725M is a 7-inch wall mounted capacitive touchscreen touchpanel with a TFT active matrix color LCD screen. The
screen has 1024x600 resolution and 24-bit color depth. It is ideal for any AV application requiring compact touchpanels with flexible
Mounting options and a fully customizable interface. This guide provides instructions for experienced installers to mount and install
these touchpanels.

Setup Checklist

Get Ready
… Download and install the latest version of the following software:
… GUI Designer — For designing layouts for Extron TouchLink
… Global Configurator
and touchpanel.
… Toolbelt — Provides device discovery, device information, firmware updates, and configuration of network settings, system
utilities, and user management for TouchLink Pro devices.
… Global Scripter
NOTE: All four software programs are available from
… Obtain the following network information from your network administrator:
… DHCP status — (on or off). If DHCP is off, you must also obtain:
… IP address
User name — This can be either
…
… Password — By default, this is
… Make a note of the touchpanel MAC address.

Mount and Cable All Devices

ATTENTION:
• Do not power on the touchpanels or control processors until you have read the Attention in the "Rear Panel Features"
section of the TLP Pro 725 Series User Guide or the IPCP Pro User Guide or IPL Pro User Guide.
• Ne branchez pas les écrans tactiles ou les contrôleurs avant d'avoir lu la mise en garde dans la section « Rear Panel
Features » du TLP Pro 725 Series User Guide ou du IPCP Pro User Guide or IPL Pro User Guide.
…
Mount the units. There are several mounting options for TouchLink Pro touchpanels (see
… Connect the touchpanel to a Power over Ethernet injector (see
… Connect the power injector to the LAN and power it on (see

Set up the Touchpanels for Network Communication

… Connect the PC that you are using for setup, the control processor, and the touchpanel to the same Ethernet subnetwork.
… Use the Setup Menu
and related settings for the touchpanel.

Configure the Touchpanels

The GUI Designer Help File, the Global Configurator Help File, and the Toolbelt Help File provide step-by-step instructions and
detailed information. The Global Configurator Help File includes an introduction to the software and sections on how to start a project
and configuration.
Global Scripter provides an Extron-exclusive Python library (ControlScript
Professional or Global Configurator Plus — For setting up and configuring the control processor
®
— Provides an integrated development environment for Extron control systems programming.
®
… Subnet mask
or
admin user
(for either admin or user).
extron
(see page 4) or Toolbelt to set the DHCP status and, if necessary, the IP address, subnet mask, gateway,
Pro touchpanels and third party touch interfaces.
®
www.extron.com
.
… Gateway
.
figure 5 on page 4).
figure 5).
) and Global Scripter modules to get you started.
®
Mounting
on the next page).
