TLP Pro 520M and TLC Pro 521M • Setup Guide

Overview

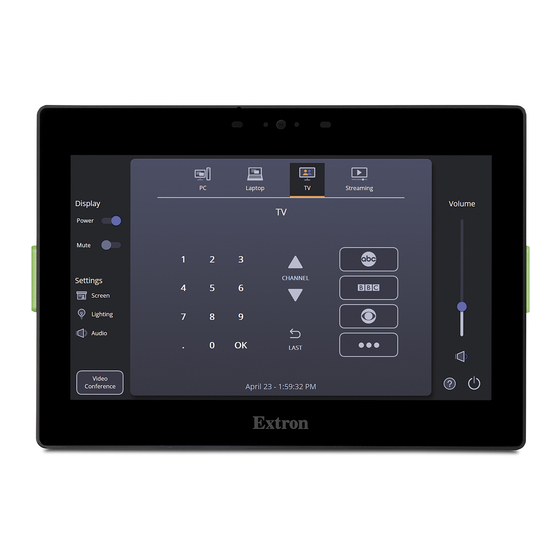

The Extron TLP Pro 520M and TLC Pro 521M are 5 inch wall mounted touchpanels with 800x480 capacitive glass touchscreen.
The Extron TLC Pro 521M also features a built-in controller in a compact form factor. They are ideal for any AV application requiring
compact touchpanels with flexible mounting options and a fully customizable interface. This guide provides instructions for
experienced installers to mount and install these touchpanels. For complete instructions, see the TLP Pro 520M and TLC Pro 521M
User Guide, at www.extron.com.

Setup Checklist

Get Ready
Download and install the latest version of the following software:
…
GUI Designer — for designing layouts for Extron TouchLink
…
Global Configurator
…
Toolbelt — provides device discovery, device information, firmware updates, and configuration of network settings,
…
system utilities, and user management for TouchLink Pro devices.
All three software programs are available from
… Obtain the following network information from your network administrator:
… DHCP status (on or off). If DHCP is off, you will also require
… IP address
… User name — this can be either admin or user.
Password — by default this is extron (for either admin or user).
…
Make a note of the touchpanel MAC address (see the rear panel label).
…
Mount and Cable All Devices
ATTENTION:
• Do not power on the touchpanels or control processors until you have read the Attention in the Power Supply section
of the TLP Pro 520M and TLC Pro 521M User Guide or the IPL Pro User Guide.
• Ne branchez pas les écrans tactiles ou les contrôleurs avant d'avoir lu la mise en garde dans la section « sources
d'alimentation » du TLP Pro 520M and TLC Pro 521M User Guide ou du IPL Pro User Guide.
Mount the units. There are several mounting options for TouchLink Pro touchpanels (see
…
Connect cables to the touchpanel.
…
… Connect the power cords and power on all devices.
Set Up the Touchpanels for Network Communication
… Connect the PC that you will use for setup, the control processor (for the TLP Pro 520M), and the touchpanel to the same
Ethernet subnetwork.
… Use the Setup Menu
gateway, and related settings for the touchpanel.
Configure the Touchpanels
The GUI Designer Help File, Global Configurator Help File, and the Toolbelt Help File provide step-by-step instructions and more
detailed information. The Global Configurator Help File includes an introduction to the software and sections on how to start a project
and configuration.
Plus and Professional — for setting up and configuring the control processor and touchpanel.
®
… Subnet mask
(see page 6) or Toolbelt to set the DHCP status and, if necessary, the IP address, subnet mask,
Pro touchpanels and third party touch interfaces.
®
www.extron.com .
… Gateway
Product Category
Mounting on the following page).
