Room Occupancy tab
NOTES:
• This screen is always selectable and behaves as described, but only TLS 520M,
TLS 725M, and TLS 1025M scheduling panels, and TLP Pro 520M touchpanels
have the digital I/O connectors necessary to connect the OCS 100 Occupancy
Sensors.
• See Occupancy Sensor Configuration
the occupancy sensors to compatible panels.
If necessary, click the Room Occupancy tab (see figure 59,
rooms equipped with occupancy sensors.
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
Õ Õ Õ Õ Õ Õ Õ Õ Õ Õ Õ Õ Õ Õ Õ Õ Õ Õ
Ö Ö Ö Ö Ö Ö Ö Ö Ö Ö Ö Ö Ö Ö Ö Ö Ö Ö
× × × × × × × × × × × × × × × × × ×
3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3

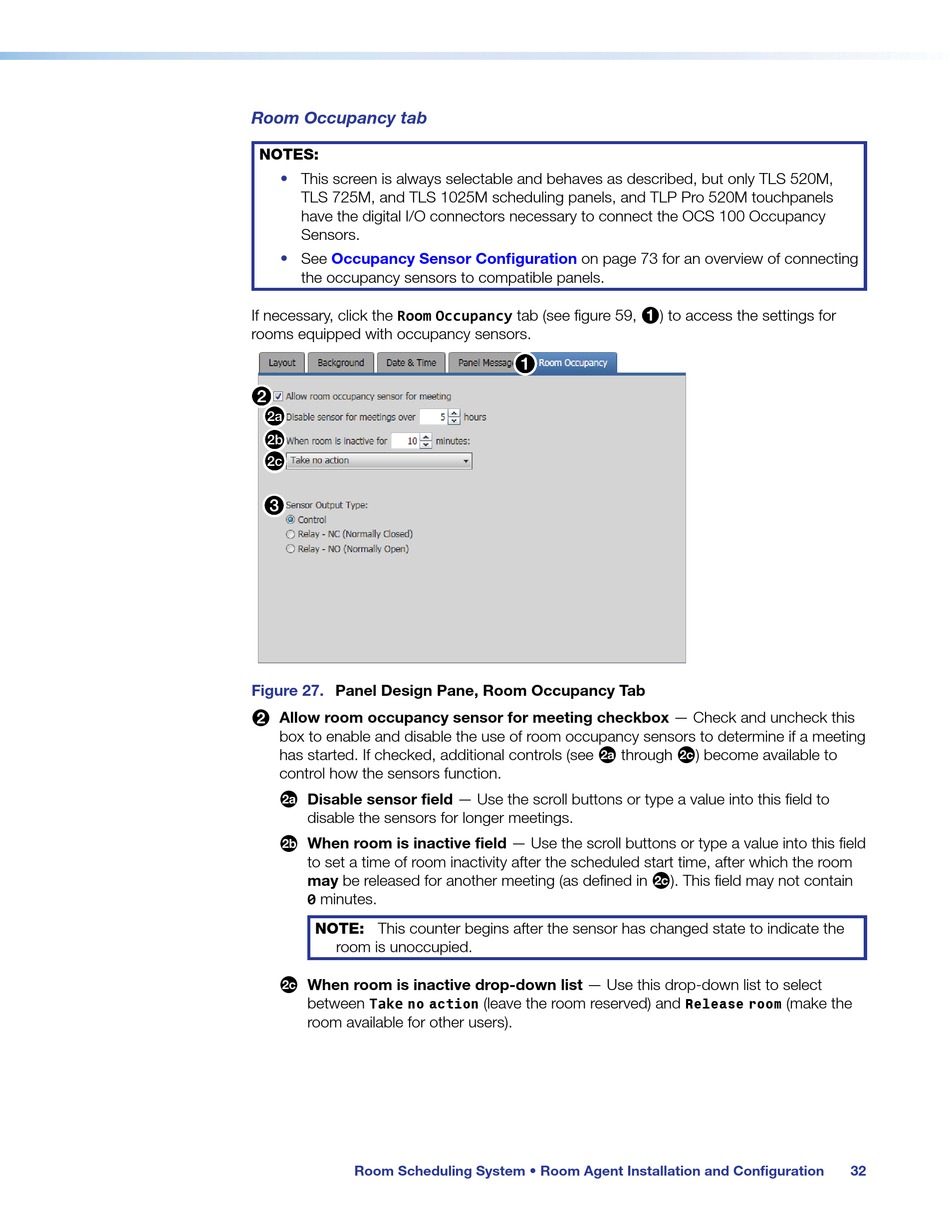

Figure 27. Panel Design Pane, Room Occupancy Tab
Allow room occupancy sensor for meeting checkbox — Check and uncheck this
2
box to enable and disable the use of room occupancy sensors to determine if a meeting
has started. If checked, additional controls (see
control how the sensors function.
Disable sensor field — Use the scroll buttons or type a value into this field to
Õ
disable the sensors for longer meetings.
When room is inactive field — Use the scroll buttons or type a value into this field
Ö
to set a time of room inactivity after the scheduled start time, after which the room
may be released for another meeting (as defined in
0 minutes.
NOTE: This counter begins after the sensor has changed state to indicate the
room is unoccupied.
When room is inactive drop-down list — Use this drop-down list to select
×
between Take
no action
room available for other users).
