Chapter 3: System Setup

Installing a Storage M.2 Card (B Key 2242)

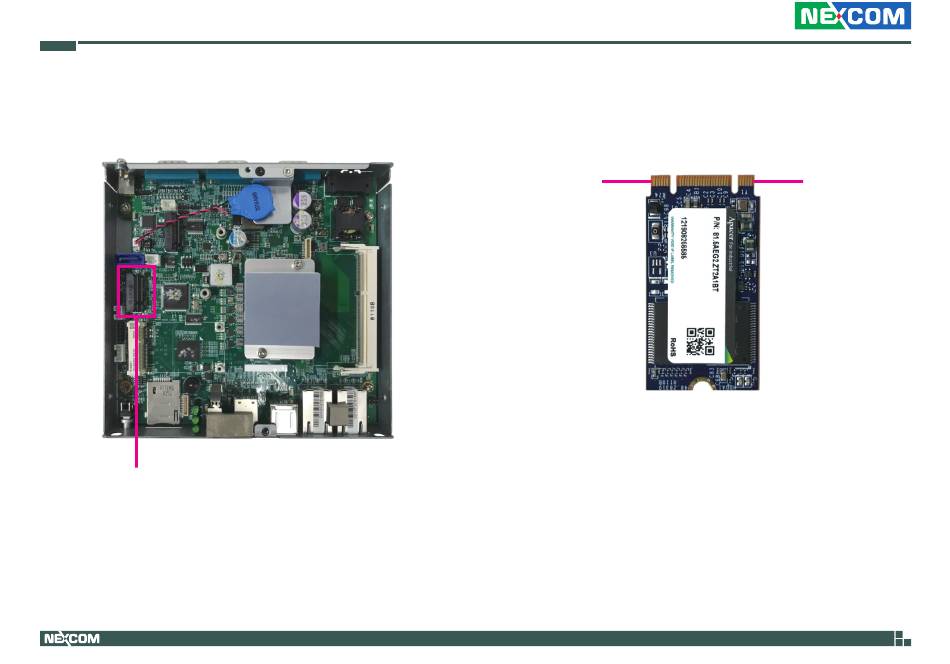

1. Locate the M.2 B key slot on the board. 2. Make sure the gold-plated six-pin connector on the edge of the module
is on the left, while the five-pin connector is on the right.
Six-Pin Five-Pin
M.2 B Key Slot
