Chapter 2: Jumpers and Connectors

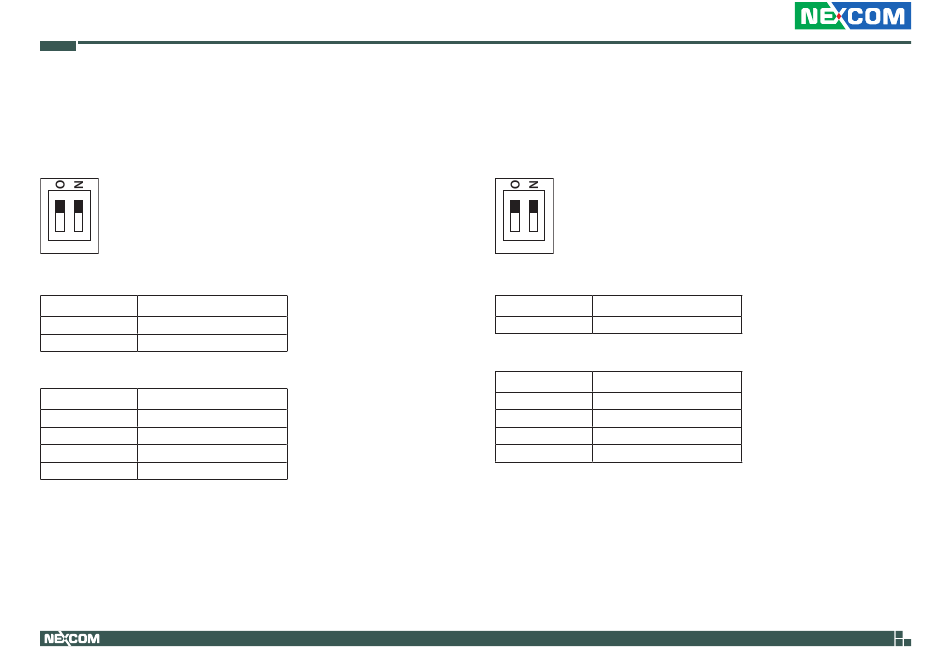

AT/ATX Type Select

Connector type: 2-pin DIP switch
Connector location: SW1
1 2
Pin Settings
1 On, 2 Off AT
1 Off, 2 On ATX
1 Off, 2 On: default
Pin Definition
1 AT_PWRBT#
2 PBT_TR
3 PWRBTN#
4 PWRBTN#
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.

RTC Reset Connector

Connector type: 2-pin DIP switch
Connector location: SW3
1 2
Pin Settings
1 Off, 2 Off
1 Off, 2 Off: default
Pin Definition
1 RTEST#
2 SRTCRST#
3
4
11
Off
GND
GND
NISE 51 User Manual
