Chapter 2: Jumpers and Connectors

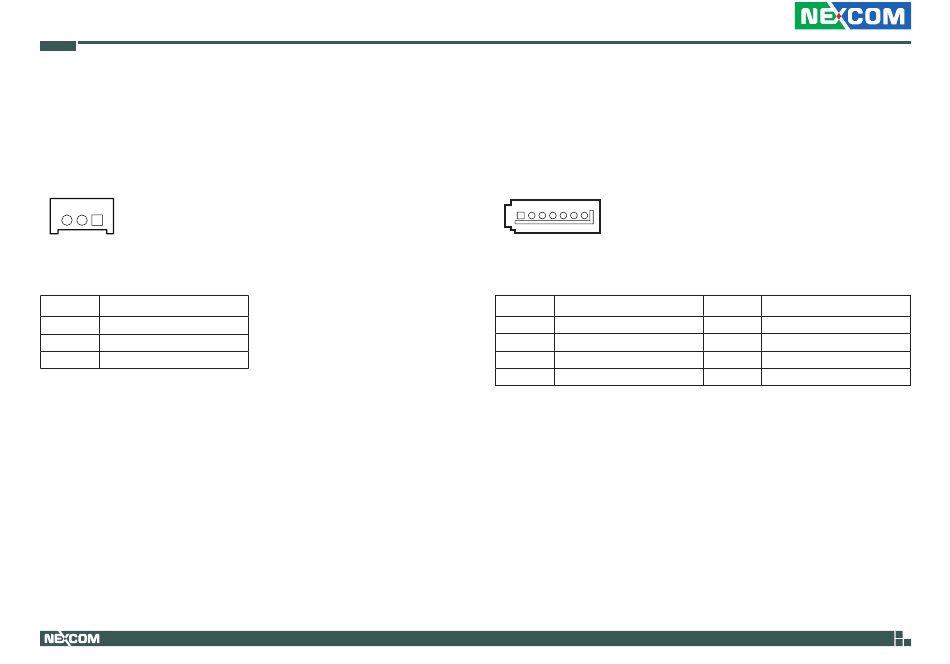

COM4 Pin Header (TX/RX Only)
Connector type: 1x3 3-pin header, 2.0mm pitch
Connector location: COM4
3
1
Pin
Definition
1
GND
2
SP4_RXD_R
3
SP4_TXD_R
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
SATA Connector
Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180)
Connector location: SATA1
1
7
Pin
Definition
1
GND
3
SATA_TXN0_C
5
SATA_RXN0_C
7
GND
20
Pin
Definition
2
SATA_TXP0_C
4
GND
6
SATA_RXP0_C
NISE 51 User Manual
