Chapter 2: Jumpers and Connectors

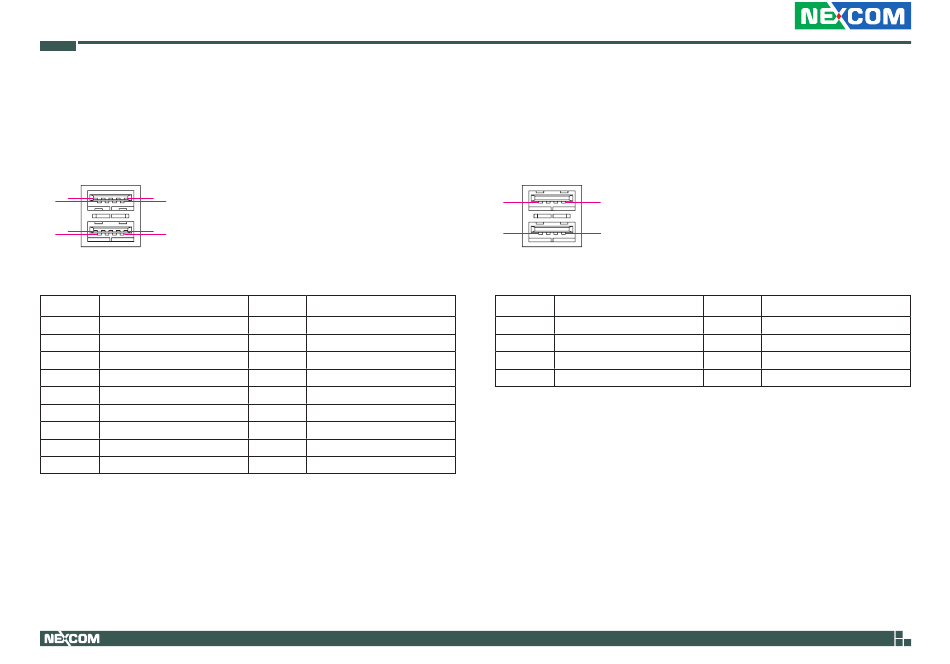

USB 3.0 Ports

Connector type: Dual USB 3.0 ports
Connector location: USB01_1
9 5
1 4
18 14
10 13
Pin Definition
1 P5V_USB01
3 USB2_P3_C
5 USB3_RX0N_C
7 GND
9 USB3_TX0P_C
11 USB2_N1_C
13 GND
15 USB3_RX1P_C
17 USB3_TX1N_C
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 USB2_N3_C
4 GND
6 USB3_RX0P_C
8 USB3_TX0N_C
10 P5V_USB01
12 USB2_P1_C
14 USB3_RX1N_C
16 GND
18 USB3_TX1P_C

USB 2.0 Ports

Connector type: Dual USB 2.0 ports
Connector location: USB23_1
1 4
5 8
Pin Definition
1 P5V_USB23
3 USB2_P2_C
5 P5V_USB23
7 USB2_P0_C
14
Pin Definition
2 USB2_N2_C
4 GND
6 USB2_N0_C
8 GND
