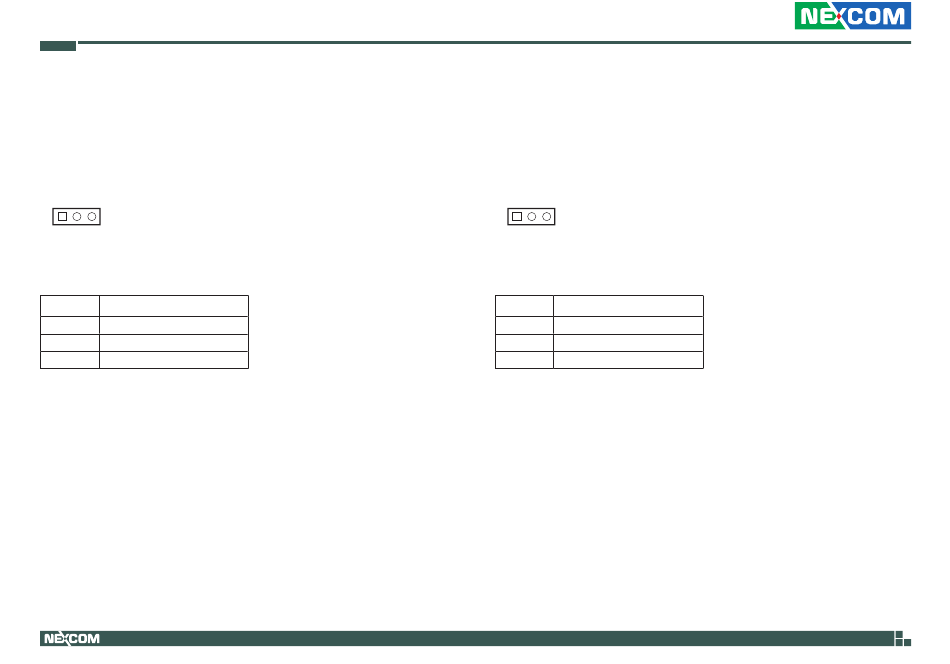

Chapter 2: Jumpers and Connectors
COM3 TX Terminal Pin Header
Connector type: 1x3 3-pin header, 2.0mm pitch
Connector location: JP5
1
3
Pin
Definition
1
TX+_DATA+
2
TX-_DATA-
3
NC
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
COM3 RX Terminal Pin Header
Connector type: 1x3 3-pin header, 2.0mm pitch
Connector location: JP4
1
3
Pin
Definition
1
RX+
2
RX-
3
NC
10
NISE 51 User Manual
