Chapter 2: Jumpers and Connectors

Connector Pin Definitions

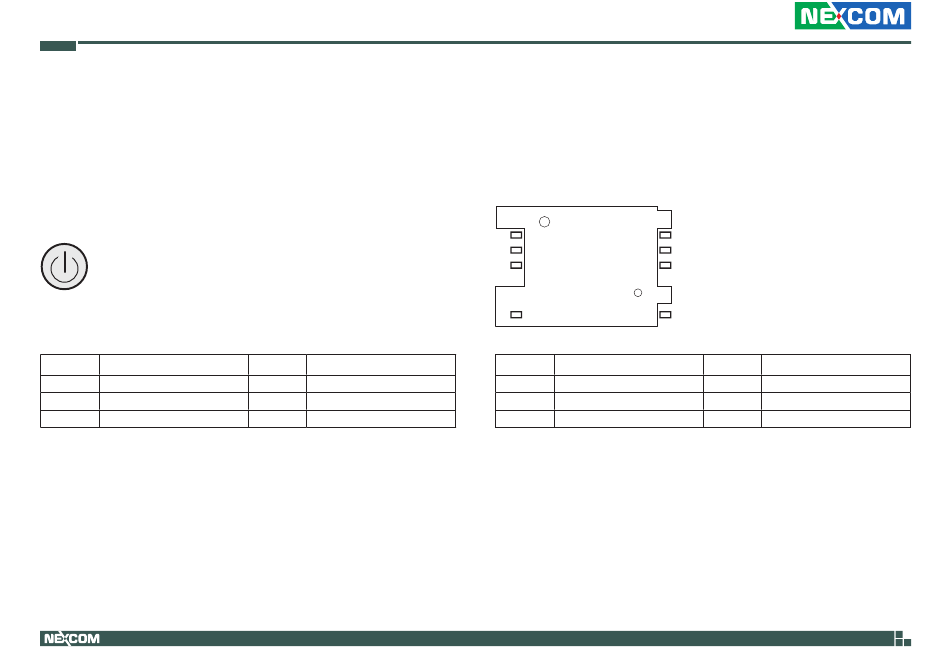

External I/O Interfaces - Front Panel

Power Button

Connector location: SW2
Pin Definition
1 GND
3 PBT_TR
A1 PWRLED_N
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 PBT_TR
4 GND
C1 PWRLED_P

SIM Card Slot

Connector location: SIM1
C5
C6
C7
SW2 SW1
Pin Definition
C1 UIM_PWR
C3 UIM_CLK
C6 UIM_VPP
12
C1
C2
C3
Pin Definition
C2 UIM_RESET
C5 GND
C7 UIM_DATA
