Chapter 2: Jumpers and Connectors

External I/O Interfaces - Rear Panel

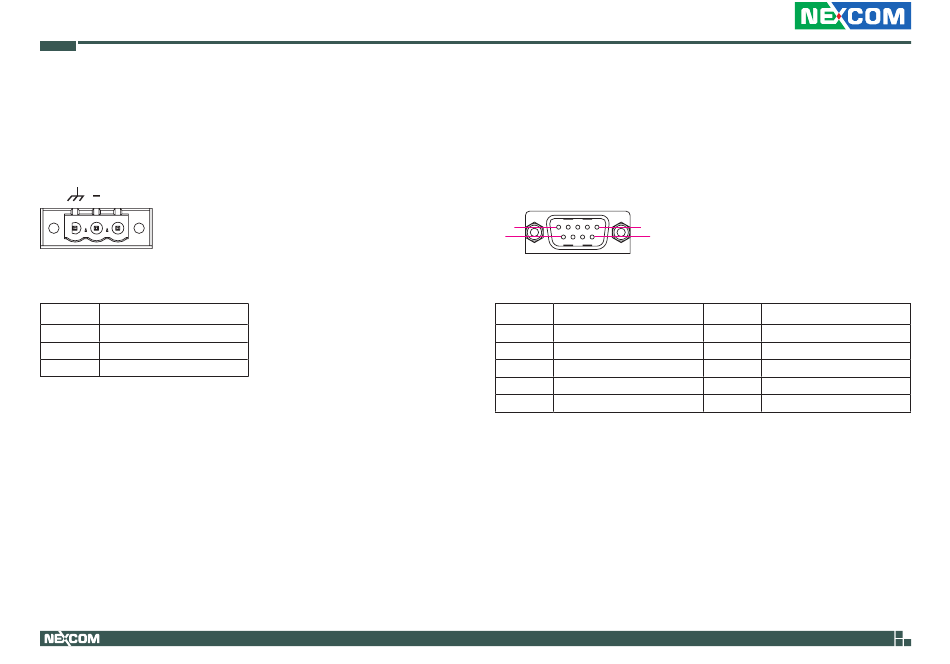

DC Power Input

Connector location: PW1
+
3 1
Pin Definition
1 VIN
2 VSS
3 Earth GND
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.

COM 1 Port (RS232)

Connector type: DB-9 port, 9-pin D-Sub
Connector location: COM1
1 5
6
Pin Definition
1 SP1_DCD#
3 SP1_TXD
5 GND
7 SP1_RTS#
9 SP1_RI#
16
9
Pin Definition
2 SP1_RXD
4 SP1_DTR#
6 SP1_DSR#
8 SP1_CTS#
