5.4.

Integrated power supply, power supply cable

DLT-V72 is equipped with a galvanically separated, integrated DC power supply unit.
Power is connected to the back of the unit using a Phoenix Contact plug. There is no
power switch.
Power supply
DC power pack
12/24/48 VDC
(wide-range power supply
unit)
60 W / 80 W internal
Type DC-16
Voltage range
Bridged power failures
Maximum output power
Nominal current
Connection to SELV circuit only. The SELV circuit is a secondary circuit that is designed
and protected so that its voltages will not exceed a safe value both when operating correctly
or if a single error occurs.
DLT-V72 Series User Manual V2.70

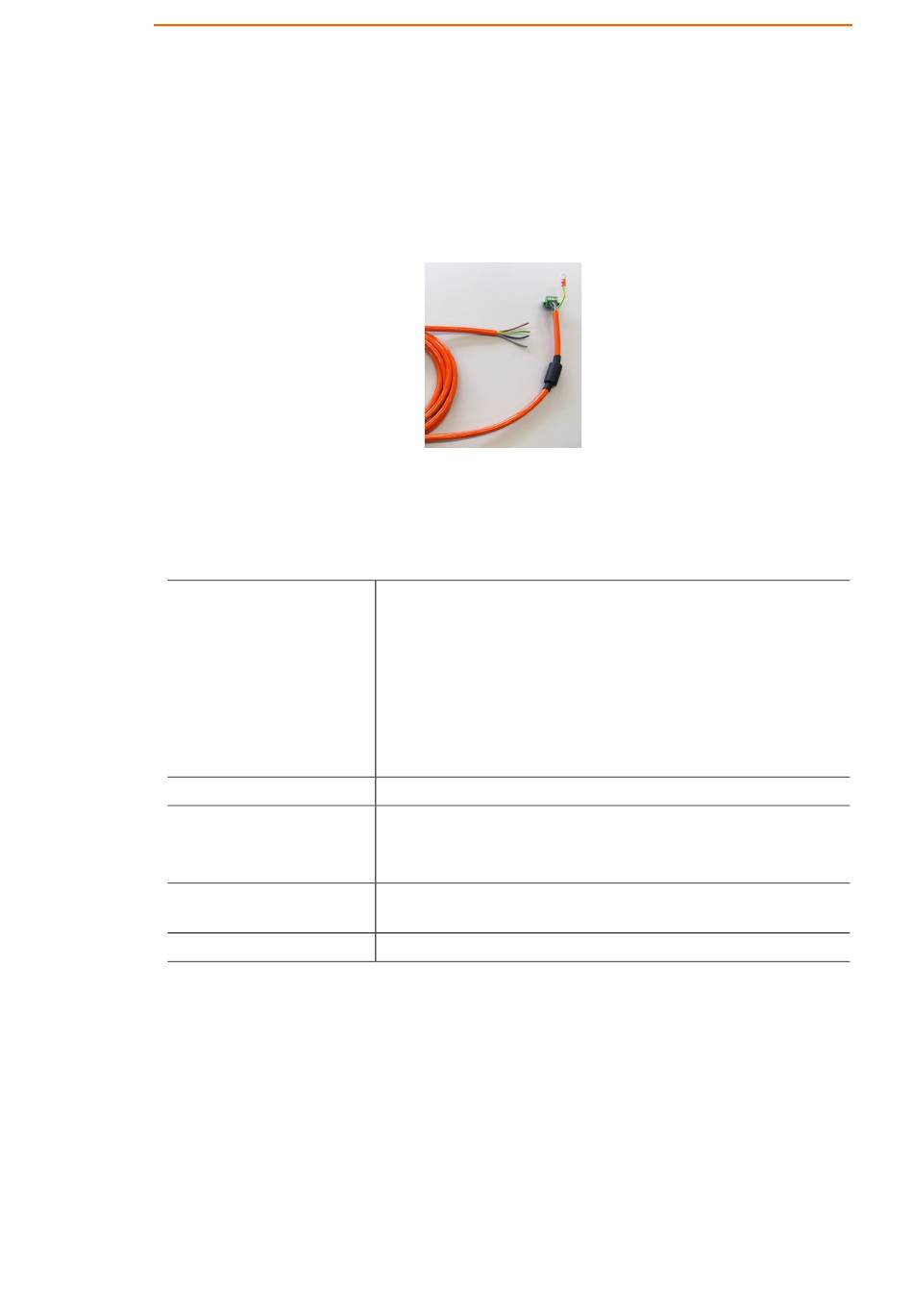

Fig. 5.5: DC Power supply cable with Phoenix Combicon, 3-pin

12/24/48 VDC nominal
Galvanically isolated
Withstands bursts up to 2 kV
Full output power of the 12/24/48 VDC power supply unit for 20
seconds each:
For 6 V: 40 W
For 9 V: 60 W
Rising in linear fashion between the above
9 to 60 VDC
Typically 2 ms at 12 V
Typically 10 ms at 24 V
Typically 40 ms at 48 V
60 W (+10 to +70 °C internal device temperature);
or 80 W (-30 to +10 °C internal device temperature)
8.4 A
38 / 173
Technical Data – Device
