Antennas (Optional); Wlan Antenna Ieee 802.11 A/B/G/N/Ac; Fig. 6.1: Wlan Antenna Ieee 802.11 A/B/G/N/Ac - Advantech DLoG DLT-V72 Series User Manual

6.3.

Antennas (optional)

6.3.1.

WLAN antenna IEEE 802.11 a/b/g/n/ac

Technical data
Application
WLAN frequency range
Bluetooth features
Number of antennas
Available color
Type
Antenna gain
Impedance
Polarization
Maximum transmitting power
Compatible Radio card:
DLT-V72 Series User Manual V2.70

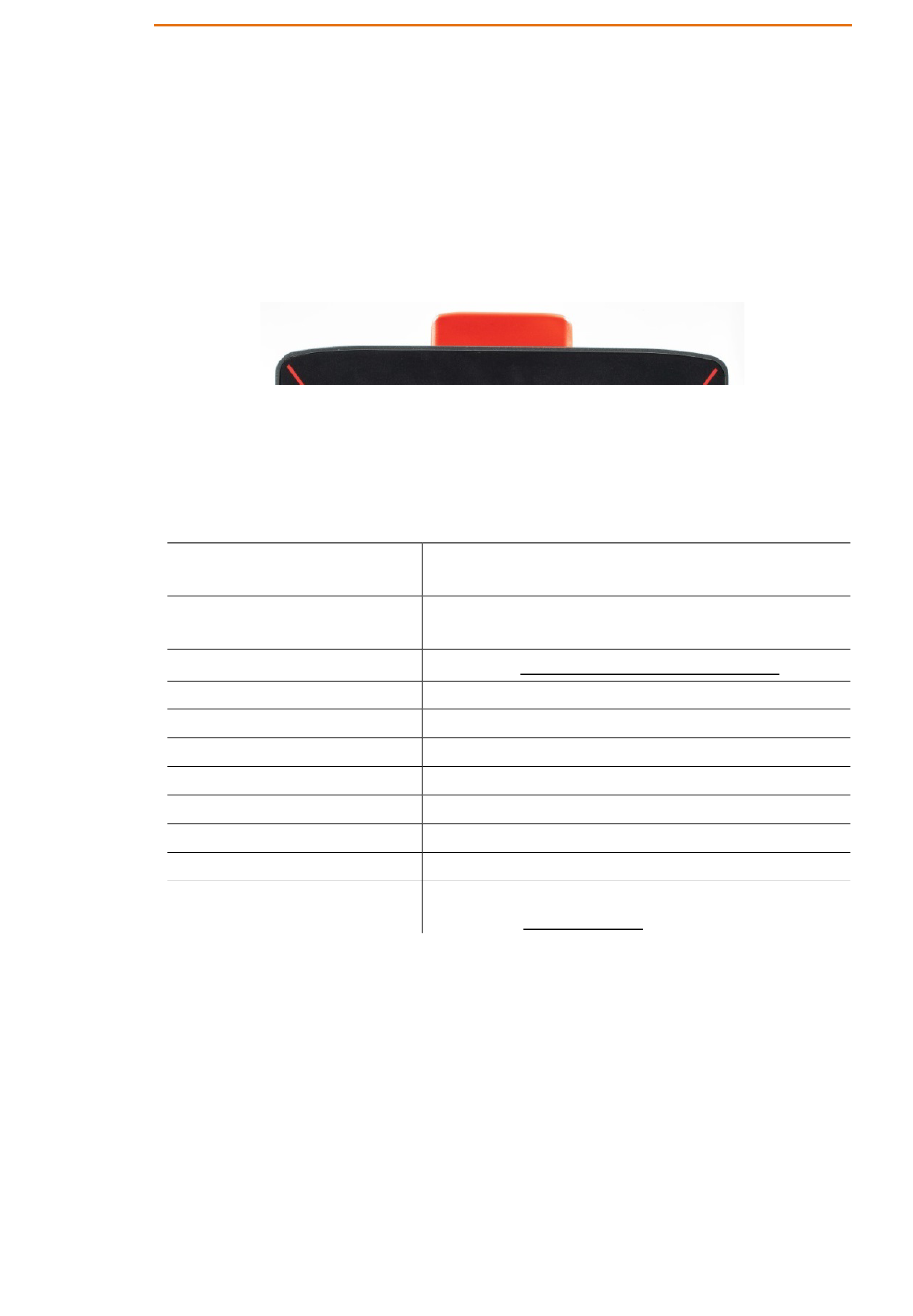

Fig. 6.1: WLAN antenna IEEE 802.11 a/b/g/n/ac

WLAN a/b/g/n/ac Dual Band with MRC
Bluetooth (integrated via Radio card)
Band 1: 2400 to 2485 MHz
Band 2: 5150 to 5850 MHz
See section 6.3.5 Bluetooth integrated (optional)
2
Red
Omnidirectional antenna
Max. 4.44 dBi (without loss through the cable)
50 Ω
Vertical/horizontal
100 mW / 20 dBm
SPARKLAN WPEQ-261ACN(BT)
(see section 6.2.1 Radio card)
45 / 173
Technical Data – Radio
