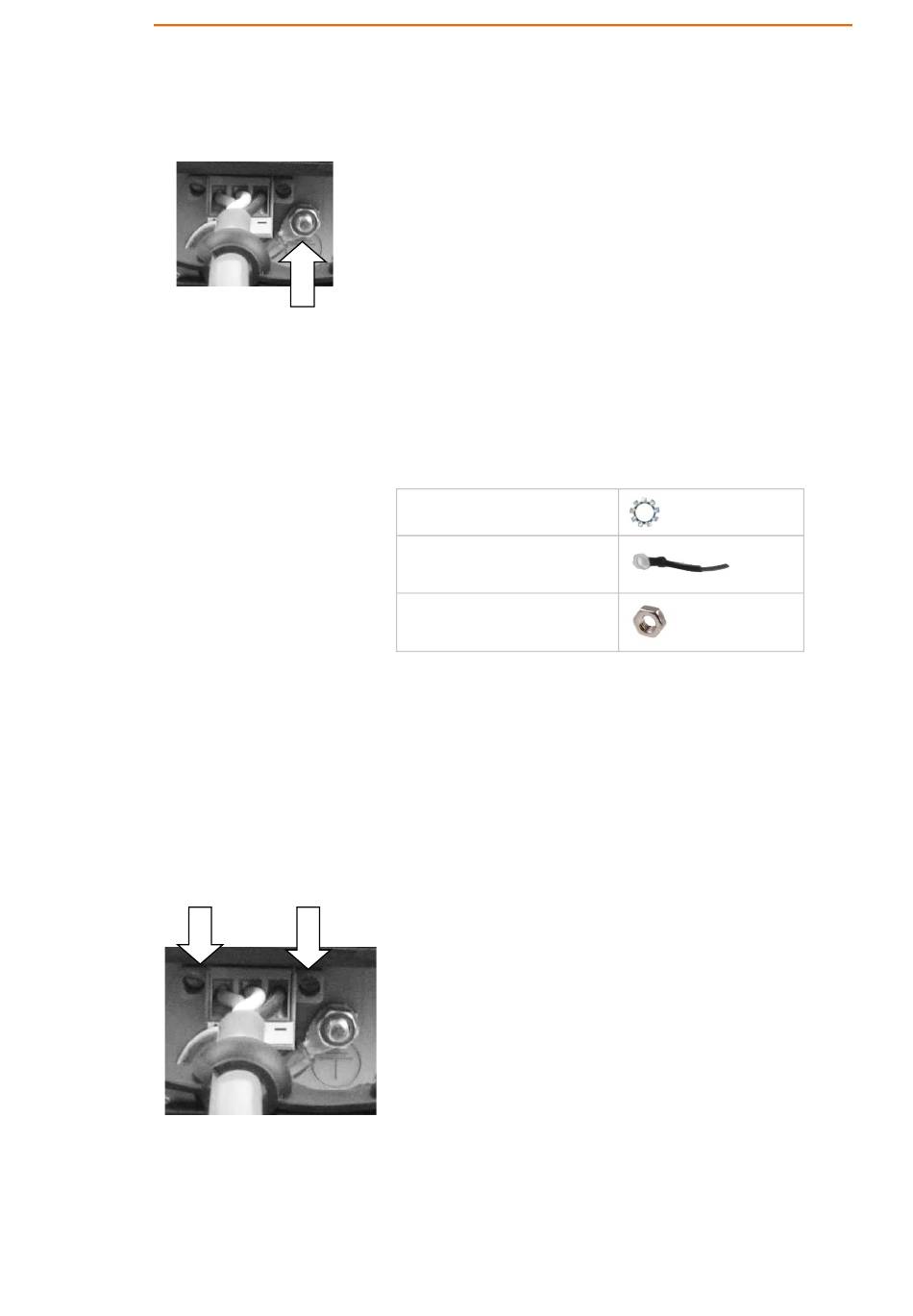

13.3.2. Ensure a proper electrical connection

Ground bolt, with the
following components
factory-fitted:
1 x toothed washer
D=8.5 d=4.2 t=0.5 ST Ni
1 x nut (W)
W=6 M4*0.7 H=2.5 ST
Zn

13.3.3. Plugging in and screwing on the power supply cable

Mounting screws
DLT-V72 Series User Manual V2.70
1. Remove the nut from the ground bolt.
2. The toothed washer remains on the ground
bolt.
3. Plug the ring tongue on the power supply
cable onto the ground bolt; the flat side of
the ring tongue points towards the DLT-V72
connector panel.
4. Lastly, fit the nut and fasten it.
NOTICE: For a proper electrical connection, it is
important to have the correct order of the components
on the ground bolt (from inside to outside):
Toothed washer (internal)
Ring tongue on the power
supply cable (center)
Nut (external)
1. Plug the DC power supply cable into
the DC slot.
2. Tighten the mounting screws hand-
tight.
