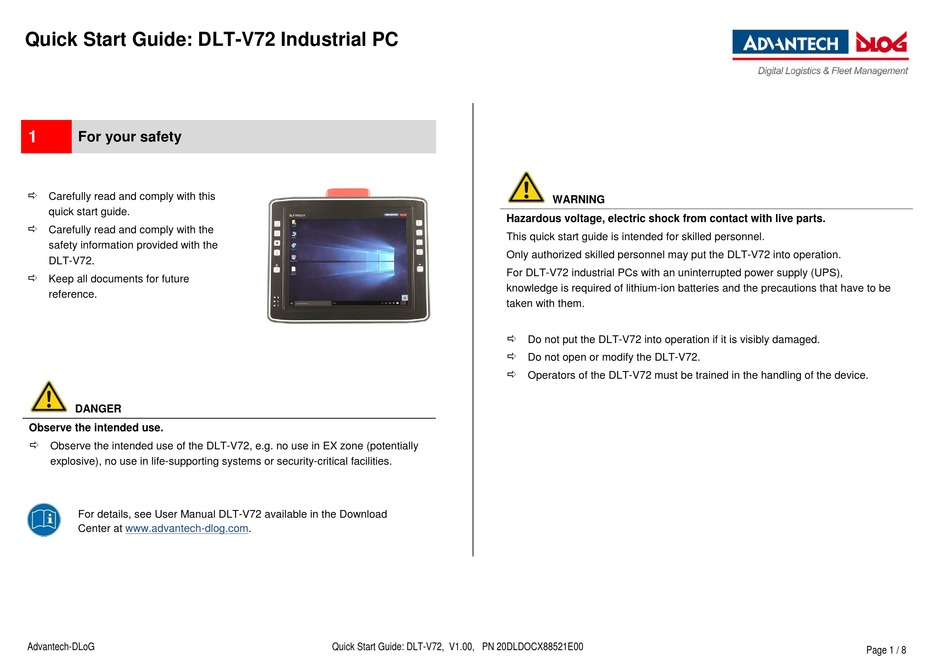

Quick Start Guide: DLT-V72 Industrial PC
1

For your safety

Carefully read and comply with this
quick start guide.
Carefully read and comply with the
safety information provided with the
DLT-V72.
Keep all documents for future
reference.
DANGER
Observe the intended use.
Observe the intended use of the DLT-V72, e.g. no use in EX zone (potentially
explosive), no use in life-supporting systems or security-critical facilities.
For details, see User Manual DLT-V72 available in the Download
Center at www.advantech-dlog.com.
Advantech-DLoG
Hazardous voltage, electric shock from contact with live parts.
This quick start guide is intended for skilled personnel.
Only authorized skilled personnel may put the DLT-V72 into operation.
For DLT-V72 industrial PCs with an uninterrupted power supply (UPS),
knowledge is required of lithium-ion batteries and the precautions that have to be
taken with them.
Quick Start Guide: DLT-V72, V1.00, PN 20DLDOCX88521E00
WARNING
Do not put the DLT-V72 into operation if it is visibly damaged.
Do not open or modify the DLT-V72.
Operators of the DLT-V72 must be trained in the handling of the device.
Page 1 / 8
