13.2. Preparations

1. Lay out ready all cables that are to be connected to the DLT-V72.
2. Select the appropriate slots on the connector panel of the DLT-V72.
3. Test in which order the cables best fit in the cable compartment.
Overview of connectors located on the connector panel under the cable cover:

13.2.1. Material required

Cable sealing set: Screws and rubber seal
Note: Some parts in the scope of delivery are replacement parts.
Rubber seal:
DLT-V72 Series User Manual V2.70

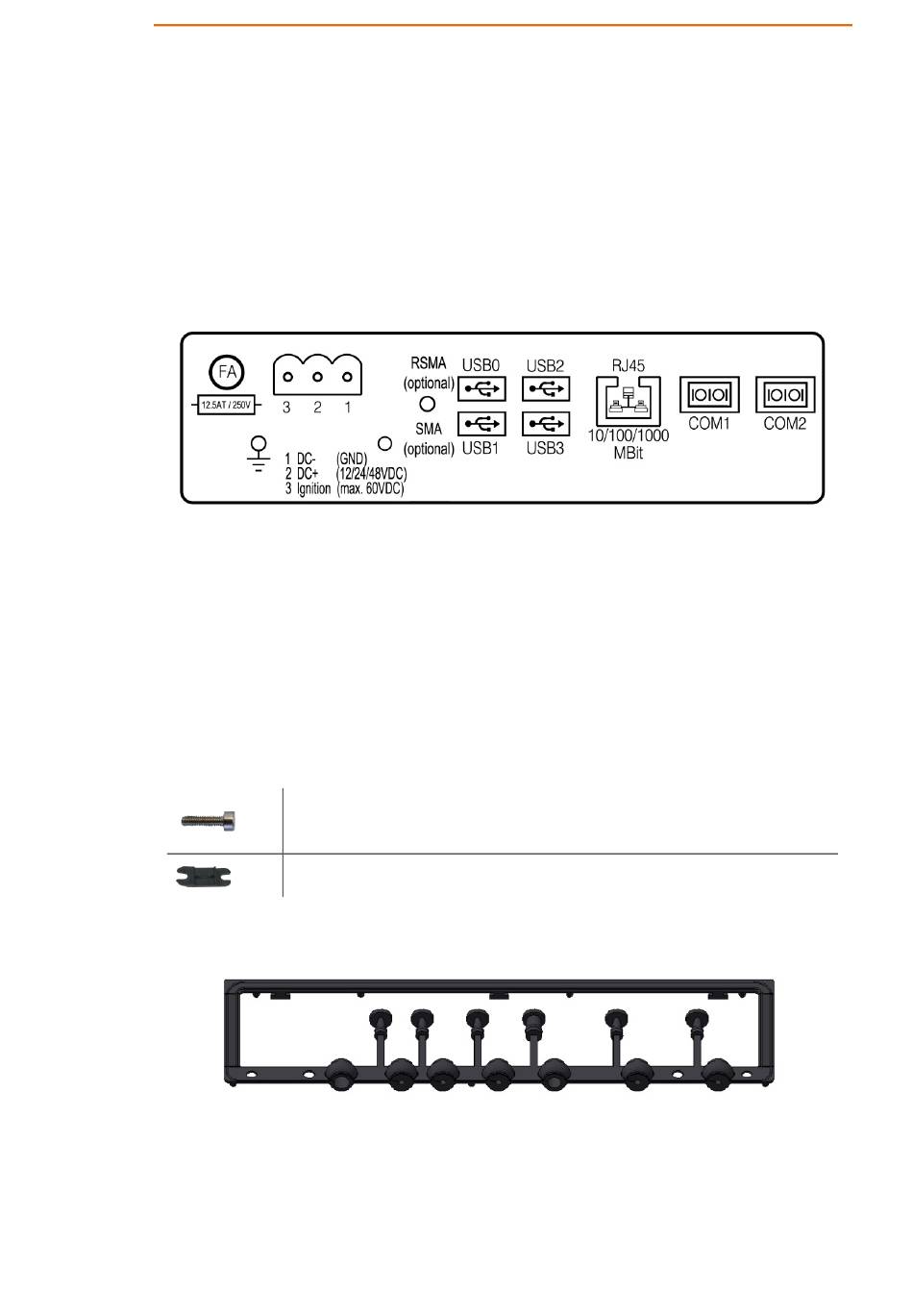

Fig. 13.1: Connectors on the connector panel under the cable cover

10 x cylinder head screws DIN 912 M3x12 for fastening the cables
to the strain relief rail
7 x cable clips for fastening the cables to the strain relief rail

Fig. 13.2: DLT-V72 cable sealing set
