10.6.11. Roam Management

General tab
After clicking the General dialog, the following information is displayed on the screen:
Info section
Info
Client Status
Network Name SSID
Network Type
AP BSSID
Channel
Mode
Signal Strength (dBm)
SNR
Radio Power on Time
(sec)
Country Code
IP Address
CCX AP Name
DLT-V72 Series User Manual V2.70

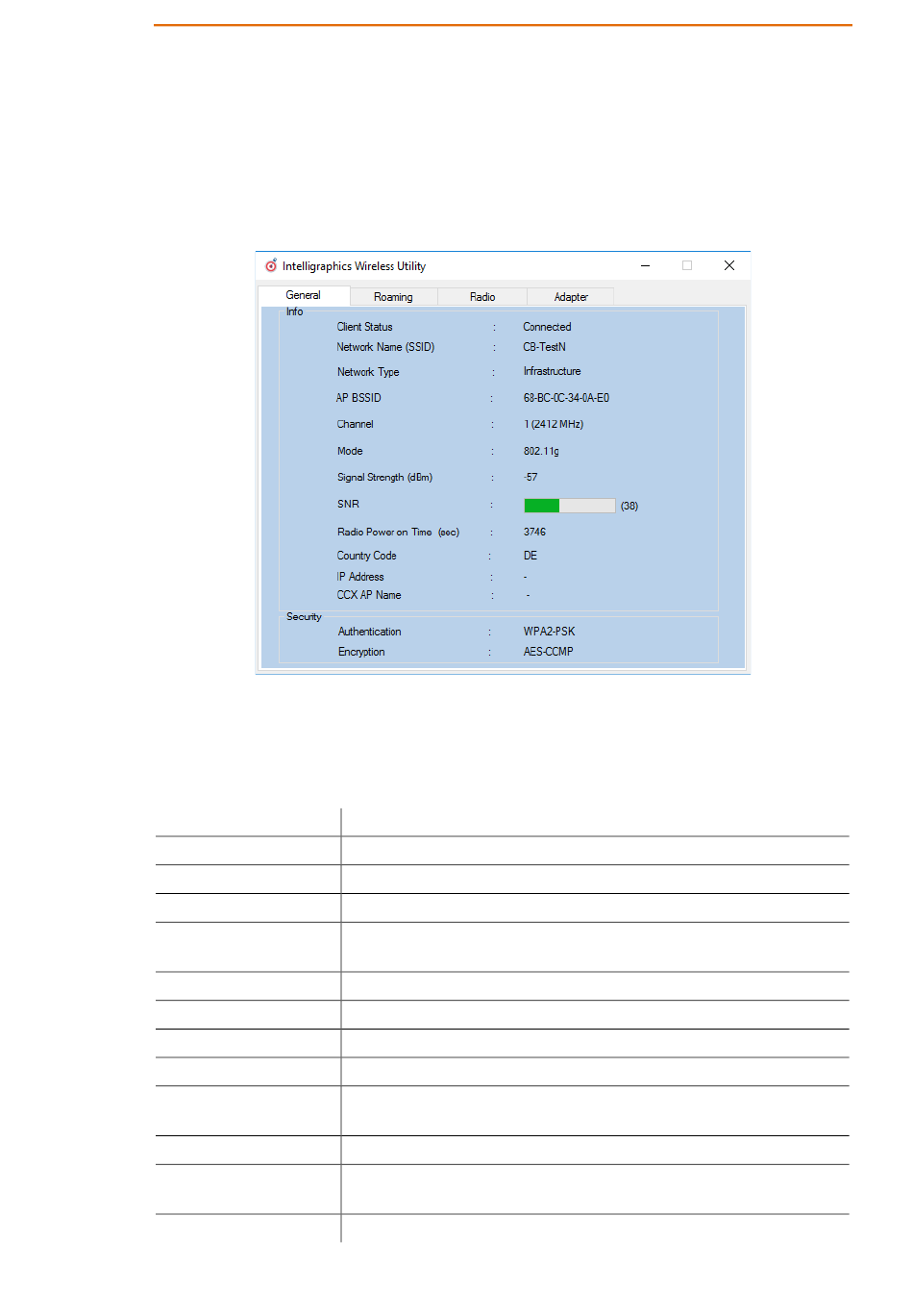

Fig.10.24: General dialog in the Roam Management menu

Meaning of the display
Current connection status: Connected / Disconnected
SSID of the currently connected access points
Network type Ad-hoc or Infrastructure
Corresponding MAC address of the currently connected access
points
Displays the configured channel used in the access point
Frequency band used, e.g. "802.11g"
Current signal strength of the connected access points in (dBm)
Relative signal strength (SNR) as bar chart
Display of the current elapsed operating time of the Radio card
The country code supplied by the access point such as US, DE, JP
The Client IP address configured by the access point (DHCP) or
manually (static) assigned
SSID of the Cisco CCX Access Points (if present)
