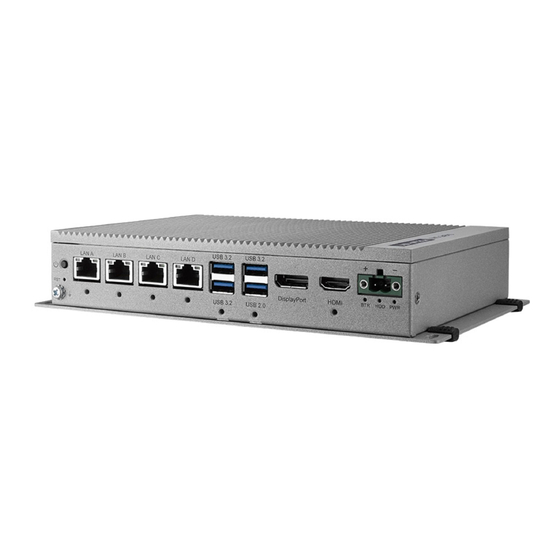

Advantech UNO-2484G V2 Startup Manual

UNO-2484G V2 Intel® Core™ 11th i7/i5/i3/
Celeron® Processor Modular Box PC
Startup Manual
Packing List
Before you begin installing your card, please make sure that
the following items have been shipped:
1. UNO-2484G V2
2. 1 x plug-in block for power wiring
3. Simplified Chinese manual
4. Quick Start Guide
5. Warranty card
6. Thermal pad M.2 M key module: 1990038768N010
7. Thermal pad M.2 B key module: 1990038769N010
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our sup-
port website for UNO-2484G V2 at:
Part No. 2041248400
Declaration of Conformity
CE
This product has passed the CE test for environmental
specifications when shielded cables are used for external
wiring. We recommend the use of shielded cables. This
type of cable is available from Advantech. Please contact
your local supplier for ordering information.
Test conditions for passing also include the equipment
being operated within an industrial enclosure. In order to
protect the product from damage caused by electrostatic
discharge (ESD) and EMI leakage, we strongly recommend
the use of CEcompliant industrial enclosure products.
FCC Class A
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio fre-
quency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference
to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference. In
this event, users are required to correct the interference at
their own expense.
Specifications
Processor System
• Intel® Core™ 11th i7/i5/i3 Processor
Memory
• Built-in 8GB DDR4 3200 MHz, supports up to 64GB (2
slots)
Graphics
• Intel® Iris® Xe Graphics
Ethernet
• LAN A: Intel i219-LM 1Gb/s, IEEE 802.3, 802.1as/1588
• LAN B-D: Intel® i226-LM 2.5Gb/s, IEEE 802.3,
802.1as/1588
Expansion/Storage
• 1 x M.2 B key slot (USB Signal for 3042/3052 LTE/5G/
LTE module, SATA signal for storage)
• 1 x 2.5" SSD SATA drive bay (support SSD/HDD heightup
to 9.5mm)
***Support RAID0/RAID1 with 2.5" SSD and M.2 B key
• 1 x M.2 M key (PCIex4) supports 2280 NVME SSD
• 2 x mPCIe slot (PCIe, USB2.0 signal)
1st Edition
August 2023
2242 SSD.
UNO-2484G V2 Startup Manual 1
