12.2.4. VESA mounting hole pattern
The rear side of the DLT-V72 has a VESA-compatible mounting hole pattern with 75 x
75 mm for a RAM Mount bracket or swivel mounting.
Screw-in depth VESA mounting hole pattern: M6 x 6 mm
Suitable mounting material: Cylinder-head screws int.hex DIN912 M6
Washers ISO 8738 (DIN 1440)-A6-A2
DLT-V72 Series User Manual V2.70

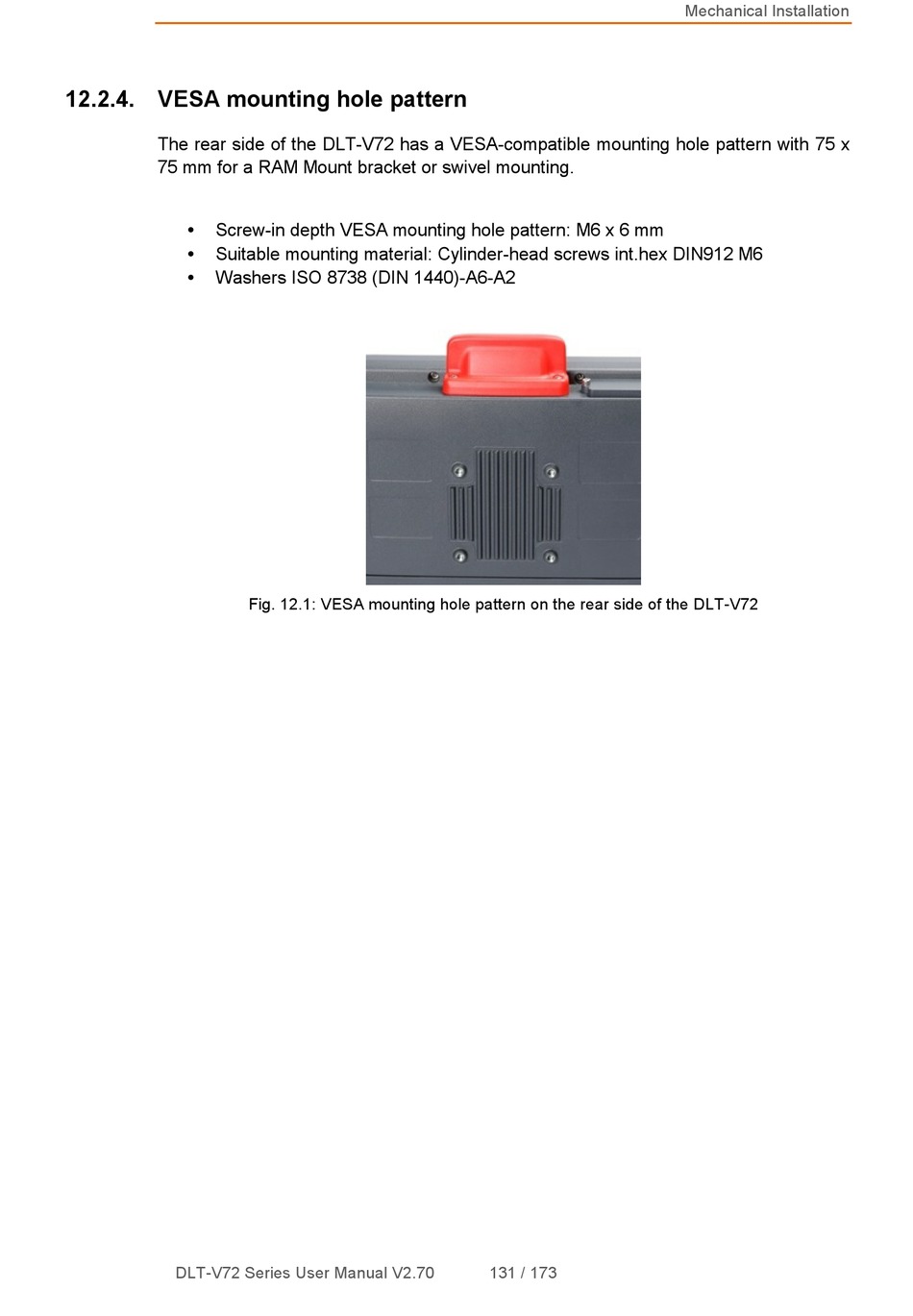

Fig. 12.1: VESA mounting hole pattern on the rear side of the DLT-V72
131 / 173
Mechanical Installation
