Power consumption
DLT-V7210 (all model types)
DLT-V7212 (all model types)
Power supply unit fuses
Power supply unit
DC-16
The symbol for the fuse is FA. You will find the exact position on the sticker located on
the connection plate of the DLT-V72.
5.4.1.

DC voltage supply connection

Version: Phoenix Combicon, 3-pin.
External view:
Explanation: "Ignition on" means that a control signal can be routed to this connection
(e.g., ignition of a vehicle), that matches the supply voltage level and is able to supply at
least 1 W to the DLT-V72.
The signal reference is DC-.
DLT-V72 Series User Manual V2.70
Fuse type
5 x 20 mm T 12,5 A
H / 250 V

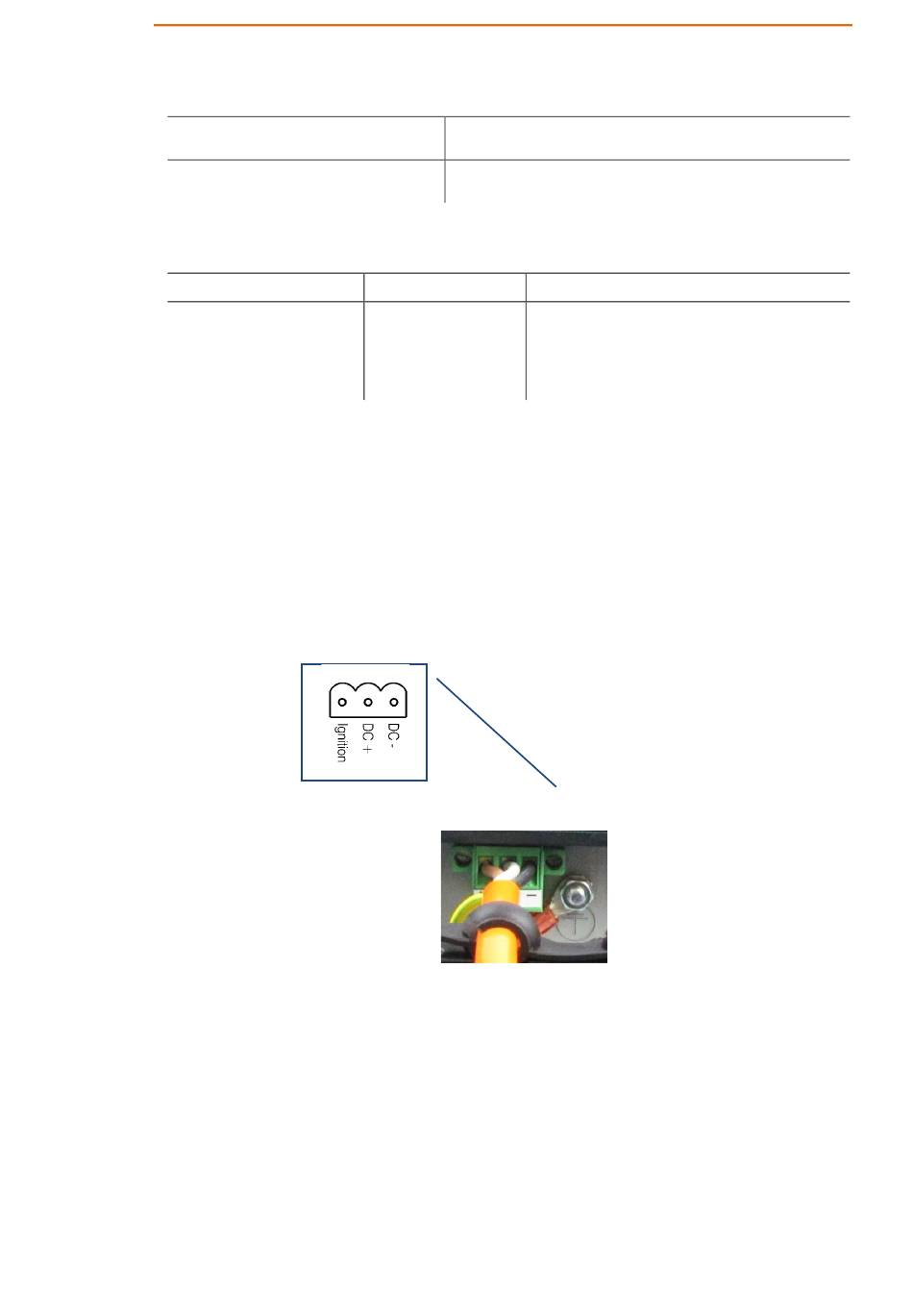

Fig. 5.6: DC power supply connector with connector detail view

Typically 25 W; Standby typically 1 W
Typically 30 W; Standby typically 1 W
Example
Schurter 0001.2515
Siba 179200.12,5
or similar produced by other
manufacturers
39 / 173
Technical Data – Device
