6. Select POS Event recording type.
7. Set the POS event triggered recording schedule. Refer to

7.10 Configure Picture Capture

Picture refers to live picture capture in continuous or event recording type.
1. Go to Camera > Encoding Parameters > Capture.
2. Set the picture parameters.
•
Resolution: Set the resolution of the picture to capture.
•
Picture Quality: Set the picture quality to low, medium or high.
•
Interval: The interval of capturing live picture.
3. Go to Storage > Capture Schedule.
4. Select the camera to configure the picture capture.
5. Set the picture capture schedule. Refer to Chapter 7.4 Configure Recording Schedule for details.
UM DS-77xxNXI-I4/16P/4S 050619NA

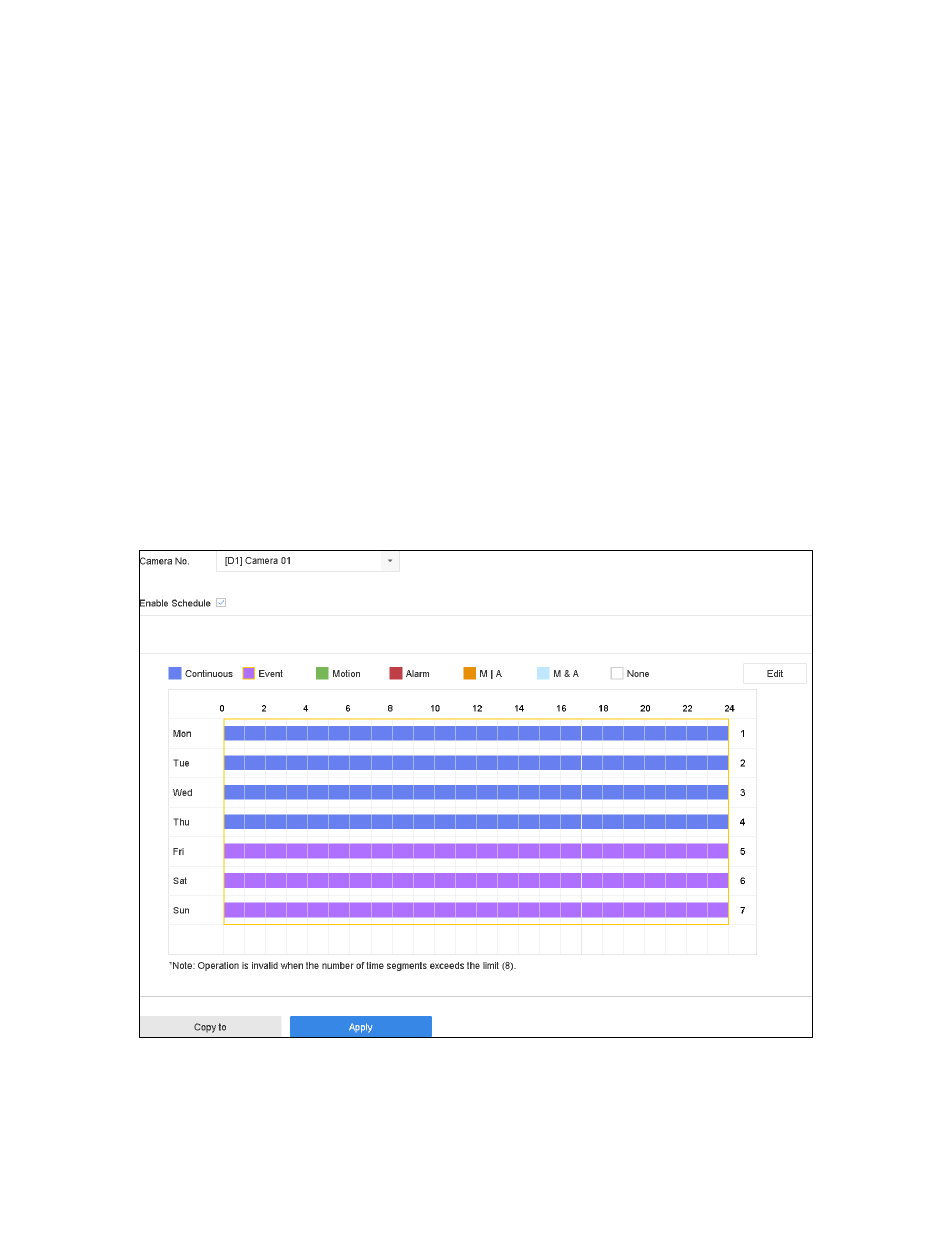

Figure 7-10 Set Picture Capture Schedule
Chapter 7.4 Configure Recording Schedule
.
