HIKVISION DS-7716NXI-I4/16P/4S User Manual page 149

DS-77xxNXI-I4/16P/4S NVR User Manual
2. Configure the following e-mail settings.
•
Enable Server Authentication: Check to enable the function if the SMTP server requires user
authentication and enter user name and password accordingly.
•
SMTP Server: The IP address of SMTP Server or host name (e.g., smtp.263xmail.com).
•
SMTP Port: The SMTP port. The default TCP/IP port used for SMTP is 25.
•
Enable SSL/TLS: Check to enable SSL/TLS if required by the SMTP server.
•
Sender: The name of the sender.
•
Sender's Address: Sender's address.
•
Select Receivers: Select the receiver. Up to three receivers can be configured.
•
Receiver: The name of the receiver.
•
Receiver's Address: The e-mail address of user to be notified.
•
Enable Attached Picture: Check to enable the function if you want to send e-mail with attached alarm
images. The interval is the time between two adjacent alarm images.
3. Click Apply.
4. (Optional) Click Test to send a test e-mail.
UM DS-77xxNXI-I4/16P/4S 050619NA

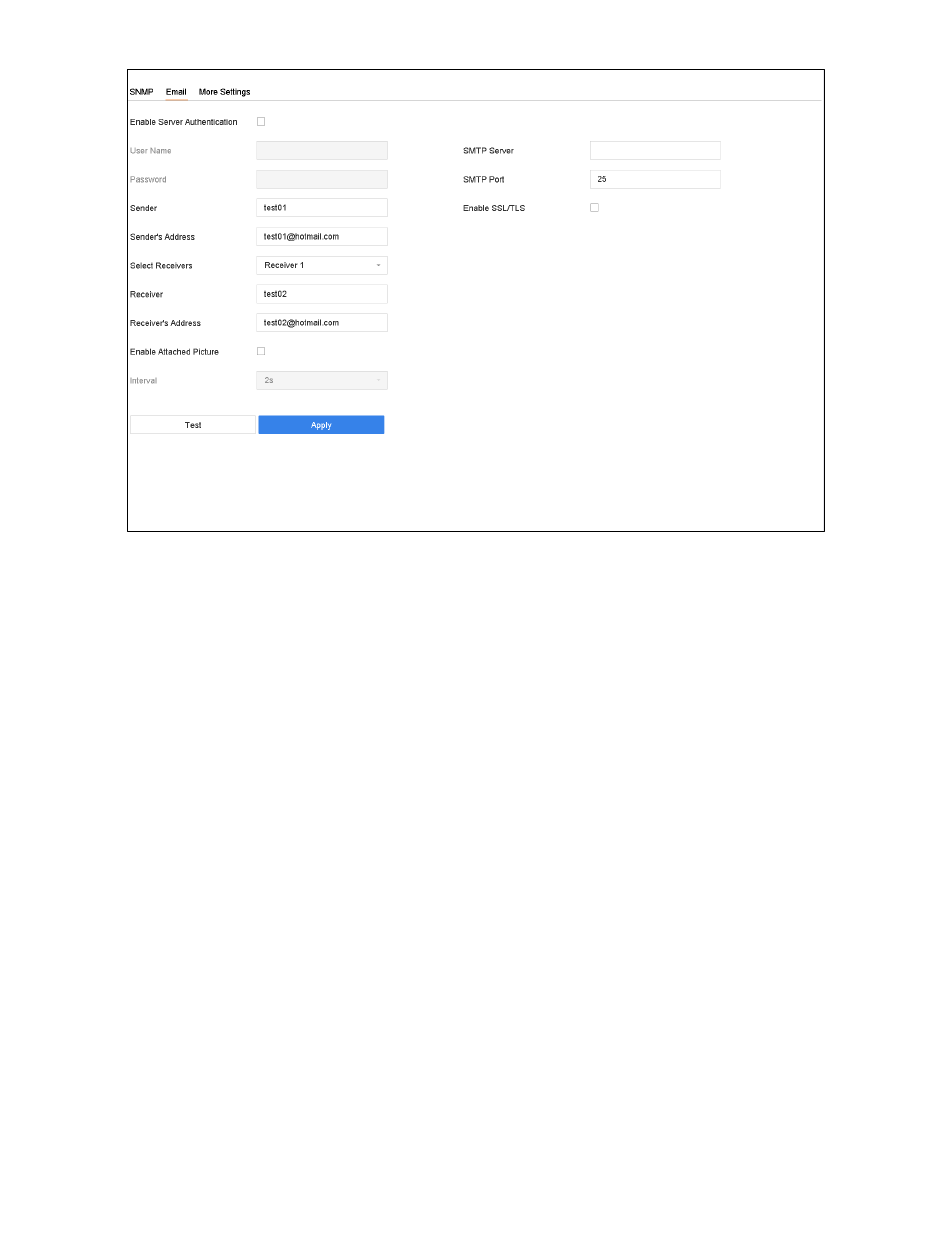

Figure 16-10 Email Settings
149
