12.7 Region Exiting Detection

Purpose
Region exiting detection function detects objects that exit from a pre-defined virtual region.
1. Go to System > Event > Smart Event.
2. Click Region Exiting.
3. Select a Camera to configure.
4. Check Enable Region Exiting Detection.
5. (Optional) Check Save VCA Picture to save the captured pictures of region exiting detection.
6. Set Target Detection as Human Body or Vehicle.
•
Human Body: Discard non-human body pictures and videos not triggered by region exiting detection.
•
Vehicle: Discard non-vehicle pictures and videos not triggered by region exiting detection.
7. Follow the steps to set the detection rules and detection areas.
1) Select an Arming Region to configure. Up to four regions are selectable.
2) Drag the sliders to set Sensitivity.
UM DS-77xxNXI-I4/16P/4S 050619NA

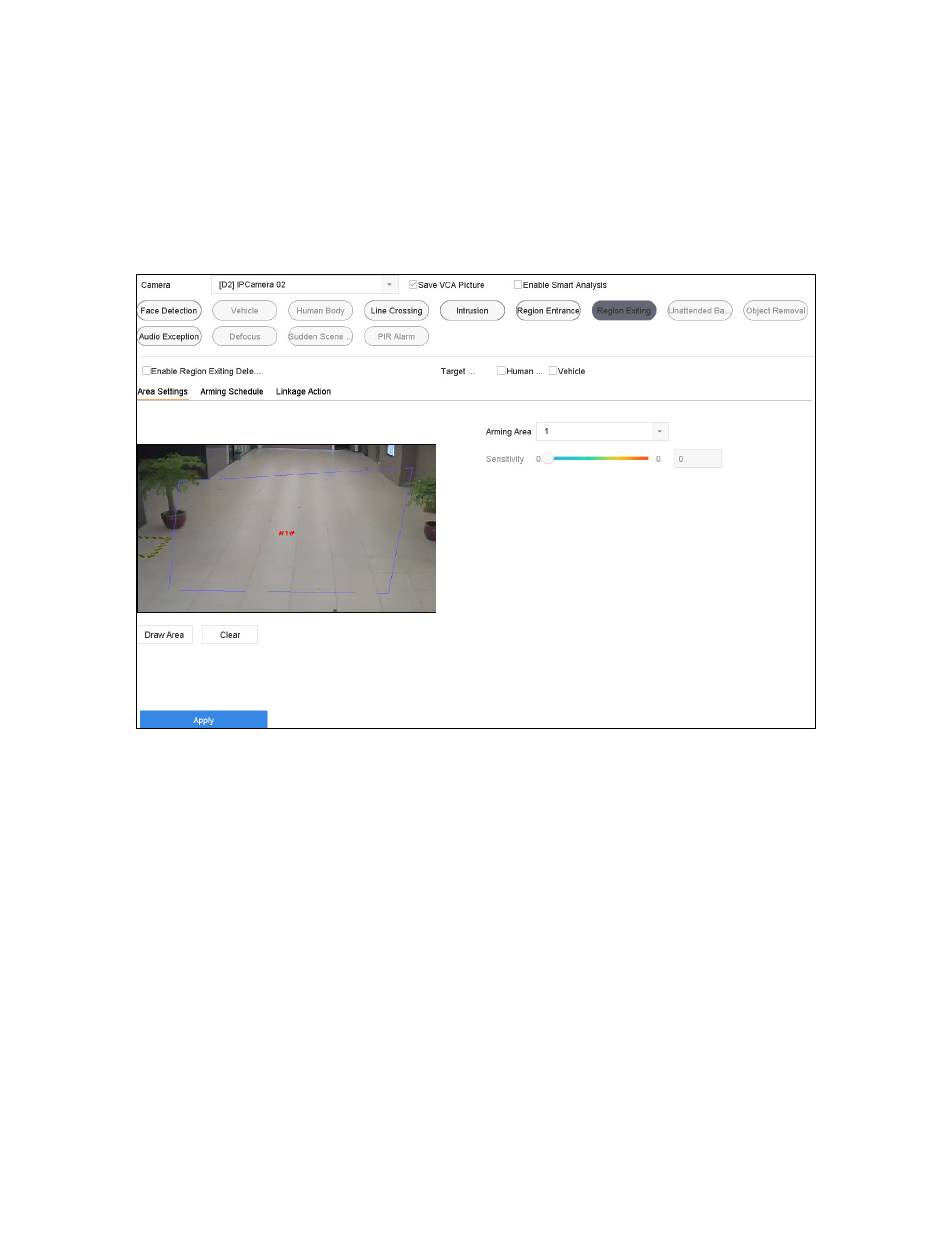

Figure 12-7 Region Exiting Detection
