2.2.12 Loudspeaker Type

Using the amplified output, the CyberData InformaCast Enabled Loudspeaker Amplifier (PoE)
supports the 011471 Horn or equivalent unamplified loudspeaker.

2.2.13 Cabling/Wiring

Using the amplified output, you may connect a 011471 loudspeaker or equivalent unamplified
speaker to a SIP Loudspeaker Amplifier (PoE-powered) with good quality speaker wire that is 16
gauge and limited to 25 feet in length with two loudspeakers or 50 feet in length with one
loudspeaker.
Operations Guide
Installing the InformaCast Enabled Loudspeaker Amplifier (PoE)
InformaCast Enabled Loudspeaker Amplifier (PoE) Setup

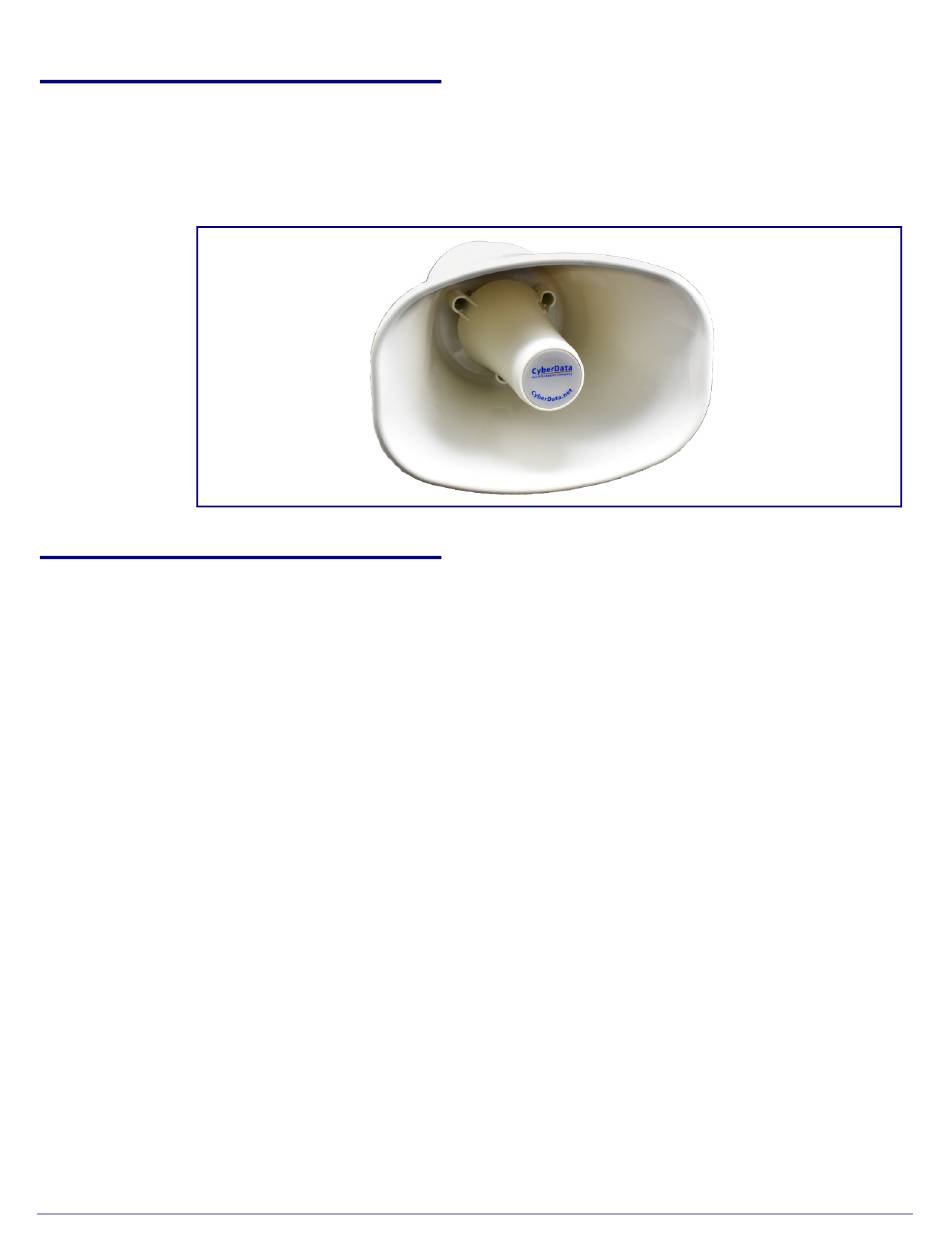

Figure 2-17. 011471 Horn
