CyberData Syn-Apps 011413 Installation Quick Reference

Mounting the Enclosure
To mount the enclosure:
1. Prepare holes for the screws.
2. Plug in the power adapter and use
the Power (PWR) LED to verify that
the power is on.
3. Plug the ethernet cable into the
device. The Link/Activity (Link/
Act.) LED verifies the network
connection.
4. For wall mounting, use the three
#8 x 1-1/4-inch Pan Head Phillips
Self-Tapping Screws.
Contacting Syn-Apps
Corporate Headquarters
Syn-Apps LLC
2812 N Norwalk
Suite 112
Mesa, AZ 85215
Phone: 480-664-6071 / 866-664-6071
Fax: 480-659-8999 / 866-659-8999
© 2018, Syn-Apps L.L.C. ALL RIGHTS RESERVED
Website: www.syn-apps.com
Sales: sales@syn-apps.net
Support: http://www.syn-apps.com/resources/support
Email: http://www.syn-apps.com/contact-us
931315D
Getting Started
• Download the Operations Guide PDF file from the Documents tab at the following webpage:
https://www.cyberdata.net/products/011413
• Create a plan for the locations of your paging amplifiers.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the
installation instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: The Syn-Apps enabled Loudspeaker Amplifier enclosure is not rated for any AC voltages!
Parts
(1) Wall Mounting Kit
Quick Reference
Quick Reference
Installation Quick Reference

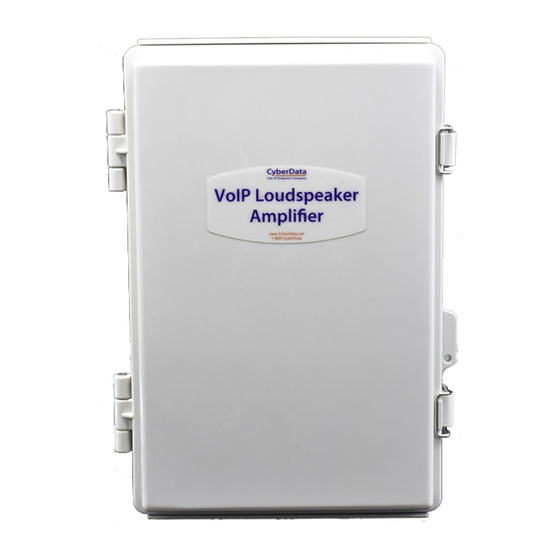

Syn-Apps enabled
Loudspeaker Amplifier (PoE)
011413
Parameter Factory Default Setting
IP Addressing DHCP
a
IP Address 10.10.10.10
Web Access Username admin
Web Access Password admin
a
Subnet Mask 255.0.0.0
a
Default Gateway 10.0.0.1
a. Default if there is not a DHCP server present.
(1) Assembly
(4) #8 Plastic Anchors (4) #8 x 1-1/4" Pan Head Phillips Self-Tapping Screws
931315D
(1) Enclosure
© 2018, Syn-Apps L.L.C. ALL RIGHTS RESERVED
