Installing the InformaCast Enabled Loudspeaker Amplifier (PoE)
16
InformaCast Enabled Loudspeaker Amplifier (PoE) Setup
2.2.5 Connecting the Speaker Wires
Connect the speaker wires to the terminal block as shown in
Figure
2-5.

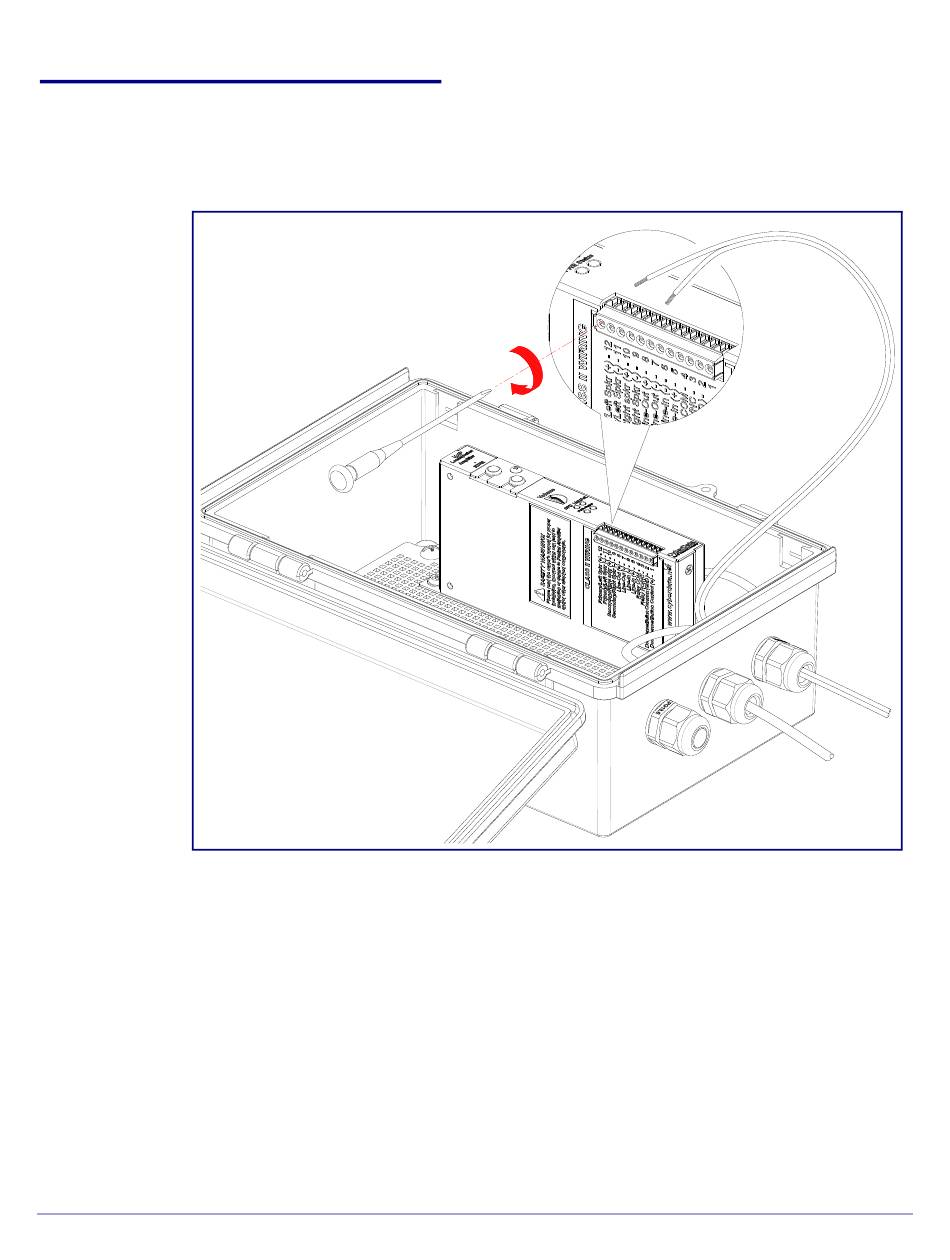

Figure 2-5. Connecting the Speaker Wires
Tool Required for
Speaker Wires Installation:
12 (+)
1) A Slotted 3/32" Width or
0.4 x 2.5mm Screwdriver
9 ( -) -
Operations Guide
931277I
CyberData Corporation
