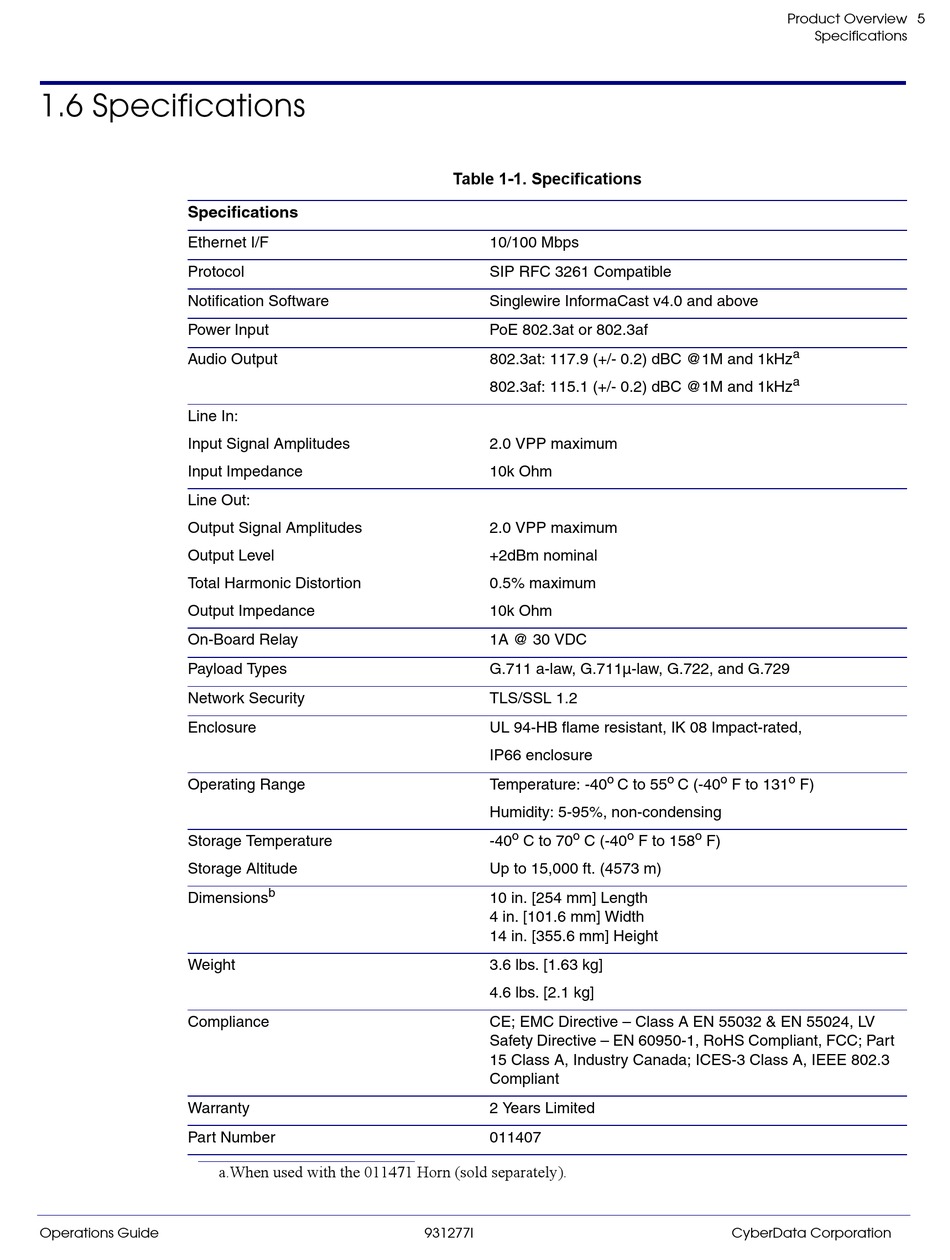

1.6 Specifications

Specifications
Ethernet I/F
Protocol
Notification Software
Power Input
Audio Output
Line In:
Input Signal Amplitudes
Input Impedance
Line Out:
Output Signal Amplitudes
Output Level
Total Harmonic Distortion
Output Impedance
On-Board Relay
Payload Types
Network Security
Enclosure
Operating Range
Storage Temperature
Storage Altitude
Dimensions
Weight
Compliance
Warranty
Part Number
Operations Guide
b
a.When used with the 011471 Horn (sold separately).
Table 1-1. Specifications
10/100 Mbps
SIP RFC 3261 Compatible
Singlewire InformaCast v4.0 and above
PoE 802.3at or 802.3af
802.3at: 117.9 (+/- 0.2) dBC @1M and 1kHz
802.3af: 115.1 (+/- 0.2) dBC @1M and 1kHz
2.0 VPP maximum
10k Ohm
2.0 VPP maximum
+2dBm nominal
0.5% maximum
10k Ohm
1A @ 30 VDC
G.711 a-law, G.711µ-law, G.722, and G.729
TLS/SSL 1.2
UL 94-HB flame resistant, IK 08 Impact-rated,
IP66 enclosure
Temperature: -40
Humidity: 5-95%, non-condensing
o o
-40 C to 70 C (-40
Up to 15,000 ft. (4573 m)
10 in. [254 mm] Length
4 in. [101.6 mm] Width
14 in. [355.6 mm] Height
3.6 lbs. [1.63 kg]
4.6 lbs. [2.1 kg]
CE; EMC Directive – Class A EN 55032 & EN 55024, LV
Safety Directive – EN 60950-1, RoHS Compliant, FCC; Part
15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3
Compliant
2 Years Limited
011407
931277I
o o o
C to 55 C (-40 F to 131
o o
F to 158 F)
