2.2.7 InformaCast Enabled Loudspeaker Amplifier (PoE) System Installation
and Connection Options
The following figures show the connection options for the InformaCast Enabled Loudspeaker
Amplifier (PoE).
Door Sense/Button Common (GND) - 2
Door Sense/Button Contact (+) - 1
When line-in is enabled on
the device, the audio
received from the line-in
connection will be played
to the speaker(s) and line-
out connection as the low-
est priority audio.
Operations Guide

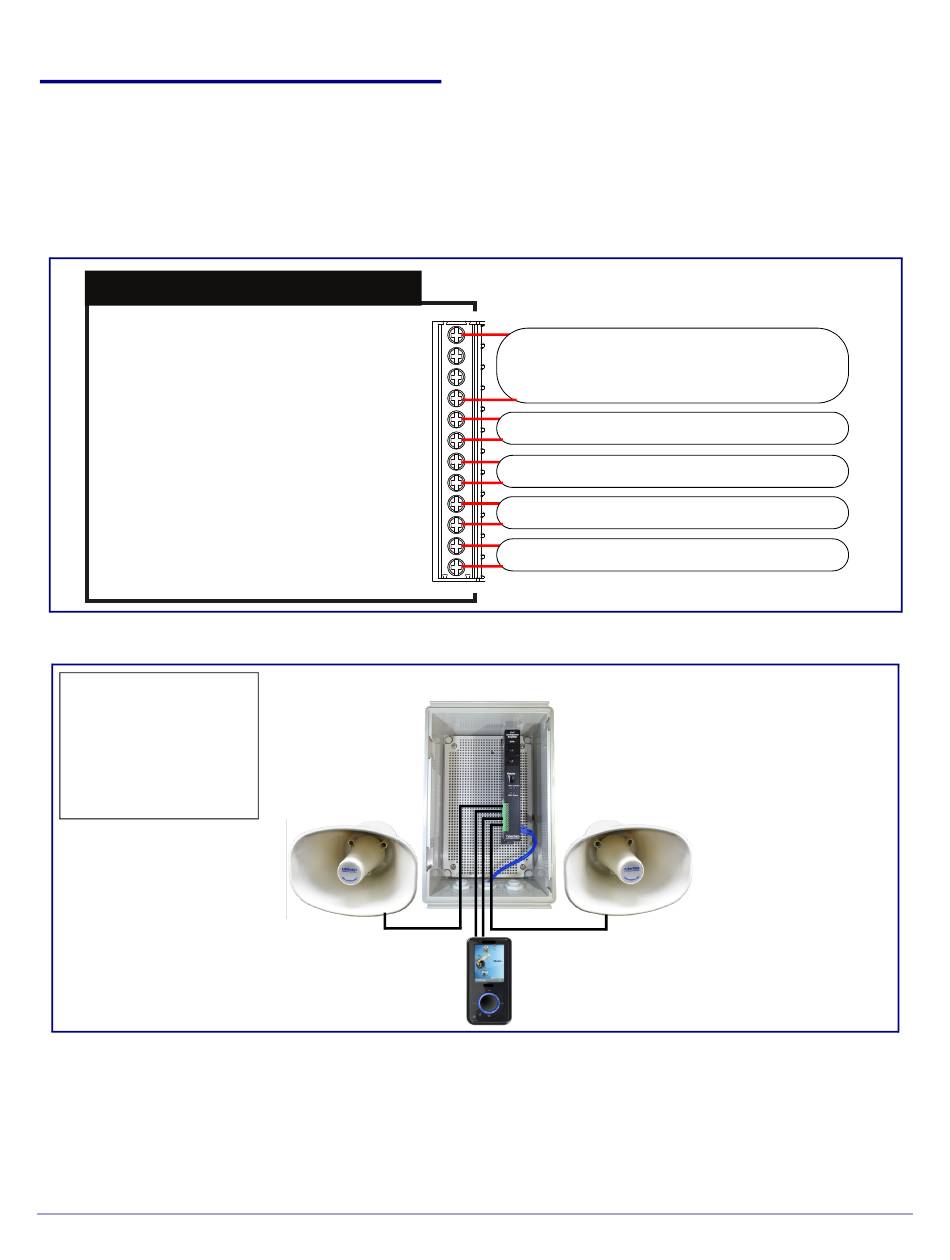

Figure 2-9. InformaCast Enabled Loudspeaker Amplifier (PoE) Connections
CLASS II WIRING
Mono(+)/Left Spkr (+) - 12
Left Spkr (-) - 11
Right Spkr (+) - 10
Mono(-)/Right Spkr (-) - 9
Line-Out (+) - 8
Line-Out (-) - 7
Line-In (-) - 6
Line-In (+) - 5
Relay COM - 4
Relay NO/NC - 3
Figure 2-10. Line-In Connection
Installing the InformaCast Enabled Loudspeaker Amplifier (PoE)
InformaCast Enabled Loudspeaker Amplifier (PoE) Setup
(Figure
Line-Out Connection (10K Ohm)
Line-In Connection
Relay Connection
Sensor Connection
Loudspeaker Amplifier
Music Source
931277I
Speaker Connections
2-6) (Figure 2-7)(Figure 2-8)
(Figure 2-10)
(Figure 2-11)
(Figure 2-12)
