2.2.8 Strobe Connections Behind the Port Cover

See
Amplifier (PoE).
See
Microphone Connections
Name
MIC IN
Strobe Connections
Name
STROBE
Operations Guide

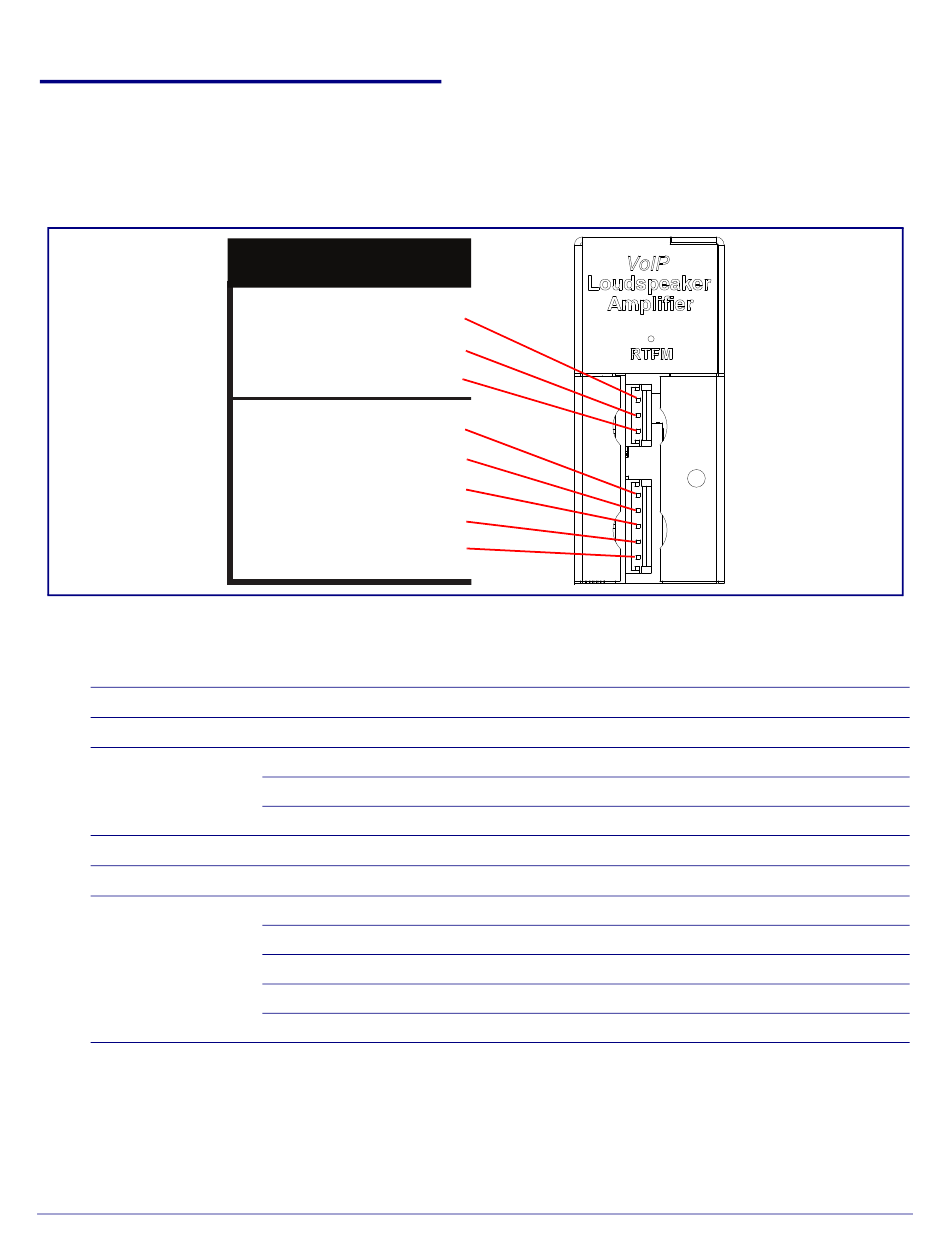

Figure 2-13 for the additional connection options for the InformaCast Enabled Loudspeaker
Figure 2-13. Connections Behind the Port Cover
CLASS II WIRING
MIC IN
STROBE
Table 2-3 for the descriptions of the connections behind the port cover.
Table 2-3. Connections Behind the Port Cover
Connection
J6-1
J6-2
J6-3
Connection
J9-1
J9-2
J9-3
J9-4
J9-5
Installing the InformaCast Enabled Loudspeaker Amplifier (PoE)
InformaCast Enabled Loudspeaker Amplifier (PoE) Setup
3
2
1
5
4
3
2
1
Description
Microphone chassis ground connections
Microphone positive input
Microphone negative input
Description
Ground
Strobe positive power (+24V)
Ground
I2C data
I2C clock
