CyberData 011407 Operation Manual

Informacast enabled loudspeaker amplifier (poe)
Hide thumbs Also See for 011407:
Table of Contents

Advertisement

Quick Links

Download this manual

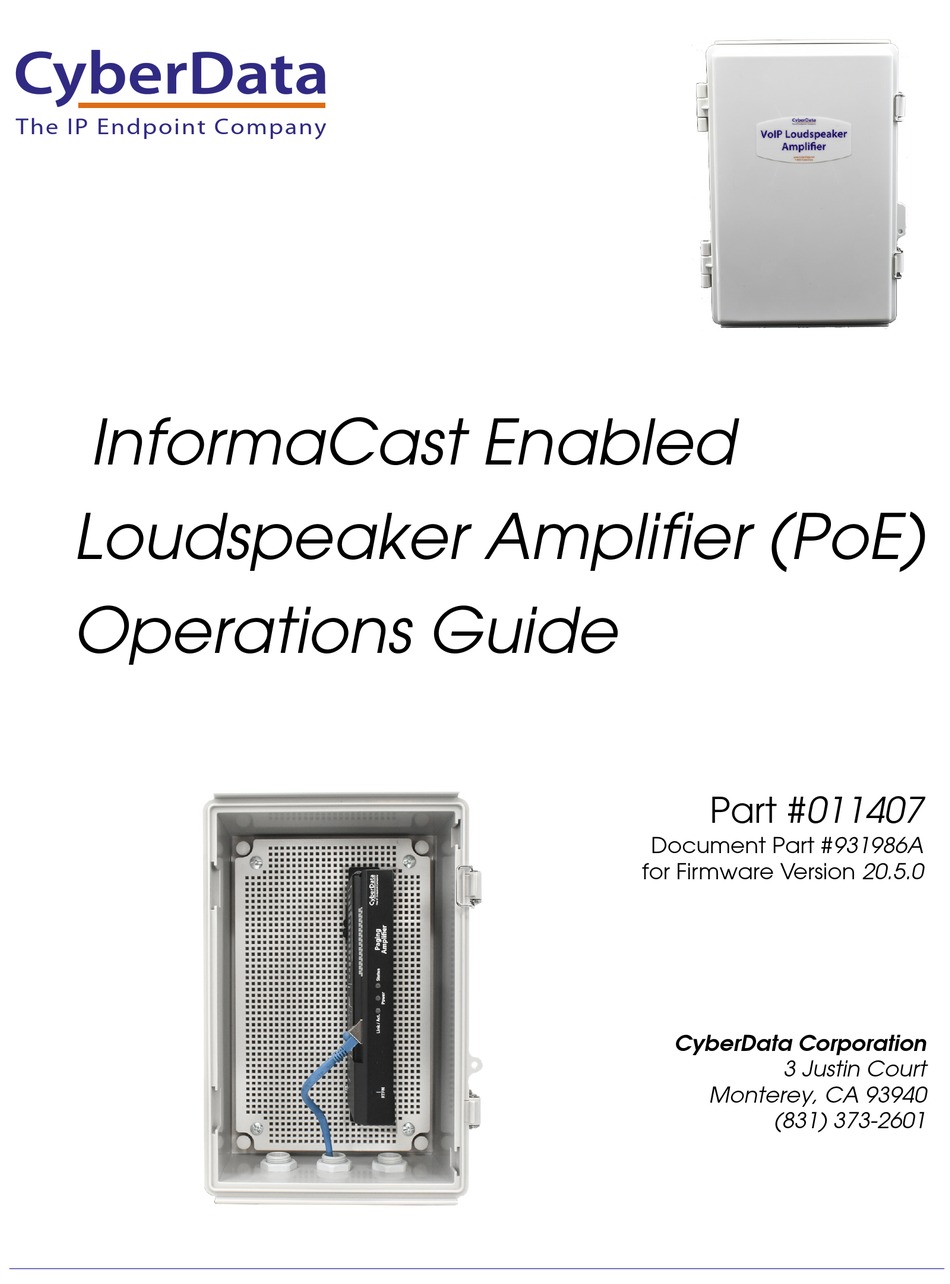

The IP Endpoint Company
InformaCast Enabled
Loudspeaker Amplifier (PoE)
Operations Guide
Part #011407
Document Part #931986A
for Firmware Version 20.5.0
CyberData Corporation
3 Justin Court
Monterey, CA 93940
(831) 373-2601
