CyberData 011407 Operation Manual

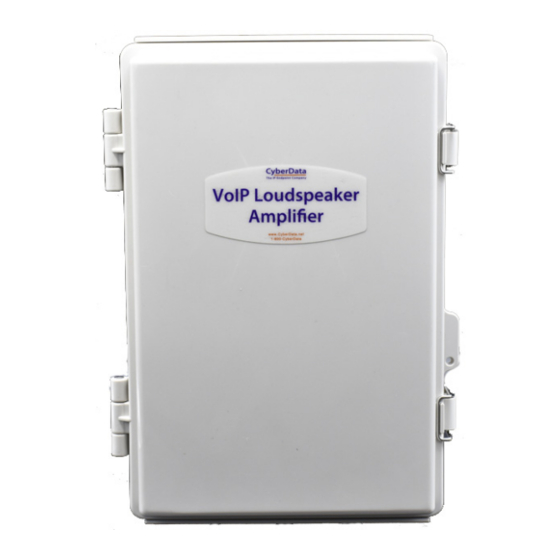

Singlewire informacast loudspeaker amplifier (poe)
Hide thumbs Also See for 011407:
Table of Contents

Advertisement

Quick Links

Download this manual

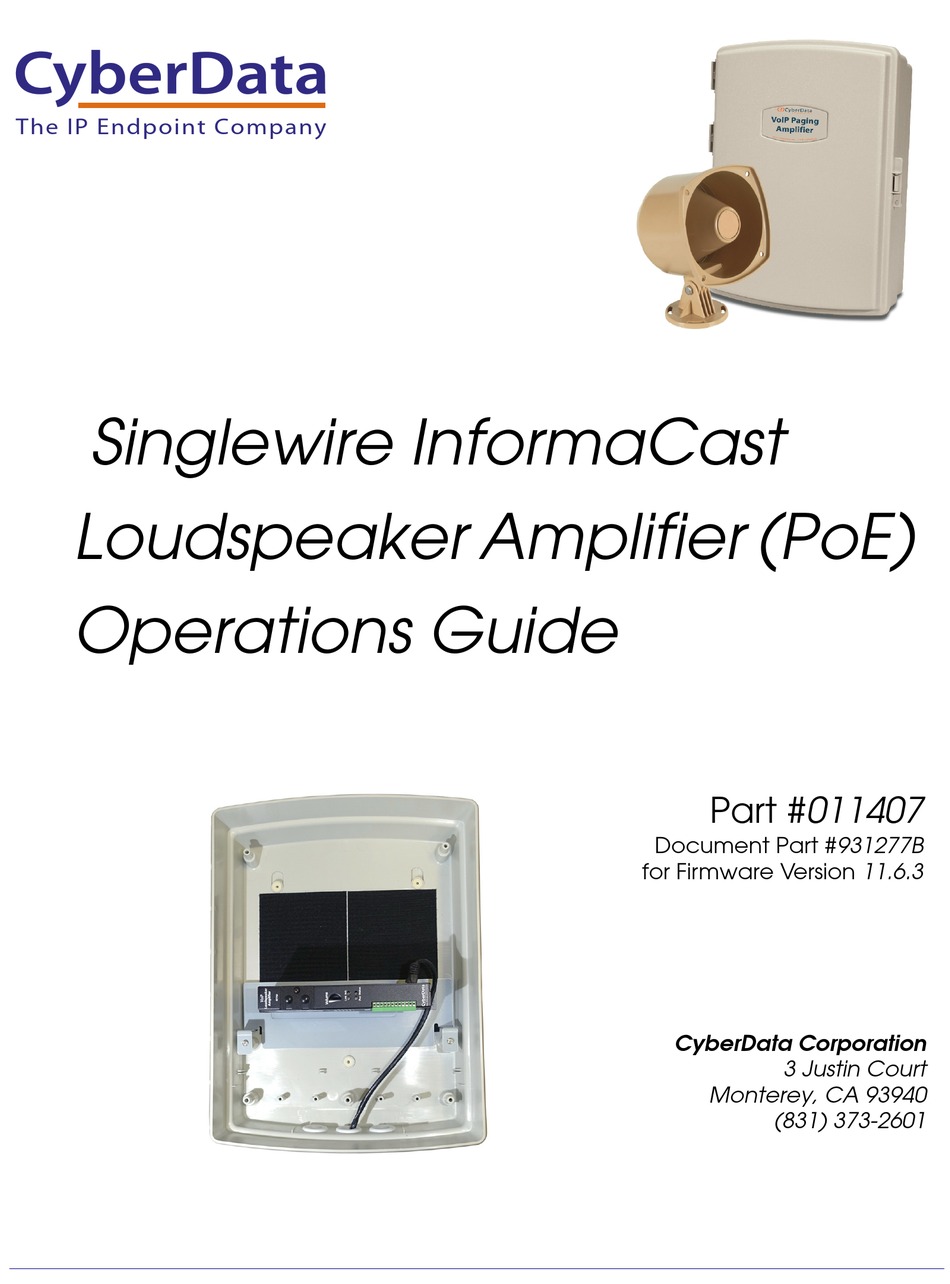

The IP Endpoint Company
Singlewire InformaCast
Loudspeaker Amplifier (PoE)
Operations Guide
Part #011407
Document Part #931277B
for Firmware Version 11.6.3
CyberData Corporation
3 Justin Court
Monterey, CA 93940
(831) 373-2601

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 011407 and is the answer not in the manual?

Questions and answers

Related Manuals for CyberData 011407

Summary of Contents for CyberData 011407

  • Page 1 The IP Endpoint Company Singlewire InformaCast  Loudspeaker Amplifier (PoE)  Operations Guide Part #011407 Document Part #931277B for Firmware Version 11.6.3 CyberData Corporation 3 Justin Court Monterey, CA 93940 (831) 373-2601...
  • Page 2 CyberData Corporation. This manual, and the products, software, firmware, and/or hardware described in this manual are the property of CyberData Corporation, provided under the terms of an agreement between CyberData Corporation and recipient of this manual, and their use is subject to that agreement and its terms.
  • Page 3 Browsers Supported The following browsers have been tested against firmware version 6.5.0: • Internet Explorer (version: 10) • Firefox (also called Mozilla Firefox) (version: 23.0.1 and 25.0) • Chrome (version: 29.0.1547.66 m) • Safari (version: 5.1.7) Operations Guide 931277B CyberData Corporation...
  • Page 4 Potential safety hazards are identified in this manual through the use of words Danger, Warning, and Caution, the specific hazard type, and pictorial alert icons. Operations Guide 931277B CyberData Corporation...
  • Page 5 To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. GENERAL ALERT Warning The PoE connector is intended for intra-building connections only and does not route to the outside plant. GENERAL ALERT Operations Guide 931277B CyberData Corporation...
  • Page 6 Private Branch Exchange Power over Ethernet (as per IEEE 802.3af standard) RTFM Reset Test Function Management Session Initiated Protocol u-law A companding algorithm, primarily used in the digital telecommunication Unified Communications VoIP Voice over Internet Protocol Operations Guide 931277B CyberData Corporation...

  • Page 7: Table Of Contents

    B.1.1 In a LINUX Environment ....................94 B.1.2 In a Windows Environment ..................94 Appendix C Troubleshooting/Technical Support C.1 Frequently Asked Questions (FAQ) ..................95 C.2 Documentation ........................95 C.3 Contact Information ........................96 C.4 Warranty and RMA Information ....................96 Index Operations Guide 931277B CyberData Corporation...

  • Page 8: Chapter 1 Product Overview

    To identify the Singlewire InformaCast Loudspeaker Amplifier (PoE), look for a model number label similar to the one shown in Figure 1-1. Confirm the following: • The model number on the label should be 011407. Figure 1-1. Model Number Label WWW.CYBERDATA.NET SINGLEWIRE INFORMACAST LOUDSPEAKER AMPLIFIER,...

  • Page 9: Typical System Installation

    To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. GENERAL ALERT Warning The PoE connector is intended for intra-building connections only and does not route to the outside plant. GENERAL ALERT Operations Guide 931277B CyberData Corporation...

  • Page 10: Product Features

    DTMF controlled relay • Direct 8 Ohm speaker drive • User-uploadable tones and messages • Digital and manual volume control • Second SIP endpoint "Night Ringer" • Autoprovisioning • Auto-call voice message from input port sense Operations Guide 931277B CyberData Corporation...

  • Page 11: Supported Protocols

    PCMU (G.711 mu-law) PCMA (G.711 A-law) G.722 Packet Time 20 ms 1.5 Supported SIP Servers The following link contains information on how to configure the Singlewire InformaCast Loudspeaker Amplifier (PoE) for the supported SIP servers: http://www.cyberdata.net/connecting-to-ip-pbx-servers/ Operations Guide 931277B CyberData Corporation...

  • Page 12: Specifications

    1.4 lbs. [0.63 kg] Boxed Weight 2.0 lbs. [0.90 kg] Part Number 011407 Loudspeaker Part Number 011068 a.When used with the 011068 Mini Horn. b. Dimensions are measured from the perspective of the product being upright with the front of the product facing you.

  • Page 13: Typical Warehouse Paging Setup

    Horn Speaker Horn Speaker Horn Speaker Horn Speaker Horn Speaker Horn Speaker Horn to Loud Speaker Amplifier Horn Speaker to Horn Speaker Office Bathroom Typical Example of a 70,000 Square Feet Warehouse Paging Set up Operations Guide 931277B CyberData Corporation...

  • Page 14: Chapter 2 Installing The Singlewire Informacast Loudspeaker Amplifier (Poe)

    Part Name Illustration Singlewire InformaCast Loudspeaker Amplifier (PoE) Assembly Enclosure Installation Quick Reference Guide Singlewire InformaCast Loudspeaker Amplifier (PoE) Mounting Accessory Kit, RoHS (part #071057A) which includes: (3)Plastic Ribbed Anchors (3) #6 Sheet Metal Screws Operations Guide 931277B CyberData Corporation...

  • Page 15: Singlewire Informacast Loudspeaker Amplifier (Poe) Setup

    Singlewire InformaCast Loudspeaker Amplifier (PoE) Setup 2.2 Singlewire InformaCast Loudspeaker Amplifier (PoE) Setup Set up and configure each Singlewire InformaCast Loudspeaker Amplifier (PoE) before you mount it. CyberData delivers each Singlewire InformaCast Loudspeaker Amplifier (PoE) with the factory default values indicated in Table 2-2: Table 2-2.

  • Page 16: Singlewire Informacast Loudspeaker Amplifier (Poe) Components

    Status LED will blink during a page when it is online. Power (PWR) LED (GREEN/BLUE) 802.3af) The Power (PWR) LED is GREEN in low power mode ( 802.3at) . BLUE during high power mode ( The IP Endpoint Company Operations Guide 931277B CyberData Corporation...

  • Page 17: Nema Box Components Of The Singlewire Informacast Loudspeaker Amplifier (Poe)

    2.2.2 NEMA Box Components of the Singlewire InformaCast Loudspeaker Amplifier (PoE) Figure 2-5 shows all of the NEMA box components of the Singlewire InformaCast Loudspeaker Amplifier (PoE). Figure 2-5. Loudspeaker Amplifier Components—PoE RTFM Switch Ethernet Connection Speaker Connection LEDs Volume Operations Guide 931277B CyberData Corporation...

  • Page 18: Connecting The Singlewire Informacast Loudspeaker Amplifier (Poe)

    Standard 1 Speaker Configuration (802.3af mode) 8 Ohms *Note: Use 16 gauge wire coming out of screw terminals. 16 gauge wire Twist wire nuts Note: Use wire nuts to connect wire from the speakers to 16 gauge wire. Operations Guide 931277B CyberData Corporation...
  • Page 19 Standard 1 Speaker Configuration (802.3at mode) 8 Ohms *Note: Use 16 gauge wire coming out of screw terminals. 16 gauge wire Twist wire nuts Note: Use wire nuts to connect wire from the speakers to 16 gauge wire. Operations Guide 931277B CyberData Corporation...
  • Page 20 (802.3at mode) (802.3at mode) 8 Ohms 8 Ohms 16 gauge wire Twist wire nuts 2 speakers in parallel (4 Ohm total) Note: Use wire nuts to connect wire from the speakers to 16 gauge wire. Operations Guide 931277B CyberData Corporation...

  • Page 21: Singlewire Informacast Loudspeaker Amplifier (Poe) System Installation And Connection Options

    Figure 2-10. Line-In Connection Loudspeaker Amplifier When line-in is enabled on the device, the audio received from the line-in connection will be played to the speaker(s) and line- out connection as the low- est priority audio. Music Source Operations Guide 931277B CyberData Corporation...
  • Page 22 LED Strobe Light Output Contacts AC or DC-rated depending upon controlled device AC or DC requirements Power DC Power Supply Source (Max. 30 VDC @ 1A) Figure 2-12. Sensor Connection Operations Guide 931277B CyberData Corporation...

  • Page 23: Connections Behind The Port Cover

    Mic In J6-2 Microphone positive input J6-3 Microphone negative input Strobe Connections Name Connection Description J9-1 Ground Strobe Power J9-2 Strobe positive power (+24V) J9-3 Ground Strobe Data J9-4 I2C data Strobe CLK J9-5 I2C clock Operations Guide 931277B CyberData Corporation...

  • Page 24: Connecting The Strobe

    2. Connect the Network Cable to the Paging Amplifier. See Figure 2-14. Figure 2-14. Connecting the Strobe then Connect Network Cable in to Paging Amplifier. Rubber Grommets Network Cable Plugged in to Network Port Network Cable Note: Network Cable is Not Included. Operations Guide 931277B CyberData Corporation...
  • Page 25 Slide Cover Plate through Slot on Cable Grommet. Strobe Cable Kit Reinstall Mounting Screw to Secure Cover Plate. (Part of RGB Strobe) Back Plate Mounting Screw Cable Grommet Hole Plug & Mounting Grommet Screw Slot Slot to J9 Cover Plate RGB Strobe Operations Guide 931277B CyberData Corporation...

  • Page 26: Singlewire Informacast Loudspeaker Amplifier (Poe) Jumpers

    Table 2-5 for details about the Singlewire InformaCast Loudspeaker Amplifier (PoE) connection. Table 2-5. Singlewire InformaCast Loudspeaker Amplifier (PoE) Connection Connection Connection Details Location Ethernet Use a RJ 45 cable. Singlewire InformaCast Loudspeaker Amplifier (PoE) Operations Guide 931277B CyberData Corporation...

  • Page 27: Loudspeaker Type

    Singlewire InformaCast Loudspeaker Amplifier (PoE) Setup Loudspeaker Type 2.2.9 Loudspeaker Type Using the amplified output, the CyberData Singlewire InformaCast Loudspeaker Amplifier (PoE) supports the 011068 Loudspeaker or equivalent unamplified loudspeaker. Figure 2-17. 011068 Loudspeaker 2.2.10 Cabling/Wiring Using the amplified output, you may connect a 011068 loudspeaker or equivalent unamplified...

  • Page 28: Confirm Operation

    The Link/Activity (Link/Act.) LED blinks to indicate network traffic. Figure 2-18. Singlewire InformaCast Loudspeaker Amplifier (PoE) LEDs Volume Speed (SPD) LED Link/Activity (Link/Act.) LED (AMBER) (GREEN) Power (PWR) LED Status LED (BLUE/GREEN) (GREEN) PWR Status Operations Guide 931277B CyberData Corporation...

  • Page 29: Confirm The Ip Address And Test The Audio

    Settings 1. Press and hold the RTFM switch until you hear the device announce the words, “restoring defaults” and “rebooting”. 2. Release the RTFM switch. The device will be restored to the factory default settings. Operations Guide 931277B CyberData Corporation...

  • Page 30: Adjust The Volume

    Page, complete the following steps: 1. Go to the Home Page. 2. Select the Device Configuration Page. 3. In the Multicast Volume box, type a number between 0 (lowest) and 9 (highest). 4. Select Save. Operations Guide 931277B CyberData Corporation...
  • Page 31 2-20) on the Singlewire InformaCast Loudspeaker Amplifier (PoE) face. Note For the lineout volume, the volume is fixed and the volume control is adjusted through an external amplifier. Figure 2-21. External Volume Dial Volume External volume dial PWR Status Operations Guide 931277B CyberData Corporation...

  • Page 32: Factory Default Settings

    Table 2-7. Factory Default Settings Parameter Factory Default Setting IP Addressing DHCP IP Address 10.10.10.10 Web Access Username admin Web Access Password admin Subnet Mask 255.0.0.0 Default Gateway 10.0.0.1 a. Default if there is not a DHCP server present. Operations Guide 931277B CyberData Corporation...

  • Page 33: Singlewire Informacast Loudspeaker Amplifier (Poe) Web Page Navigation

    Link to go to the SIP page. Link to the Multicast page. Link to the Sensor page. Link to the Audiofiles page. Link to the Events page. Link to the Autoprovisioning page. Link to the Firmware page. Operations Guide 931277B CyberData Corporation...

  • Page 34: Using The Toggle Help Button

    2. You will see a question mark ( ) appear next to each web page item that has been provided with a short description by the Help feature. See Figure 2-23. Figure 2-23. Toggle Help Button and Question Marks Question mark  appears next to the web page items Toggle Help button Operations Guide 931277B CyberData Corporation...
  • Page 35 3. Move the mouse pointer to hover over the question mark ( ), and a short description of the web page item will appear. See Figure 2-24. Figure 2-24. Short Description Provided by the Help Feature A short description of the  Question mark web page item will appear Operations Guide 931277B CyberData Corporation...

  • Page 36: Log In To The Configuration Home Page

    Note You may also download CyberData’s VoIP Discovery Utility program which allows you to easily find and configure the default web address of the CyberData VoIP products.   CyberData’s VoIP Discovery Utility program is available at the following website address: http://www.cyberdata.net/assets/common/discovery.zip...
  • Page 37 Singlewire InformaCast Loudspeaker Amplifier (PoE) Setup Log in to the Configuration Home Page Figure 2-25. Home Page 407100001 v11.6.3 Operations Guide 931277B CyberData Corporation...
  • Page 38 B’casts Accepted Shows the number of B’casts accepted. B’casts Rejected Shows the number of B’casts rejected. B’casts Active Shows the number of active B’casts. Import Settings Use this button to select a configuration file to import. Operations Guide 931277B CyberData Corporation...
  • Page 39 ( ) appear next to some of the web page items. Move the mouse pointer to hover over a question mark to see a short description of a specific web page item. Operations Guide 931277B CyberData Corporation...

  • Page 40: Configure The Device

    Singlewire InformaCast Loudspeaker Amplifier (PoE) Setup Configure the Device 2.3.5 Configure the Device 1. Click the Device menu button to open the Device page. See Figure 2-26. Figure 2-26. Device Configuration Page Operations Guide 931277B CyberData Corporation...
  • Page 41 The acoustic echo canceller also has a harder time maintaining full duplex operation when in the Boost Mode. The product may drop from full duplex operation into half/duplex mode while in Boost Mode. Contact CyberData support for additional information if needed. Clock Settings Set Time with NTP Server on boot When selected, the time is set with an external NTP server when the device restarts.
  • Page 42 This is the maximum brightness for “fade” type scenes. The red LED value for the Singlewire Broadcast. Green The green LED value for the Singlewire Broadcast. Blue The blue LED value for the Singlewire Broadcast. Operations Guide 931277B CyberData Corporation...
  • Page 43 (corresponds to Ring Tone on the Audiofiles page) out of the speaker. Beep on Init Device will play the user-defined “pagetone” audio file when it boots. Beep on Page Device will play the user defined “pagetone” audio file before playing a SIP page. Operations Guide 931277B CyberData Corporation...
  • Page 44 Note You can change the Volume, Multicast Volume, Ring Volume, and Sensor Volume without rebooting the device. You must save and reboot the device for other changes to take effect. Operations Guide 931277B CyberData Corporation...
  • Page 45 Time of day to change M11.1.0/2:00:00 The date and time when daylight savings ends. The eleventh month (November) The 1st occurrence of the day (next item) in the month Sunday /2:00:00 Time of day to change Operations Guide 931277B CyberData Corporation...
  • Page 46 CST, Central US GMT-5 EST, Eastern US GMT-4 Atlantic, Canada GMT-3 Brazilia, Buenos Aries GMT-2 Mid-Atlantic GMT-1 Cape Verdes Greenwich Mean Time, Dublin GMT+1 Berlin, Rome GMT+2 Israel, Cairo GMT+3 Moscow, Kuwait GMT+4 Abu Dhabi, Muscat Operations Guide 931277B CyberData Corporation...
  • Page 47 Time Zone City or Area Zone Crosses GMT+5 Islamabad, Karachi GMT+6 Almaty, Dhaka GMT+7 Bangkok, Jakarta GMT+8 Hong Kong, Beijing GMT+9 Tokyo, Osaka GMT+10 Sydney, Melbourne, Guam GMT+11 Magadan, Soloman Is. GMT+12 Fiji, Wellington, Auckland Operations Guide 931277B CyberData Corporation...

  • Page 48: Configure The Network Parameters

    Singlewire InformaCast Loudspeaker Amplifier (PoE) Setup Configure the Network Parameters 2.3.6 Configure the Network Parameters 1. Click the Network menu button to open the Network page (Figure 2-28). Figure 2-28. Network Configuration Page Operations Guide 931277B CyberData Corporation...
  • Page 49 “trunking mode” for the VLAN tags to propagate. VLAN Priority (0-7) Specify the IEEE 802.1p VLAN priority level. Enter 1 digit. A value of 0 may cause the VLAN ID tag to be ignored. Operations Guide 931277B CyberData Corporation...
  • Page 50 Move the mouse pointer to hover over a question mark to see a short description of a specific web page item. Note You must click on the Save button and then the Reboot button for the changes to take effect. Operations Guide 931277B CyberData Corporation...

  • Page 51: Configure The Sip (Session Initiation Protocol) Parameters

    Singlewire InformaCast Loudspeaker Amplifier (PoE) Setup Configure the SIP (Session Initiation Protocol) Parameters 2.3.7 Configure the SIP (Session Initiation Protocol) Parameters 1. Click on the SIP menu button to open the SIP page (Figure 2-29). Figure 2-29. SIP Configuration Page Operations Guide 931277B CyberData Corporation...
  • Page 52 Singlewire InformaCast Loudspeaker Amplifier (PoE) Setup Configure the SIP (Session Initiation Protocol) Parameters Figure 2-30. SIP Configuration Page Operations Guide 931277B CyberData Corporation...
  • Page 53 This parameter also becomes the host portion of the SIP-URI for the device's extension on the second backup SIP server. This field can accept entries of up to 255 characters in length. Operations Guide 931277B CyberData Corporation...
  • Page 54 350ms during the duration of the event. Slow Fade Strobe will increase in brightness from 0 to the specified brightness and back to 0 over the course of about 3.5 seconds during the duration of the event. Operations Guide 931277B CyberData Corporation...
  • Page 55 SIP server. Any calls made to this extension will play a ringtone (corresponds to Night Ring on the Audiofiles page). By design, it is not possible to answer a call to the Nightringer extension. Operations Guide 931277B CyberData Corporation...
  • Page 56 350ms during the duration of the event. Slow Fade Strobe will increase in brightness from 0 to the specified brightness and back to 0 over the course of about 3.5 seconds during the duration of the event. Operations Guide 931277B CyberData Corporation...
  • Page 57 Note You must click on the Save button and then the Reboot button for the changes to take effect. Note For specific server configurations, go to the following website address: http://www.cyberdata.net/connecting-to-ip-pbx-servers/ Operations Guide 931277B CyberData Corporation...
  • Page 58 DTMF tone '2', send out DTMF tone 5, wait 6 seconds, send out DTMF tone 4, wait 4 seconds, send out DTMF tone 1 Note The maximum number of total characters in the dial-out field is 64. Operations Guide 931277B CyberData Corporation...
  • Page 59 Point-to-Point calls. The delayed DTMF functionality is available in the Point-to-Point Mode. Note Receiving point-to-point SiP calls may not work with all phones. Figure 2-31. SIP Page Set to Point-to-Point Mode Device is set to NOT register with a SiP server Operations Guide 931277B CyberData Corporation...
  • Page 60 DTMF tone '2', send out DTMF tone 5, wait 6 seconds, send out DTMF tone 4, wait 4 seconds, send out DTMF tone 1 Note The maximum number of total characters in the dial-out field is 25. Operations Guide 931277B CyberData Corporation...

  • Page 61: Configure The Multicast Parameters

    RTP audio streams. A paging zone can consist of one or many CyberData multicast group-enabled products. There is no limit to how many speakers can be in a given paging zone. Each multicast group is defined by a multicast address and port number.
  • Page 62 Singlewire InformaCast Loudspeaker Amplifier (PoE) Setup Configure the Multicast Parameters 1. Click on the Multicast menu button to open the Multicast page. See Figure 2-32. Figure 2-32. Multicast Configuration Page Operations Guide 931277B CyberData Corporation...
  • Page 63 OFF for 350ms during the duration of the event. Slow Fade Strobe will increase in brightness from 0 to the specified brightness and back to 0 over the course of about 3.5 seconds during the duration of the event. Operations Guide 931277B CyberData Corporation...
  • Page 64 SIP calls, multicast streams, ring tones, ringback tones, and nightring tones are all prioritized. Ringtones and Ringtones all play at the same priority level. This means that it is possible to have a nightring tone Nightringtones and a normal ringtone playing at the same time. Operations Guide 931277B CyberData Corporation...

  • Page 65: Configure The Sensor Configuration Parameters

    Call an extension and play a pre-recorded audio file Note Calling a preset extension can be set up as a point-to-point call, but currently can't send delayed DTMF tones. 1. Click Sensor menu button to open the Sensor Configuration Page (Figure 2-33). Operations Guide 931277B CyberData Corporation...
  • Page 66 Singlewire InformaCast Loudspeaker Amplifier (PoE) Setup Configure the Sensor Configuration Parameters Figure 2-33. Sensor Configuration Page Operations Guide 931277B CyberData Corporation...
  • Page 67 OFF for 350ms during the duration of the event. Slow Fade Strobe will increase in brightness from 0 to the specified brightness and back to 0 over the course of about 3.5 seconds during the duration of the event. Operations Guide 931277B CyberData Corporation...
  • Page 68 Move the mouse pointer to hover over a question mark to see a short description of a specific web page item. Note You must click on the Save button for the changes to take effect. Operations Guide 931277B CyberData Corporation...

  • Page 69: Configure The Audio Configuration Parameters

    The Audiofiles page is used to add custom audio to the board. User uploaded audio will take precedence over the audio files shipped with the device. 1. Click on the Audiofiles menu button to open the Audiofiles page (Figure 2-34). Figure 2-34. Audiofiles Page Operations Guide 931277B CyberData Corporation...
  • Page 70 '0' corresponds to the spoken word “zero.” '1' corresponds to the spoken word “one.” '2' corresponds to the spoken word “two.” '3' corresponds to the spoken word “three.” '4' corresponds to the spoken word “four.” Operations Guide 931277B CyberData Corporation...
  • Page 71 '9' corresponds to the spoken word “nine.” Corresponds to the spoken word “dot.” (24 character limit) Audio Test Corresponds to the message “This is the CyberData IP speaker test message...” (24 character limit) Enter Code Corresponds to the message “Enter Code” (24 character limit).
  • Page 72 RIFF (little-endian) data, WAVE audio, Microsoft PCM, 16 bit, mono 8000 Hz You can use the free utility Audacity to convert audio files into this format. See Figure 2-36 through Figure 2-38. Figure 2-36. Audacity 1 Figure 2-37. Audacity 2 Operations Guide 931277B CyberData Corporation...
  • Page 73 Configure the Audio Configuration Parameters When you export an audio file with Audacity, save the output as: • WAV (Microsoft) signed 16 bit PCM. Figure 2-38. WAV (Microsoft) signed 16 bit PCM WAV (Microsoft) signed 16 bit PCM Operations Guide 931277B CyberData Corporation...

  • Page 74: Configure The Events Parameters

    The Events page specifies a remote server that can be used to receive HTTP POST events when actions take place on the board. 1. Click on the Events menu button to open the Events page (Figure 2-39). Figure 2-39. Event Configuration Page Operations Guide 931277B CyberData Corporation...
  • Page 75 HTTP POST events. Enter up to 127 characters. Click the Save button to save your configuration settings. Note: You need to reboot for changes to take effect. Click on the Reboot button to reboot the system. Operations Guide 931277B CyberData Corporation...
  • Page 76 Move the mouse pointer to hover over a question mark to see a short description of a specific web page item. Note You must click on the Save button and then the Reboot button for the changes to take effect. Operations Guide 931277B CyberData Corporation...
  • Page 77 Here are example packets for every event: POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 197 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData Device' MAC='0020f70015b6'> <event>POWERON</event> </cyberdata> POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 199 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?>...
  • Page 78 Singlewire InformaCast Loudspeaker Amplifier (PoE) Setup Configure the Events Parameters User-Agent: CyberData/1.0.0 Content-Length: 205 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData Device' MAC='0020f70015b6'> <event>CALL_TERMINATED</event> </cyberdata> POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 197 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData Device' MAC='0020f70015b6'>...
  • Page 79 Singlewire InformaCast Loudspeaker Amplifier (PoE) Setup Configure the Events Parameters User-Agent: CyberData/1.0.0 Content-Length: 234 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData Device' MAC='0020f70015b6'> <event>RELAY_DEACTIVATED</event> </cyberdata> POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 234 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData Device' MAC='0020f70015b6'>...

  • Page 80: Configure The Autoprovisioning Parameters

    Values found in this file will override values stored in on-board memory. Note By default, the device will try to set up its configuration with autoprovisioning. 1. Click the Autoprov menu button to open the Autoprovisioning page. See Figure 2-40. Figure 2-40. Autoprovisioning Page Operations Guide 931277B CyberData Corporation...
  • Page 81 Set Time with NTP Server on boot setting on the Device Configuration Page page (see Table 2-10). Click the Save button to save your configuration settings. Note: You need to reboot for changes to take effect. Operations Guide 931277B CyberData Corporation...
  • Page 82 3. Option 150 - an IP address to a tftp server 4. Option 66 - an IP address to a tftp server or if the entry starts with 'http', a FQDN to a http server. Operations Guide 931277B CyberData Corporation...
  • Page 83 Autoprovisioning files can contain the whole configuration or a subset of this file. The first autoprovisioning file can also contain links to other autoprovisioning files. The <MiscSettings> section contains some examples of additional autoprovisioning files: <MiscSettings> <DeviceName>CyberData Device</DeviceName> <!-- <AutoprovFile>common.xml</AutoprovFile>--> <!-- <AutoprovFile>sip_reg[macaddress].xml</AutoprovFile>-->...
  • Page 84 When one of these options is set, the Files after Boot device will download its autoprovisioning files again, and if it finds any differences from the files it downloaded on boot, it will force a reboot and reconfigure. Operations Guide 931277B CyberData Corporation...
  • Page 85 The autoprovisioning filename is set to “cyberdata/” On boot, the device will try to download: https://www.example.com/cyberdata/0020f7123456.xml ...and if this fails: https://www.example.com/cyberdata/000000cd.xml Audio files and firmware files will also add “cyberdata” to the URL before downloading. Operations Guide 931277B CyberData Corporation...
  • Page 86 In this way, a generic autoprovisioning file can specify unique firmware for a range of products. The list of valid product strings: <ProductString>CallButton31</ProductString> <ProductString>EmergencyIntercom31</ProductString> <ProductString>EmergencyIntercom31SW</ProductString> <ProductString>IndoorIntercom31</ProductString> <ProductString>IndoorIntercom31SW</ProductString> <ProductString>IndoorKeypad31</ProductString> <ProductString>IndoorKeypad31SW</ProductString> <ProductString>OfficeRinger31</ProductString> <ProductString>OfficeRinger31SW</ProductString> <ProductString>OutdoorIntercom31</ProductString> <ProductString>OutdoorIntercom31SW</ProductString> <ProductString>OutdoorKeypad31</ProductString> <ProductString>OutdoorKeypad31SW</ProductString> <ProductString>Strobe31</ProductString> <ProductString>Strobe31SW</ProductString> Operations Guide 931277B CyberData Corporation...
  • Page 87 000000cd.xml. This file exists, and Device1 parses the three elements. 1. Device1 changes its device name to CyberData Autoprovisioned. 2. Device1 finds an AutoprovFile element containing the filename sip_common.xml. The device downloads sip_common.xml from “https://autoprovtest.server.net,”...
  • Page 88 TFTP server at 10.0.1.3. and imports these settings. The device name is set to CyberData Autoprovisioned, the SIP server is set to 10.0.0.253, and the port is set to 5060. Device2 does the same except it downloads 0020f7020002.xml on boot and imports these values instead.
  • Page 89 You can force a change to the audio files on the board by clicking Restore Default on the Audio Configuration page or by changing the autoprovisioning file with “default” set as the file name. Operations Guide 931277B CyberData Corporation...
  • Page 90 "http://test.cyberdata.net"; # OPTION 66 option option-150 10.0.0.252; # OPTION 150 # These two lines are needed for option 43 vendor-option-space VendorInfo; # OPTION 43 option VendorInfo.text "http://test.cyberdata.net"; # OPTION 43 range 10.10.0.1 10.10.2.1; } Operations Guide 931277B CyberData Corporation...
  • Page 91 4. At this point, you can open and edit the autoprovisioning template to change the configuration settings in the template for the unit. 5. You can then upload the autoprovisioning file to a TFTP or HTTP server where the file can be loaded onto other devices. Operations Guide 931277B CyberData Corporation...

  • Page 92: Downloading The Firmware

    4. Click on the Firmware menu button to open the Firmware page. See Figure 2-42. Caution Equipment Hazard: CyberData strongly recommends that you first reboot the device before attempting to upgrade the firmware of the device. See Section 2.4.2, "Reboot the Device".
  • Page 93 Shows the current firmware version. Use the Browse button to navigate to the location of the firmware file that you want to upload. Click on the Upload button to automatically upload the selected firmware and reboot the system. Operations Guide 931277B CyberData Corporation...

  • Page 94: Reboot The Device

    Section 2.3.4, "Log in to the Configuration Home Page". 1. Click on the Reboot button on the Home page (Figure 2-43). A normal restart will occur. Figure 2-43. Home Page 407100001 v11.6.3 Reboot Operations Guide 931277B CyberData Corporation...

  • Page 95: Command Interface Post Commands

    --user admin --password admin --auth-no-challenge --no- check-certificate --quiet -O /dev/null "https://10.0.3.71/cgi- bin/audiofiles.cgi" --post-data "play_3=yes" Play the "4" audio file wget --user admin --password admin --auth-no-challenge --no- check-certificate --quiet -O /dev/null "https://10.0.3.71/cgi- bin/audiofiles.cgi" --post-data "play_4=yes" Operations Guide 931277B CyberData Corporation...
  • Page 96 --user admin --password admin --auth-no-challenge --no- check-certificate --quiet -O /dev/null "https://10.0.3.71/cgi- bin/audiofiles.cgi" --post-data "delete_0=yes" Delete the "1" audio file wget --user admin --password admin --auth-no-challenge --no- check-certificate --quiet -O /dev/null "https://10.0.3.71/cgi- bin/audiofiles.cgi" --post-data "delete_1=yes" Operations Guide 931277B CyberData Corporation...
  • Page 97 --user admin --password admin --auth-no-challenge --no- check-certificate --quiet -O /dev/null "https://10.0.3.71/cgi- bin/audiofiles.cgi" --post-data "delete_ringtone=yes" Delete the "Night Ring" audio file wget --user admin --password admin --auth-no-challenge --no- check-certificate --quiet -O /dev/null "https://10.0.3.71/cgi- bin/audiofiles.cgi" --post-data "delete_nightring=yes" Operations Guide 931277B CyberData Corporation...
  • Page 98 HTTP Post Command Trigger the Sensor Test (Sensor Config page) wget --user admin --password admin --auth-no-challenge --no- check-certificate --quiet -O /dev/null "https://10.0.3.71/cgi- bin/sensor.cgi" --post-data "test=yes" a.Type and enter all of each http POST command on one line. Operations Guide 931277B CyberData Corporation...

  • Page 99: Appendix A Mounting The Amplifier

    Mounting it on the external part of a building will require additional hardware for weatherproofing, cabling access, and lightning suppression. Consult a certified electrician for details. Note For mounting, use the three #8 SHEET METAL SCREWS to secure the enclosure. Operations Guide 931277B CyberData Corporation...
  • Page 100 4. For wall mounting, use the three #8 x 1-1/4-inch Truss Head Phillip screws to secure the speaker. See Figure A-1. Figure A-1. Mounting the Enclosure 151147 #8x1.25" Truss Head Phillips Sheet Metal Screw (3x) 531032 Plastic Ribbed Anchor (3x) Operations Guide 931277B CyberData Corporation...

  • Page 101: Appendix B Setting Up A Tftp Server

    1. Install and start the software. 2. Select File Configure Security tab Transmit Only. 3. Make a note of the default directory name, and then move the firmware files to be uploaded to that directory. Operations Guide 931277B CyberData Corporation...

  • Page 102: Appendix C Troubleshooting/Technical Support

    To see a list of frequently asked questions for your product, click on the FAQs tab at the following webpage: http://www.cyberdata.net/voip/011407/ C.2 Documentation The documentation for this product is released in an English language version only. To download PDF copies of CyberData product documentation, click on the Downloads tab at the following webpage: http://www.cyberdata.net/voip/011407/ Operations Guide 931277B...

  • Page 103: Contact Information

    Support form at the following website: http://support.cyberdata.net/ The Support Form initiates a ticket which CyberData uses for tracking customer requests. Most importantly, the Support Form tells us which PBX system and software version that you are using, the make and model of the switch, and other important information. This information is essential for troubleshooting.
