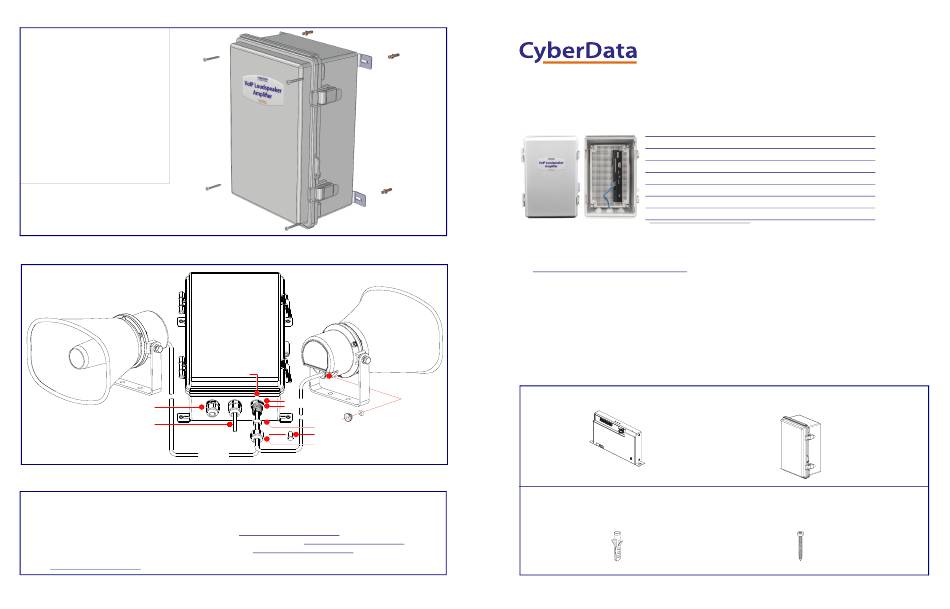

CyberData 011405 Installation Quick Reference

Mounting the Enclosure
To mount the enclosure:
1. Prepare holes for the screws.
2. Plug in the power adapter and use
the Power (PWR) LED to verify that
the power is on.
3. Plug the ethernet cable into the
device. The Link/Activity (Link/
Act.) LED verifies the network
connection.
4. For wall mounting, use the three
#8 x 1-1/4-inch Pan Head Phillips
Self-Tapping Screws.
IP66 Weatherproofing
IP66
Analog Horn Speaker
(Optional Secondary Horn)
Cable Gland (CG)
Network Cable to
Paging Amplifier
Contacting CyberData
Corporate Headquarters
CyberData Corporation
Sales: 831-373-2601 ext. 334
3 Justin Court
Support: 831-373-2601 ext. 333
Monterey, CA 93940, USA
Support Website:
RMA Department Contact and Status:
Phone: 831-373-2601
Warranty Information:
Fax: 831-373-4193
https://www.cyberdata.net/
© 2023, CyberData Corporation, ALL RIGHTS RESERVED
IP66 Enclosure
CG Hex Locknut
on the Inside
CG Sealing Washer
CG Connector
Cord Grip & O-Ring
CG Sealing Grommet
CG Hole Plug
CG End Cap
Speaker Cable
https://support.cyberdata.net/
https://support.cyberdata.net/
https://support.cyberdata.net/
931979A
The IP Endpoint Company
Getting Started
• Download the Operations Guide PDF file from the Documents tab at the following webpage:
https://www.cyberdata.net/products/011405
• Create a plan for the locations of your paging amplifiers.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the
installation instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
IP66
Analog Horn Speaker
• WARNING: The SIP Loudspeaker Amplifier enclosure is not rated for any AC voltages!
(Primary)
Parts
(1) Wall Mounting Kit
Quick Reference
Quick Reference

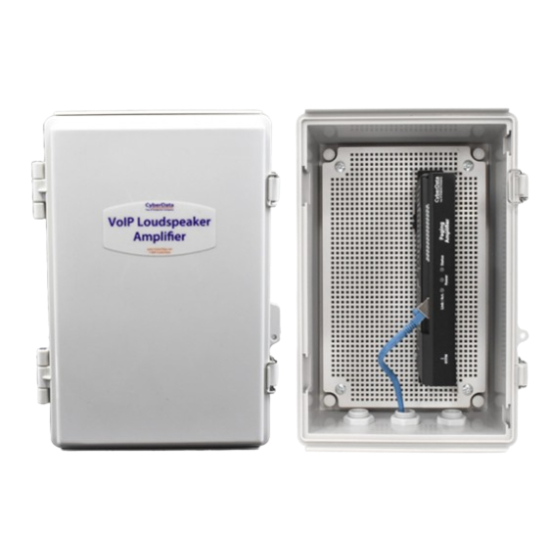

Installation Quick Reference
SIP Loudspeaker Amplifier
(PoE)
011405
Parameter
IP Addressing
a
IP Address
Web Access Username
Web Access Password
a
Subnet Mask
a
Default Gateway
a. Default if there is not a DHCP server present.
(1) Assembly
(4) #8 Plastic Anchors (4) #8 x 1-1/4" Pan Head Phillips Self-Tapping Screws
931979A
Factory Default Setting
DHCP
192.168.1.23
admin
admin
255.255.255.0
192.168.1.1
(1) Enclosure
© 2023, CyberData Corporation, ALL RIGHTS RESERVED
