2.2.4 Installing the InformaCast Enabled Loudspeaker Amplifier (PoE)
Install the InformaCast Enabled Loudspeaker Amplifier (PoE) as shown in

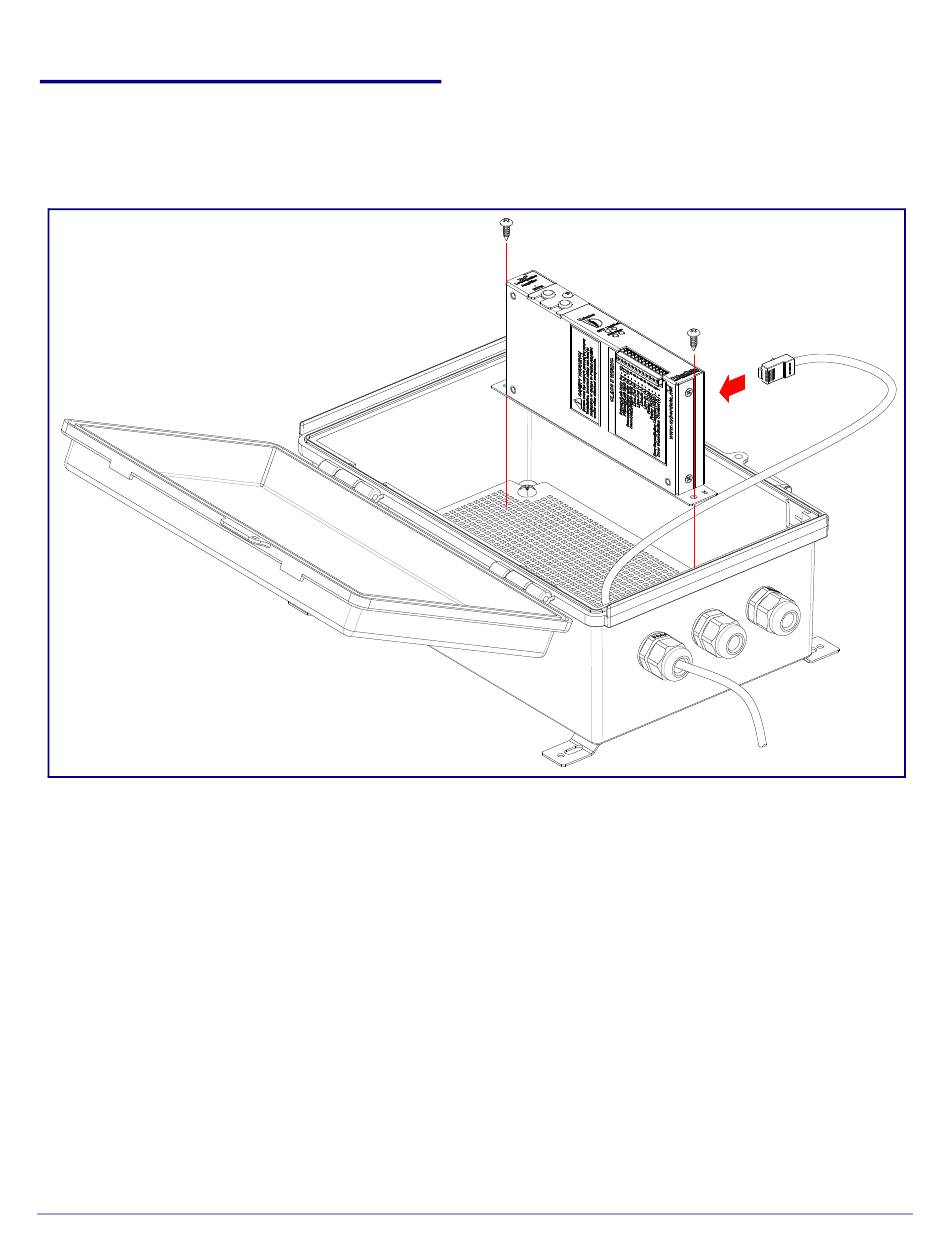

Figure 2-4. Installing the InformaCast Enabled Loudspeaker Amplifier (PoE)
Operations Guide
Installing the InformaCast Enabled Loudspeaker Amplifier (PoE)
InformaCast Enabled Loudspeaker Amplifier (PoE) Setup
Paging Amplifier
Mounting Screw
Paging Amplifier
931277I
Figure
2-4.
Network Cable
to Network Port
Network Cable
through Cable Gland
CyberData Corporation
15
