High Power Mode The following figure illustrate how to connect the InformaCast Enabled Loudspeaker Amplifier (PoE)
(Two Speakers)
and use the amplified outputs in high power mode to two speakers or horns.
Note: You can use an
802.3at compliance
switch or an 802.3at
power injector and hub.
802.3at Compliant
PoE Ethernet Switch
(sold separately)
or
802.3at PoE Injector
(high power mode)
(sold separately)
*Note: 16 gauge (AWG) wiring is recommended. 
If the speaker will be routed outside, then CyberData
suggests using CL2 or CL3 certified wiring.
Optional 2 Speaker Configuration
(802.3at mode)
8 Ohms
2 speakers in parallel (4 Ohm total)
011471 IP66 Analog Horn
(sold separately)
Operations Guide

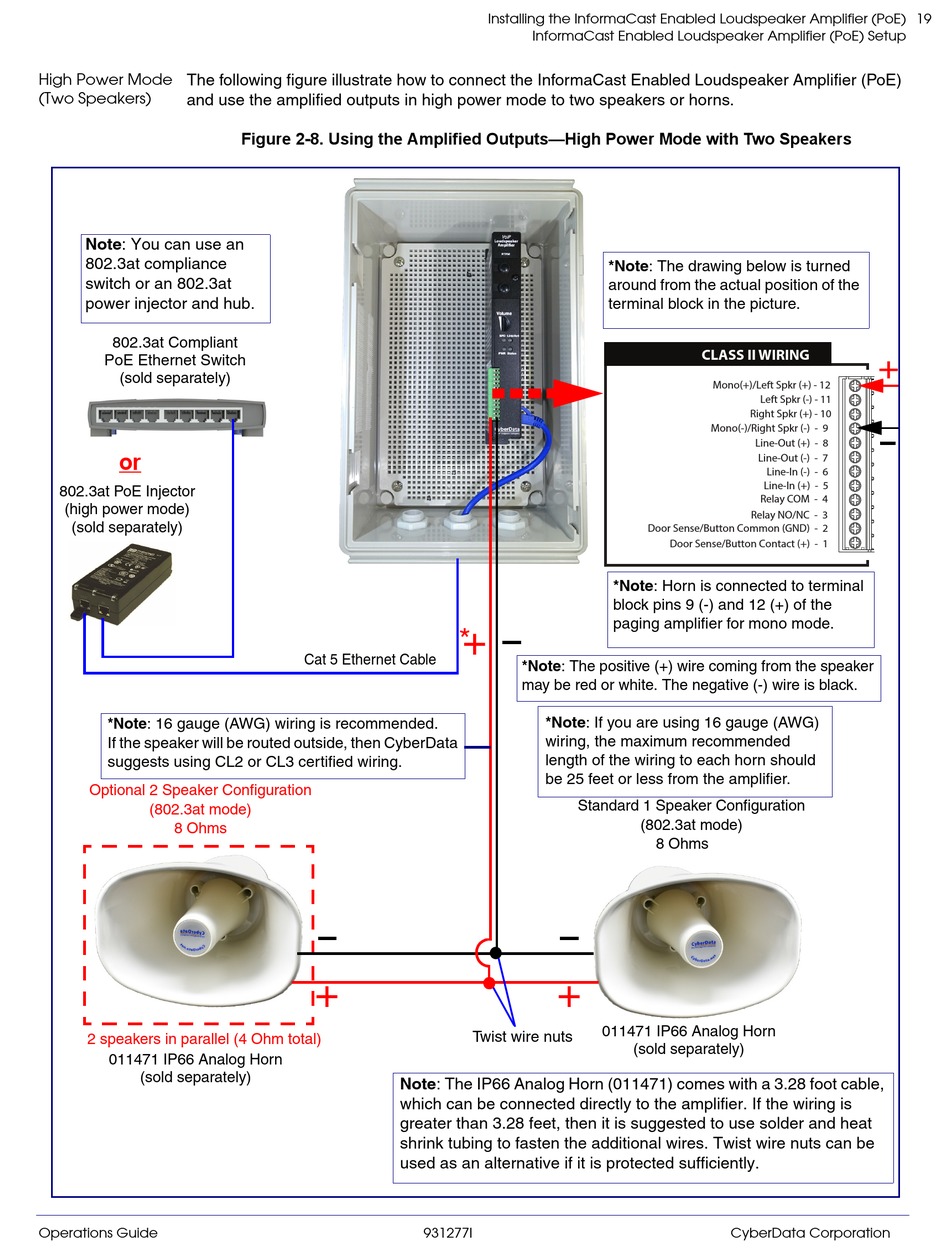

Figure 2-8. Using the Amplified Outputs—High Power Mode with Two Speakers
Cat 5 Ethernet Cable
+
Note: The IP66 Analog Horn (011471) comes with a 3.28 foot cable,
which can be connected directly to the amplifier. If the wiring is
greater than 3.28 feet, then it is suggested to use solder and heat
shrink tubing to fasten the additional wires. Twist wire nuts can be
used as an alternative if it is protected sufficiently.
Installing the InformaCast Enabled Loudspeaker Amplifier (PoE)
InformaCast Enabled Loudspeaker Amplifier (PoE) Setup
+
*
*Note: The positive (+) wire coming from the speaker
may be red or white. The negative (-) wire is black.
*Note: If you are using 16 gauge (AWG)
wiring, the maximum recommended
length of the wiring to each horn should
be 25 feet or less from the amplifier.
Standard 1 Speaker Configuration
+
011471 IP66 Analog Horn
Twist wire nuts
931277I
*Note: The drawing below is turned
around from the actual position of the
terminal block in the picture.
CLASS II WIRING
Mono(+)/Left Spkr (+) - 12
Left Spkr (-) - 11
Right Spkr (+) - 10
Mono(-)/Right Spkr (-) - 9
Line-Out (+) - 8
Line-Out (-) - 7
Line-In (-) - 6
Line-In (+) - 5
Relay COM - 4
Relay NO/NC - 3
Door Sense/Button Common (GND) - 2
Door Sense/Button Contact (+) - 1
*Note: Horn is connected to terminal
block pins 9 (-) and 12 (+) of the
paging amplifier for mono mode.
(802.3at mode)
8 Ohms
(sold separately)
