CyberData 011403 Operation Manual

Informacast enabled paging amplifier
Hide thumbs Also See for 011403:
Table of Contents

Advertisement

Quick Links

Download this manual
The IP Endpoint Company
InformaCast Enabled
Paging Amplifier

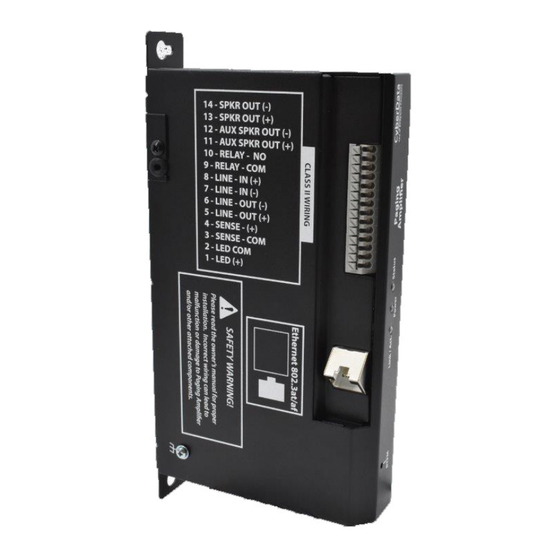

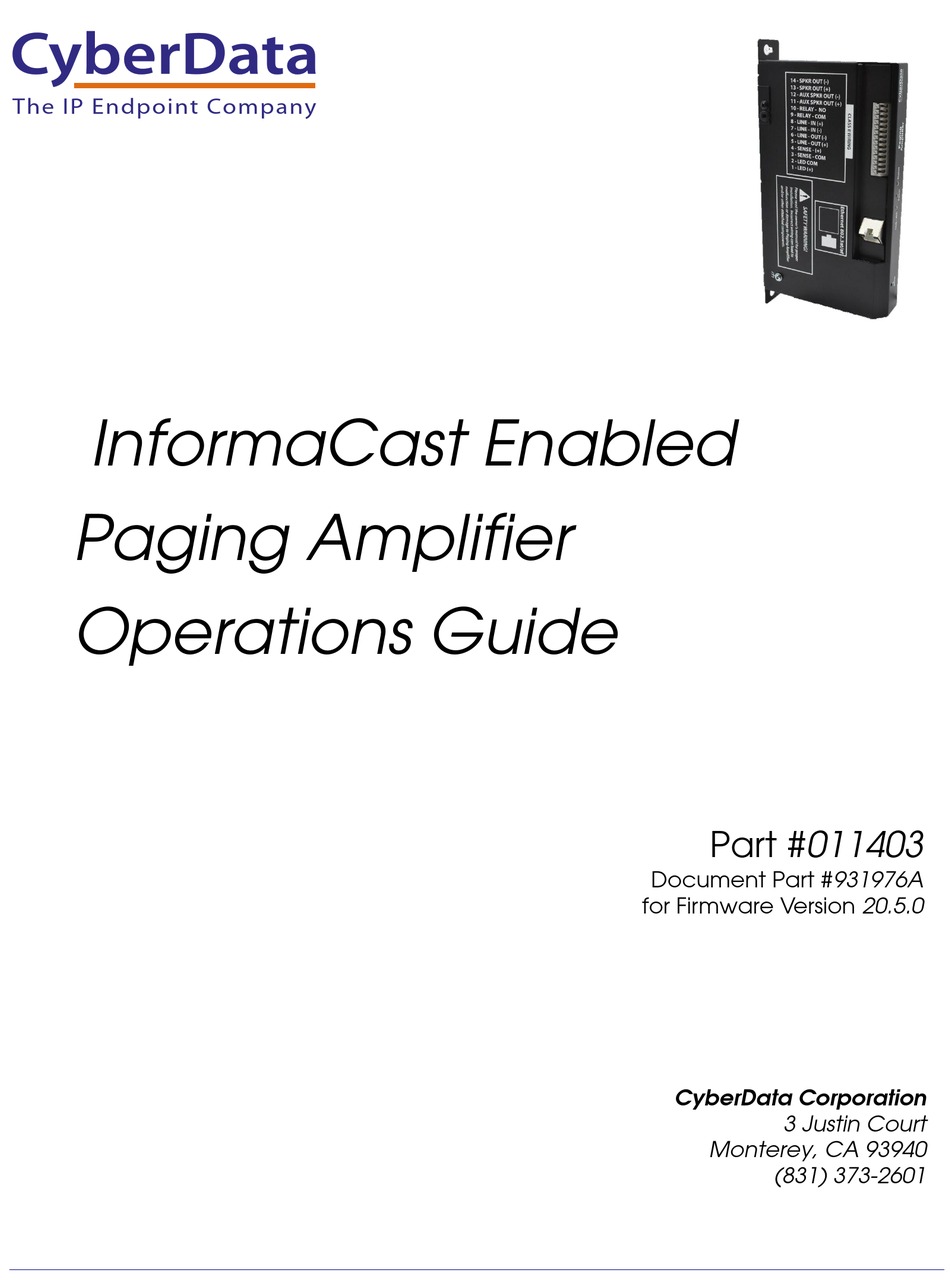

Operations Guide
Part #011403
Document Part #931976A
for Firmware Version 20.5.0
CyberData Corporation
3 Justin Court
Monterey, CA 93940
(831) 373-2601
