High Power Mode The following figure illustrate how to connect the InformaCast Enabled Loudspeaker Amplifier (PoE)
(One Speaker)
and use the amplified outputs in high power mode to one speaker or horn.
Note: You can use an
802.3at compliance
switch or an 802.3at
power injector and hub.
802.3at Compliant
PoE Ethernet Switch
(sold separately)
or
802.3at PoE Injector
(high power mode)
(sold separately)
Cat 5 Ethernet Cable
*Note: The positive (+) wire coming from the speaker
may be red or white. The negative (-) wire is black.
*Note: 16 gauge (AWG) wiring is recommended. 
If the speaker will be routed outside, then CyberData
suggests using CL2 or CL3 certified wiring.
Note: The IP66 Analog Horn (011471) comes with a
3.28 foot cable, which can be connected directly to the
amplifier. If the wiring is greater than 3.28 feet, then it
is suggested to use solder and heat shrink tubing to
fasten the additional wires. Twist wire nuts can be
used as an alternative if it is protected sufficiently.
Operations Guide

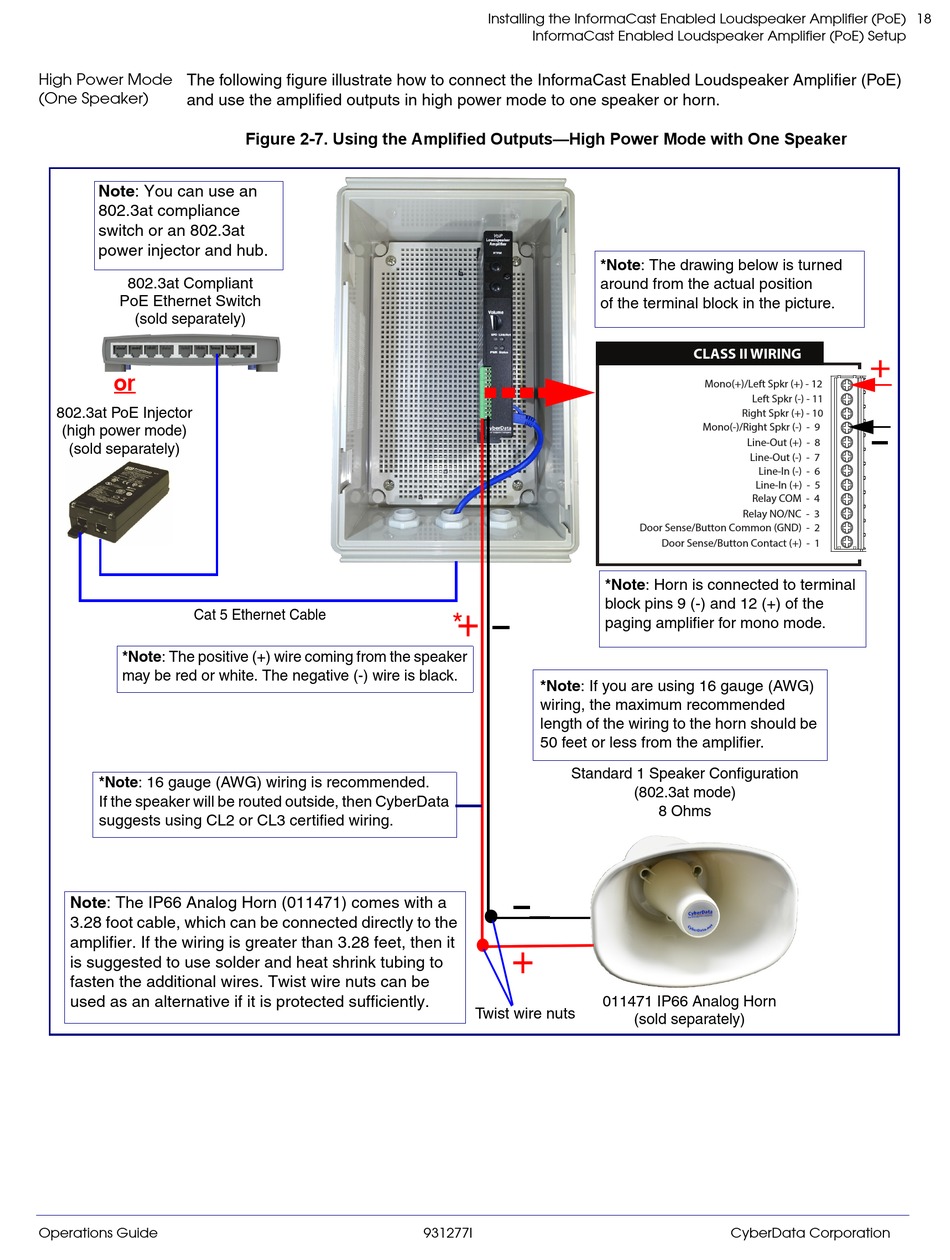

Figure 2-7. Using the Amplified Outputs—High Power Mode with One Speaker
931277I
Installing the InformaCast Enabled Loudspeaker Amplifier (PoE)
InformaCast Enabled Loudspeaker Amplifier (PoE) Setup
*Note: The drawing below is turned
around from the actual position 
of the terminal block in the picture.
*Note: Horn is connected to terminal
block pins 9 (-) and 12 (+) of the
+
*
paging amplifier for mono mode.
*Note: If you are using 16 gauge (AWG)
wiring, the maximum recommended
length of the wiring to the horn should be
50 feet or less from the amplifier.
Standard 1 Speaker Configuration
+
011471 IP66 Analog Horn
Twist wire nuts
CLASS II WIRING
Mono(+)/Left Spkr (+) - 12
Left Spkr (-) - 11
Right Spkr (+) - 10
Mono(-)/Right Spkr (-) - 9
Line-Out (+) - 8
Line-Out (-) - 7
Line-In (-) - 6
Line-In (+) - 5
Relay COM - 4
Relay NO/NC - 3
Door Sense/Button Common (GND) - 2
Door Sense/Button Contact (+) - 1
(802.3at mode)
8 Ohms
(sold separately)
