2.2.16 Ethernet Connection

See
Connection
Ethernet
connection.

2.2.17 Loudspeaker Type

Using the amplified output, the CyberData InformaCast Enabled Loudspeaker Amplifier (AC-
Powered) supports the 011471 Horn or equivalent unamplified loudspeaker.

2.2.18 Cabling/Wiring

Using the amplified output, you may connect a 011471 loudspeaker or equivalent unamplified
speaker to a InformaCast Enabled Loudspeaker Amplifier (AC-Powered) with good quality speaker
wire that is 16 gauge and limited to 25 feet in length with two loudspeakers or 50 feet in length with
one loudspeaker.
Operations Guide
Table 2-6 for details about the InformaCast Enabled Loudspeaker Amplifier (AC-Powered)
Table 2-6. InformaCast Enabled Loudspeaker Amplifier (AC-Powered) Connection
Connection Details
Use a RJ 45 cable.

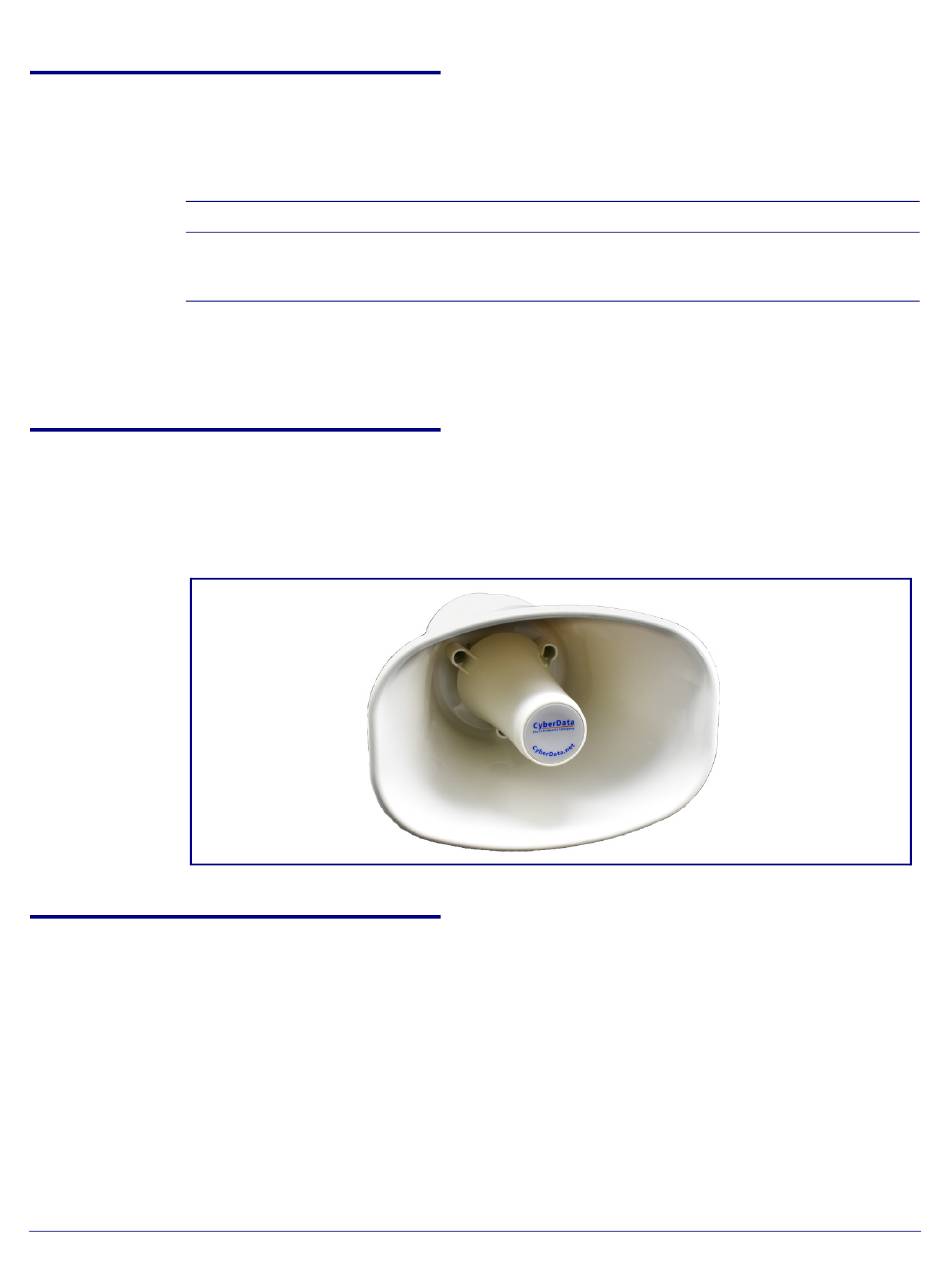

Figure 2-24. 011471 Horn
931281I
Location
InformaCast Enabled
Loudspeaker Amplifier (AC-
Powered)
