CyberData 011405 Installation Quick Reference

Mounting the Enclosure
To mount the enclosure:
1. Prepare holes for the screws.
2. Plug in the power adapter and use
the Power (PWR) LED to verify that
the power is on.
3. Plug the ethernet cable into the
device. The Link/Activity (Link/
Act.) LED verifies the network
connection.
4. For wall mounting, use the three
#8 x 1-1/4-inch Pan Head Phillips
Self-Tapping Screws.
Contacting CyberData
Corporate Headquarters
Sales: (831) 373-2601 ext. 334
CyberData Corporation
Support: 831-373-2601 ext. 333
3 Justin Court
Support Website:
Monterey, CA 93940, USA
RMA Department: (831) 373-2601 ext. 136
Phone: 831-373-2601 RMA Email: RMA@CyberData.net
Fax: 831-373-4193 RMA Status:
http://www.cyberdata.net/ Warranty Information:
© 2018, CyberData Corporation, ALL RIGHTS RESERVED
http://support.cyberdata.net/
http://support.cyberdata.net/
http://support.cyberdata.net/
931234E
The IP Endpoint Company
Getting Started
• Download the Operations Guide PDF file from the Documents tab at the following webpage:
https://www.cyberdata.net/products/011405
• Create a plan for the locations of your paging amplifiers.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the
installation instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: The SIP Loudspeaker Amplifier enclosure is not rated for any AC voltages!
Parts
(1) Wall Mounting Kit
Quick Reference
Quick Reference
Installation Quick Reference

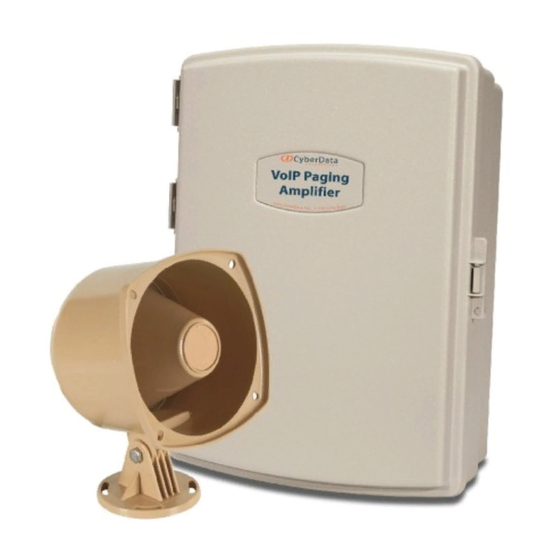

SIP Loudspeaker Amplifier
(PoE)
SIP Compliant
011405
Parameter Factory Default Setting
IP Addressing DHCP
a
IP Address 10.10.10.10
Web Access Username admin
Web Access Password admin
a
Subnet Mask 255.0.0.0
a
Default Gateway 10.0.0.1
a. Default if there is not a DHCP server present.
(1) Assembly
(4) #8 Plastic Anchors (4) #8 x 1-1/4" Pan Head Phillips Self-Tapping Screws
931234E
(1) Enclosure
© 2018, CyberData Corporation, ALL RIGHTS RESERVED
