CyberData 011406 Installation Quick Reference

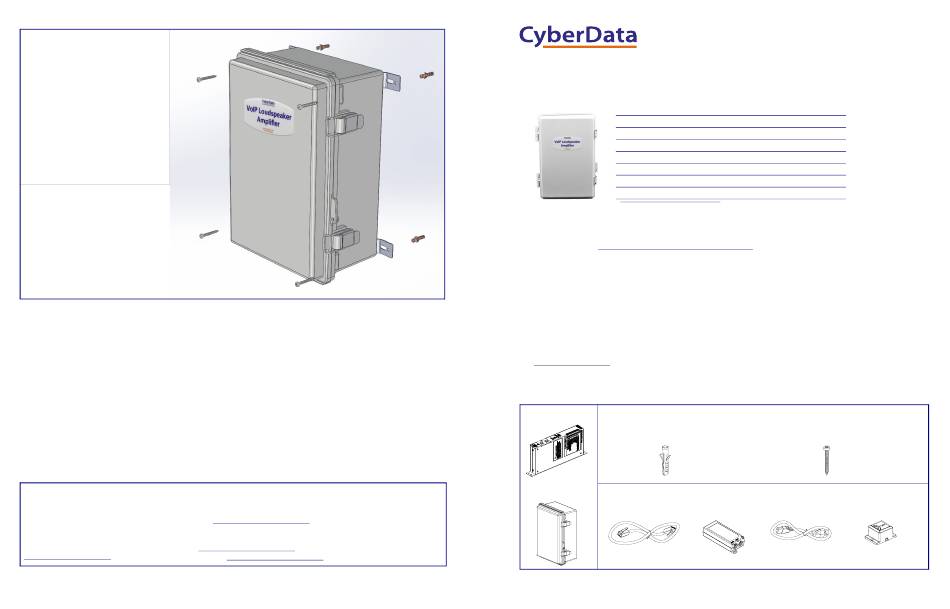

Mounting the Enclosure
To mount the enclosure:
1. Prepare holes for the screws.
2. Plug in the power adapter and use
the Power (PWR) LED to verify that
the power is on.
3. Plug the ethernet cable into the
device. The Link/Activity (Link/
Act.) LED verifies the network
connection.
4. For wall mounting, use the three
#8 x 1-1/4-inch Pan Head Phillips
Self-Tapping Screws.
Contacting CyberData
Corporate Headquarters
Sales: (831) 373-2601 ext. 334
CyberData Corporation
Support: 831-373-2601 ext. 333
3 Justin Court
Support Website:
Monterey, CA 93940, USA
RMA Department: (831) 373-2601 ext. 136
Phone: 831-373-2601 RMA Email: RMA@CyberData.net
Fax: 831-373-4193 RMA Status:
http://www.cyberdata.net/ Warranty Information:
© 2019, CyberData Corporation, ALL RIGHTS RESERVED
http://support.cyberdata.net/
http://support.cyberdata.net/
http://support.cyberdata.net/
931279E Quick Reference
Installation Quick Reference

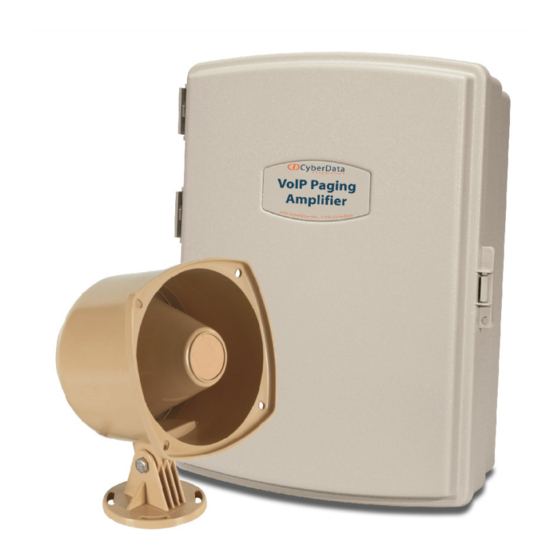

InformaCast Enabled Loudspeaker
The IP Endpoint Company
Amplifier (AC-Powered)
SIP Compliant
011406
Parameter
IP Addressing
a
IP Address
Web Access Username
Web Access Password
a
Subnet Mask
a
Default Gateway
a. Default if there is not a DHCP server present.
Getting Started
• Download the InformaCast Enabled Loudspeaker Amplifier Operations Guide PDF file from the Documents tab at the
following webpage: https://www.cyberdata.net/products/011406
• Create a plan for the locations of your paging amplifiers.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the
installation instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: The InformaCast Enabled Loudspeaker Amplifier enclosure is not rated for any AC voltages!
Wiring the 125V AC Plug
The green wire with the yellow stripe is a ground connection for electrostatic discharge (ESD) protection,
and should not be removed.
To wire the 125V AC plug, consult a licensed electrician and the local building codes in your area.
Parts
(1) Assembly (1) Wall Mounting Kit
(4) #8 Plastic Anchors
(1) Enclosure
Additional Parts
(1) CAT 5e/CAT6 cable (1) PoE Power Injector
Quick Reference
Factory Default Setting
DHCP
10.10.10.10
admin
admin
255.0.0.0
10.0.0.1
(4) #8 x 1-1/4" Pan Head Phillips Self-Tapping Screws
(1) IEC Power Cord (1) Universal Receptacle
931279E © 2019, CyberData Corporation, ALL RIGHTS RESERVED
