CyberData 011407 Installation Quick Reference

Mounting the Enclosure
To mount the enclosure:
1. Prepare holes for the screws.
2. Plug in the power adapter and use
the Power (PWR) LED to verify that
the power is on.
3. Plug the ethernet cable into the
device. The Link/Activity (Link/
Act.) LED verifies the network
connection.
4. For wall mounting, use the three
#8 x 1-1/4-inch Pan Head Phillips
Self-Tapping Screws.
Contacting CyberData
Corporate Headquarters
Sales: (831) 373-2601 ext. 334
CyberData Corporation
Support: 831-373-2601 ext. 333
3 Justin Court
Support Website:
Monterey, CA 93940, USA
RMA Department: (831) 373-2601 ext. 136
Phone: 831-373-2601 RMA Email: RMA@CyberData.net
Fax: 831-373-4193 RMA Status:
http://www.cyberdata.net/ Warranty Information:
© 2019, CyberData Corporation, ALL RIGHTS RESERVED
http://support.cyberdata.net/
http://support.cyberdata.net/
http://support.cyberdata.net/
931275E Quick Reference
Installation Quick Reference
InformaCast Enabled
The IP Endpoint Company

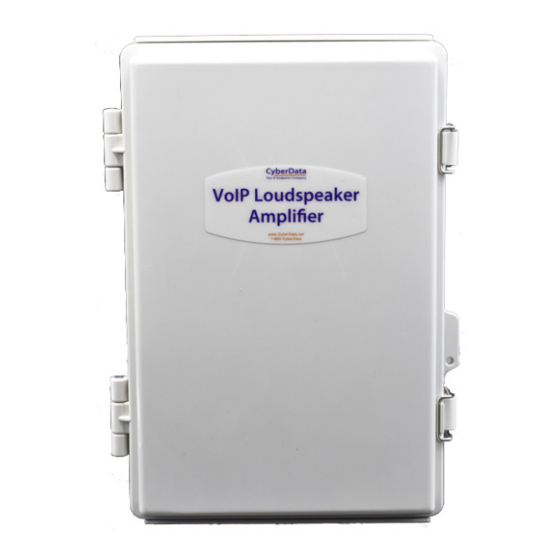

Loudspeaker Amplifier (PoE)
SIP Compliant
011407
Parameter
IP Addressing
a
IP Address
Web Access Username
Web Access Password
a
Subnet Mask
a
Default Gateway
a. Default if there is not a DHCP server present.
Getting Started
• Download the Operations Guide PDF file from the Documents tab at the following webpage:
https://www.cyberdata.net/products/011407
• Create a plan for the locations of your paging amplifiers.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the
installation instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: The InformaCast Enabled Loudspeaker Amplifier enclosure is not rated for any AC voltages!
Parts
(1) Assembly
(1) Wall Mounting Kit
(4) #8 Plastic Anchors
Quick Reference
Factory Default Setting
DHCP
10.10.10.10
admin
admin
255.0.0.0
10.0.0.1
(1) Enclosure
(4) #8 x 1-1/4" Pan Head Phillips Self-Tapping Screws
931275E © 2019, CyberData Corporation, ALL RIGHTS RESERVED
