2.2.6 Ethernet Connection

See
Connection
Ethernet

2.2.7 Loudspeaker Type

Using the amplified output, the CyberData SIP Paging Amplifier supports the 011471 IP66 Analog
Horn or equivalent unamplified loudspeaker.

2.2.8 Cabling/Wiring

Using the amplified output, you may connect a 011471 Horn or equivalent unamplified speaker to a
SIP Paging Amplifier with good quality speaker wire that is 16 gauge and limited to 25 feet in length
with two loudspeakers or 50 feet in length with one loudspeaker.
Operations Guide
Table 2-5
for details about the SIP Paging Amplifier connection.
Table 2-5. SIP Paging Amplifier Connection
Connection Details
Use a RJ 45 cable.

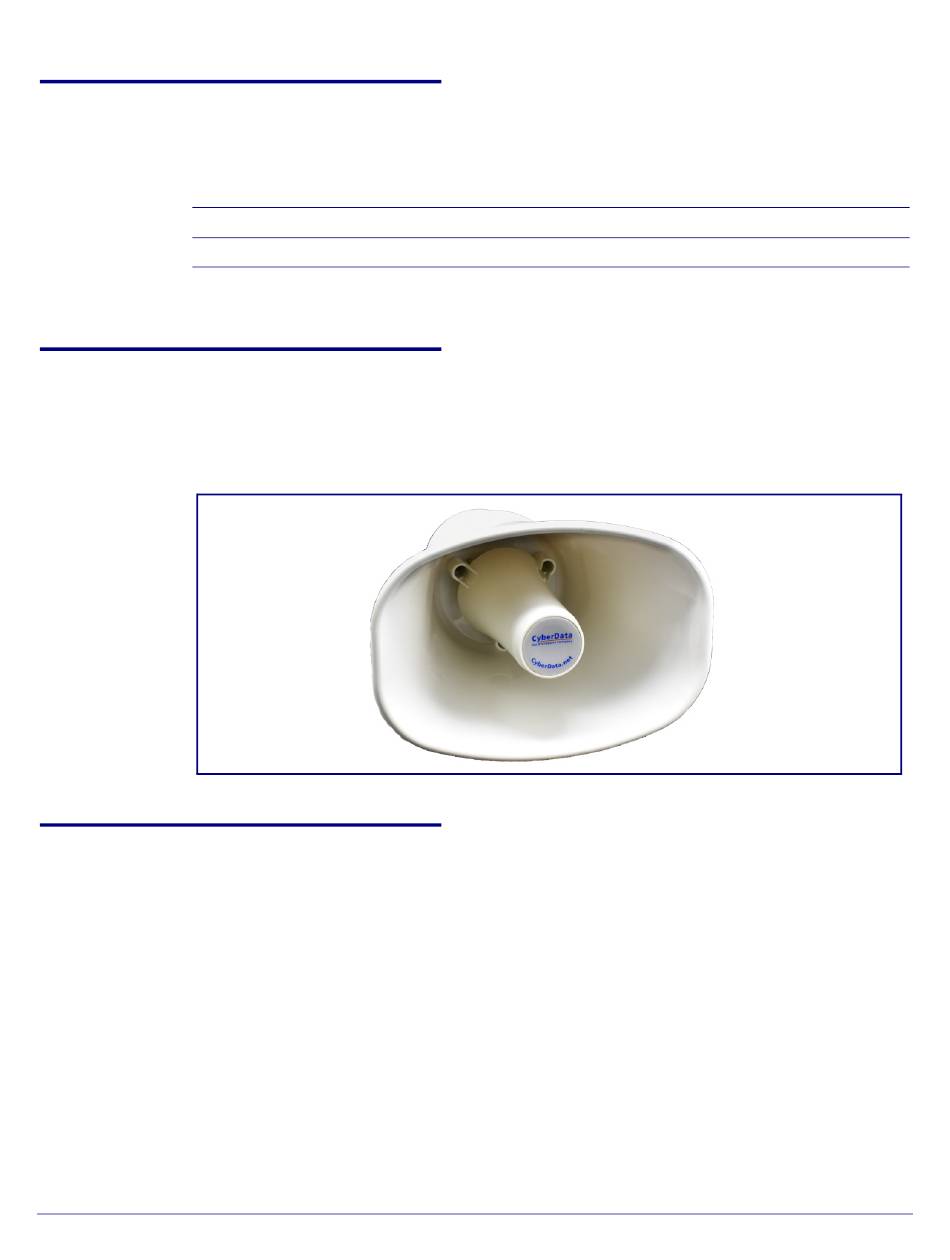

Figure 2-17. 011471 IP66 Analog Horn
931971A
Installing the SIP Paging Amplifier
SIP Paging Amplifier Setup
Location
SIP Paging Amplifier
CyberData Corporation
21
