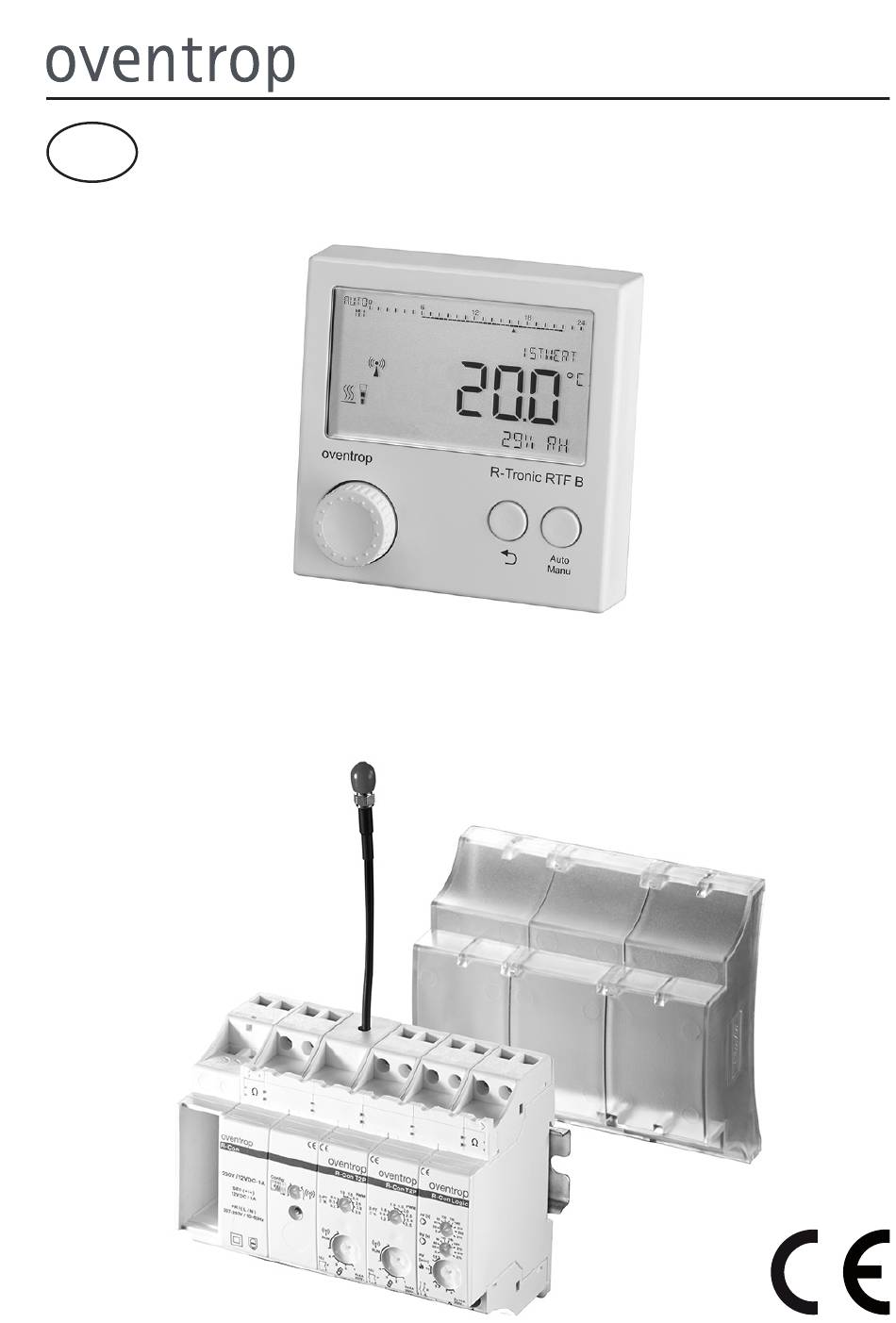

"R-Tronic RT B / RTF B / RTFC K"
EN
Wireless receiver "R-Con"
Installation and operating instructions
"R-Tronic"
Climate display device/control
